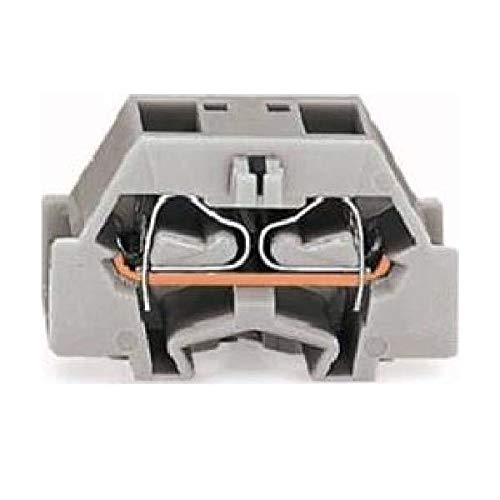

Gray Operating Tool Terminal with Mounting Flange

Condition: New
Brand: Wago
MPN: 261-331
MPN Xref:261-331, 261331, 1283505, WAGO 261-331, 29K0197, WAG261-331

This gray operating tool terminal is made of polyamide (PA66) material. It has a mounting flange and features side-entry wiring. The terminal has a total of 4 connection points and a rated current of 24 A. It is designed for use with solid conductors ranging from 0.08 to 2.5 mm² (28 to 14 AWG). The dimensions of the terminal are H18.1mm x W10mm x D28.1mm.

Country of Origin (subject to change)	Unknown
Actuation type	Operating tool
Color	gray
Connection technology	CAGE CLAMP?
Country of origin	CH
Depth	28.1 mm / 1.106 inches
Mounting type	Mounting flange
Rated current	24 A
Solid conductor	0.08 ? 2.5?mm??/ 28 ? 14?AWG
Total number of connection points	4
Weight	3.871
Width	10?mm?/ 0.394?inch
Wiring type	Side-entry wiring
Gross Weight	0 lbs
Catalog Number	261-331
Country of Origin	Switzerland
Made in USA	No
GTIN	4044918610643
Actuator	Operating tool
Conductor Material	Copper
Conductor Range	14-28 AWG Conductor Range
Connection	Terminals (Cage-clamp)
Current Rating	24 A
Material	Polyamide (PA66)
Mounting	Flange
RoHS Indicator	Yes
Item Type	Terminal
Dimensions	H18.1mm x W10mm x D28.1mm
Width UOM	Inch
Depth UOM	Inch
Weight UOM	Grams
Voltage Rating	500
Wiring Method	Screwless
Conforming wire	Single Wire / Stranded Wire / Flexible Stranded Wire / Flexible Stranded Wire (Ferrule Crimp) / Flexible Stranded Wire (End Bonding)
