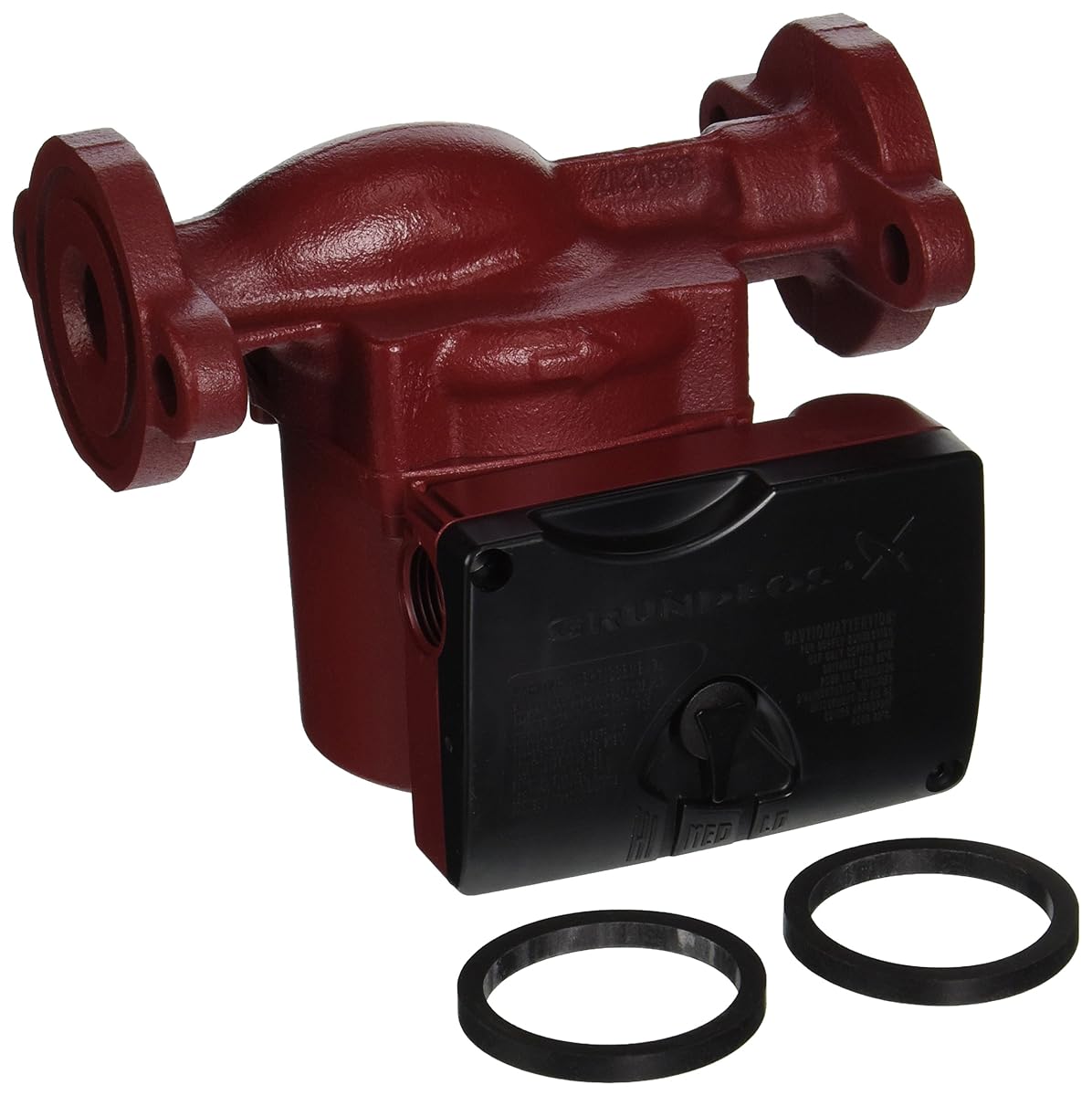

230 Volt 3 Phase Electrical Pump with 1/25 HP Motor

Condition: New
Brand: Grundfos
MPN: 59896180
MPN Xref:59896180

This electrical pump features a 3 phase motor with a size of 1/25 HP. It has a voltage of 230 Volts and a maximum temperature of 230 degrees. The pump is made of cast iron material and has a flow rate of 17.61 gpm. It is suitable for heating applications and has a discharge pressure of 10. The pump is UL Listed and comes with built-in motor protection.

Electrical Voltage	230 Volt
Pump Features	3 Phase
Motor Size	1/25 HP
Finish	No Finish Group
UPC	5700391413896
Weight	7.58 lbs.
Reference ID	5528910
Shipping	undefined (Fixed Shipping Cost)
Batteries Included?	No
Batteries Required?	No
Best Sellers Rank	#750,907 in Tools & Home Improvement
Color	Red, Black
Customer Reviews	5.0 out of 5 stars1 rating5.0 out of 5 stars
Date First Available	March 20, 2012
Item model number	59896180
Item Package Quantity	1
Item Weight	4 pounds
Material	Cast Iron
Part Number	59896180
Product Dimensions	10 x 10 x 10 inches
Size	10" x 10" x 10"
Voltage	230 Volts
Item Dimensions LxWxH	10 x 10 x 10 inches
Product with faster shipping	true
AMP	0.41
Blower Type	1 Speed
Collection	UPS
Depth	6-1/2 in
Discharge	1/2 in
Discharge Pressure	10
End Connection 1	Flanged
End Connection 2	Flanged
End Connections	Flanged
Energy Star Compliant	No
Fitting Size 1	1/2 in
Fitting Size 2	1/2 in
Fitting Sizes	1/2 in
Flow Rate	17.61 gpm
Height	5-1/4 in
Horsepower	1/25 hp
Impeller	Composite
Installation Type	In-line
Length	6-1/2 in
Maximum Feet of Head	15.5
Maximum Pressure	145 psi
Maximum Temperature	230
Minimum Temperature	35
Origin	Domestic
Phase	Single Phase
Power Source	Hardwired
Pump Application	Heating
Pump Body Material	Cast Iron
Pump Motor Type	Asynchronous Squirrel Cage
Pump Phase	1
Pump Stage	1
UL Listed	Yes
VAC at 60 Hz	230
Volts	230V
Watts	92
Width	5-17/50 in
Max ambient temperature (F)	104
Density (lb/ftBi)	61.35
Rated voltage	1 x 230 V
HP	0.04
Pipe connection	2-BOLT FLANGE
Temperature range (F)	35.6 - 230
Density	983.2 kg/m?
Product no	59896180
Speed no	3
Mains frequency	60 Hz
Pumped liquid	Water
Product name	UPS 15-42 F
Pump housing	Cast iron
Pressure rating for connection	PN 10
Rated head	2.667 m
Selected liquid temperature (?C)	60
Current in speed 3	0.41 A
Current in speed 2	0.19 A
Current in speed 1	0.14 A
Approvals	UL, CSA
Rated flow	2.05 m?/h
Insulation class (IEC 85)	F
Built-in motor protection	CONTACT
Amb. max at 80 dgr C liquid (?C)	80
Maximum operating pressure (bar)	10
Max. power input	92 W
Terminal box position	9H
Max flow	4 m?/h
Port-to-port length	166 mm
Thermal protec	Impedance protected
Number of poles	2
Power input in speed 2	40 W
Power input in speed 1	30 W
Maximum head	4.7 m
Liquid temperature range (?C)	2 - 110
Maximum ambient temperature (?C)	40
Capacitor size - run	2 ?F/400 V
Type of connection	OVAL
