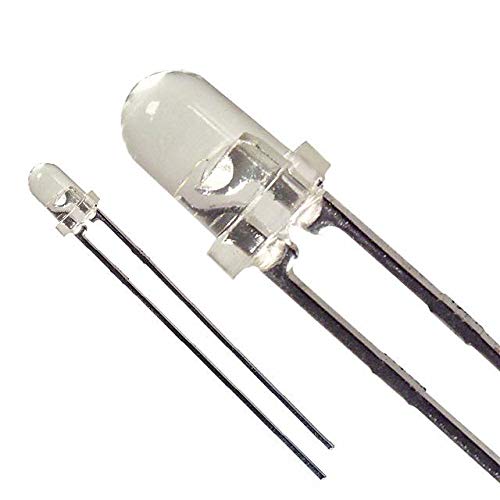

Infrared Emitter 940nm 3mm LED - LTE-4206
Infrared Emitter 940nm 3mm LED - LTE-4206
Regular price
$0.03 USD
Regular price
Sale price
$0.03 USD
Unit price
/
per
Shipping calculated at checkout.
54 in stock
Couldn't load pickup availability
Condition: New
Brand: Lite-On Inc.
MPN: LTE-4206
MPN Xref:LTE-4206, 859-LTE-4206, LTE4206, LION-0000066, 1995898, IR927, 160-1028-ND
This infrared emitter is a 3mm LED with a wavelength of 940nm. It has a forward voltage of 1.2V and a forward current of 60mA. The beam angle is 20 degrees and the radiant intensity is 4.06 mW/sr. It is ideal for applications requiring infrared illumination.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Lite-On Inc.
MPN: LTE-4206
MPN Xref:LTE-4206, 859-LTE-4206, LTE4206, LION-0000066, 1995898, IR927, 160-1028-ND
This infrared emitter is a 3mm LED with a wavelength of 940nm. It has a forward voltage of 1.2V and a forward current of 60mA. The beam angle is 20 degrees and the radiant intensity is 4.06 mW/sr. It is ideal for applications requiring infrared illumination.
| Manufacturer | LITEON |
| Type of diode | IR transmitter |
| LED diameter | 3mm |
| Wavelength | 940 nm |
| LED lens | transparent |
| Optical power | 1.383...7.67mW |
| Viewing angle | 20? |
| Mounting | THT |
| LED current | 20mA |
| Operating voltage | 1.2...1.6V |
| Manufacturer Product Number | LTE-4206 |
| Description | EMITTER IR 940NM 60MA T-1 |
| Detailed Description | Infrared (IR) Emitter 940nm 1.2V 60mA 1.38mW/sr @ 20mA 20? T-1 |
| Category | Optoelectronics |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 60mA |
| Radiant Intensity (Ie) Min @ If | 1.38mW/sr @ 20mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Viewing Angle | 20? |
| Orientation | Top View |
| Operating Temperature | -40?C ~ 85?C (TA) |
| Mounting Type | Through Hole |
| Package / Case | T-1 |
| Base Product Number | LTE-42 |
| Package/Case | DIP-2 |
| Product Categories | Infrared Emitters |
| RoHs Status | Rohs |
| In-stock | 208 |
| Minimum Operating Temperature | - 40 C |
| Packaging | Bulk |
| Forward Current | 60 mA |
| Forward Voltage | 1.2 V |
| Illumination Color | Infrared |
| Mounting Style | Through Hole |
| Power Rating | 90 mW |
| Factory Pack Quantity | 1000 |
| Manufacturer Part No. | LTE-4206 |
| Beam Angle | 20 deg |
| Radiant Intensity | 4.06 mW/sr |
| Product Category | Infrared Emitters |
| Illumination Colour | Infrared |
| Maximum Operating Temperature | + 85 C |
| Brand | Lite-On |
| Alternate Part No. | 859-LTE-4206 |
| Part Status | - |
