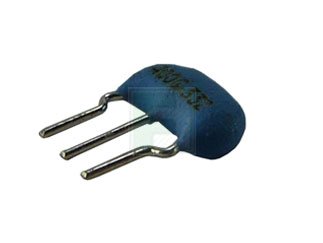

Ceramic Resonator - 8 MHz - Through Hole Mounting

Condition: New
Brand: MURATA
MPN: CSTLS8M00G53Z-A0
MPN Xref:CSTLS8M00G53Z-A0, 81-CSTLS8M00G53Z-A0, 490-6007-3-ND, PIEZO2576, 490-6007-1-ND, 306030010

This ceramic resonator offers a frequency of 8 MHz with a tolerance of 0.5%. It has a built-in capacitor and is suitable for through-hole mounting.

Frequency	8 MHz
Packaging	Ammo Pack
Operating Temperature Range	- 20 C to + 80 C
Tolerance	0.5 %
Series	CSTLS
Manufacturer Part No.	CSTLS8M00G53Z-A0
Product Category	Resonators
Dimensions	3 mm W x 8 mm L x 5.5 mm H
Termination Style	Through Hole
Alternate Part No.	81-CSTLS8M00G53Z-A0
Tradename	CERALOCK
Category	Crystals, Oscillators, Resonators
Package	Cut Tape (CT)
Product Status	Active
Type	Ceramic
Frequency Stability	?0.2%
Frequency Tolerance	?0.5%
Features	Built in Capacitor
Capacitance	15 pF
Impedance	25 Ohms
Operating Temperature	-40?C ~ 125?C
Mounting Type	Through Hole
Package / Case	Radial - 3 Lead, 2.50mm Pitch
Size / Dimension	0.315" L x 0.118" W (8.00mm x 3.00mm)
Height	0.236" (6.00mm)
Base Product Number	CSTLS

Parts of this page were generated by an AI
