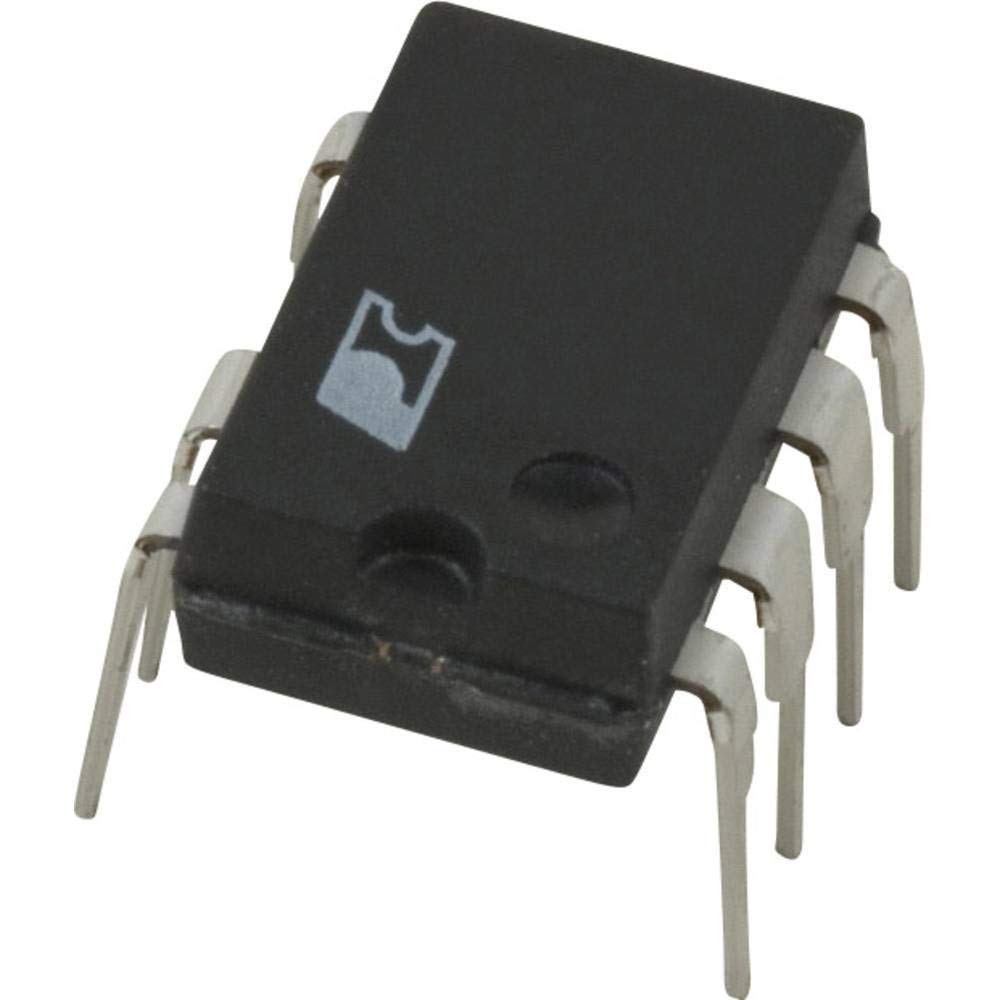

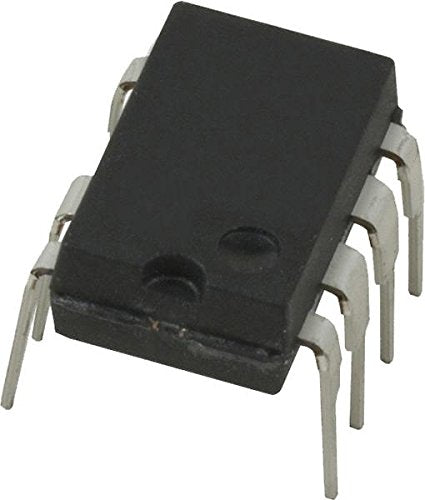

Integrated Circuit PMIC AC/DC Switcher DIP7/DIP-8B 700V 120-170mA
Integrated Circuit PMIC AC/DC Switcher DIP7/DIP-8B 700V 120-170mA
Regular price
$0.50 USD
Regular price
Sale price
$0.50 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
Condition: New
Brand: POWER INTEGRATIONS
MPN: LNK304PN
MPN Xref:LNK304PN, 2475336, 869-LNK304PN, R1023881, 640282, 5254151, 596-1023-5-ND, 17336289, POWE-0000636
This integrated circuit is a PMIC AC/DC switcher with an input voltage range of 85-265V and an output current range of 120-170mA. It operates at a frequency of 62-70kHz, has a THT mounting style, and comes in DIP7 or DIP-8B case options. The on-state resistance is 27.6Ω and the breakdown voltage is 700V. It belongs to the LinkSwitch-TN series and is RoHS compliant.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: POWER INTEGRATIONS
MPN: LNK304PN
MPN Xref:LNK304PN, 2475336, 869-LNK304PN, R1023881, 640282, 5254151, 596-1023-5-ND, 17336289, POWE-0000636
This integrated circuit is a PMIC AC/DC switcher with an input voltage range of 85-265V and an output current range of 120-170mA. It operates at a frequency of 62-70kHz, has a THT mounting style, and comes in DIP7 or DIP-8B case options. The on-state resistance is 27.6Ω and the breakdown voltage is 700V. It belongs to the LinkSwitch-TN series and is RoHS compliant.
| Case | DIP-8B |
| Type | Off Line Switcher |
| Type of integrated circuit | PMIC |
| Kind of integrated circuit | AC/DC switcher, |
| Input voltage | 85...265V |
| Output current | 120...170mA |
| Frequency | 62...70kHz |
| Mounting | THT |
| Topology | buck, |
| Operating temperature | -40...150?C |
| On-state resistance | 27.6? |
| Breakdown voltage | 700V |
| Manufacturer series | LinkSwitch-TN |
| Category | Integrated Circuits (ICs) |
| Series | Tube |
| Package | Active |
| Part Status | Non-Isolated |
| Output Isolation | Yes |
| Internal Switch(s) | 700V |
| Voltage - Breakdown | Buck, Buck-Boost, Flyback |
| Voltage - Supply (Vcc/Vdd) | 69% |
| Duty Cycle | 66kHz |
| Frequency - Switching | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Fault Protection | - |
| Control Features | -40?C ~ 150?C (TJ) |
| Operating Temperature | 8-DIP (0.300", 7.62mm), 7 Leads |
| Package / Case | DIP-8B |
| Supplier Device Package | Through Hole |
| Package/Case | DIP-7 |
| Product Categories | AC/DC Switching Converters |
| RoHs Status | Lead free/RoHS Compliant |
| In-stock | 8281 |
| Supply Current | 200 uA |
| Operating Temperature Range | - 40 C to + 150 C |
| Mounting Style | Through Hole |
| Packaging | Reel |
| Number of Outputs | 1 |
| Output Current | 170 mA |
| Factory Pack Quantity | 3000 |
