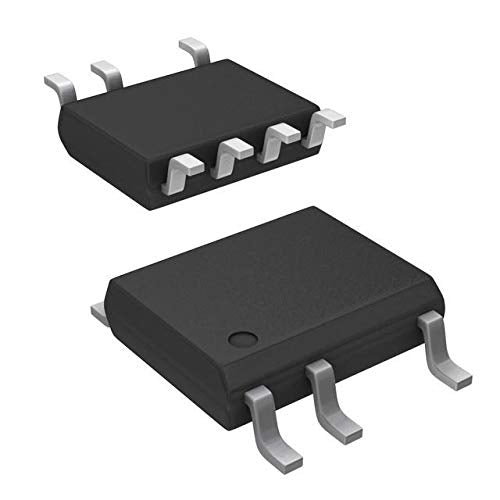

IC Offline Switch Mult Top 8SO

Condition: New
Brand: POWER INTEGRATIONS
MPN: LNK302DN-TL
MPN Xref:LNK302DN-TL, 869-LNK302DN-TL, 596-1128-2-ND, 596-1128-6-ND, 596-1128-1-ND

Converter offline buck, buck-boost, flyback topology with 700V voltage breakdown and 66kHz switching frequency

Category	Integrated Circuits (ICs)
Series	LinkSwitch?-TN
Package	Tape & Reel (TR)
Part Status	Active
Output Isolation	Non-Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	700V
Topology	Buck, Buck-Boost, Flyback
Voltage - Supply (Vcc/Vdd)	-
Duty Cycle	69%
Frequency - Switching	66kHz
Fault Protection	Current Limiting, Open Loop, Over Temperature, Short Circuit
Control Features	-
Operating Temperature	-40?C ~ 150?C (TJ)
Package / Case	SO-8C
Supplier Device Package	SO-8C
Mounting Type	Surface Mount
Base Product Number	LNK302
Manufacturer Product Number	LNK302DN-TL
Description	IC OFFLINE SWITCH MULT TOP 8SO
Manufacturer Standard Lead Time	8 Weeks
Detailed Description	Converter Offline Buck, Buck-Boost, Flyback Topology 66kHz SO-8C
Product Status	Active
Package/Case	SO-8C
Product Categories	AC/DC Switching Converters
RoHs Status	Rohs
In-stock	4911
Supply Current	260 uA
Operating Temperature Range	- 40 C to + 150 C
Mounting Style	SMD/SMT
Packaging	Reel
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 40 C
Number of Outputs	1
Output Current	63 mA
Factory Pack Quantity	2500
Type	Off Line Switcher
