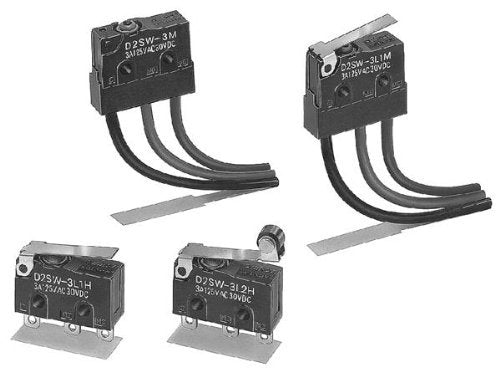

Switch Snap Action SPDT 3A 125V
Switch Snap Action SPDT 3A 125V
Regular price
$0.94 USD
Regular price
Sale price
$0.94 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
Condition: New
Brand: Omron
MPN: D2SW-3L2T
MPN Xref:D2SW-3L2T
Switch SPDT Chassis Mount, 3A (AC/DC), 125V/30V, Lever Roller, IP67, Snap Action
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Omron
MPN: D2SW-3L2T
MPN Xref:D2SW-3L2T
Switch SPDT Chassis Mount, 3A (AC/DC), 125V/30V, Lever Roller, IP67, Snap Action
| Switch Function | On-Mom |
| Alternate Part No. | 653-D2SW-3L2T |
| Current Rating | 3 A |
| Manufacturer Part No. | D2SW-3L2T |
| IP Rating | IP 67 |
| Actuator | Roller Lever |
| Operating Force | 60gf |
| Voltage Rating AC | 125 V |
| Contact Form | SPDT |
| Voltage Rating DC | 30 V |
| Mounting | Panel |
| Part # Aliases | 418446 |
| Series | D2SW |
| Product Category | Basic / Snap Action Switches |
| Type | Miniature |
| Termination Style | Quick Connect Terminal |
| Type of switch | microswitch SNAP ACTION |
| AC contacts rating @R | 3A / 125V AC |
| DC contacts rating @R | 3A / 30V DC |
| Switches features | with lever (with roller) |
| Contacts configuration | SPDT |
| Max. contact resistance: | 30m? |
| Switching method | ON-(ON) |
| Number of positions | 2 |
| Stable positions number | 1 |
| IP rating | IP67 |
| Leads | connectors 2,8x0,5mm |
| Body dimensions | 19.8x6.4x10.1mm |
| Mechanical durability | 5000000 cycles |
| Operating temperature | -40...85?C |
| Lever length | 14.5mm |
| Electrical life | 200000 cycles |
| Contact plating | silver plated |
| Terminal pitch | 8.7mm |
| Related items | D2SW |
| Manufacturer series | D2SW |
| Manufacturer Product Number | D2SW-3L2T |
| Description | SWITCH SNAP ACTION SPDT 3A 125V |
| Manufacturer Standard Lead Time | 29 Weeks |
| Detailed Description | Switch SPDT Chassis Mount |
| Category | Switches |
| Package | Bulk |
| Product Status | Active |
| Circuit | SPDT |
| Current Rating (Amps) | 3A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Lever, Roller |
| Mounting Type | Chassis Mount |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Release Force | 6.118gf |
| Operating Position | 0.571" (14.5mm) |
| Pretravel | - |
| Differential Travel | 0.031" (0.8mm) |
| Overtravel | 0.040" (1.0mm) |
| Operating Temperature | -40?C ~ 85?C |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 5,000,000 Cycles |
| Base Product Number | D2S |
| Alternate Mfr Part Number | D2SW3L2T |
