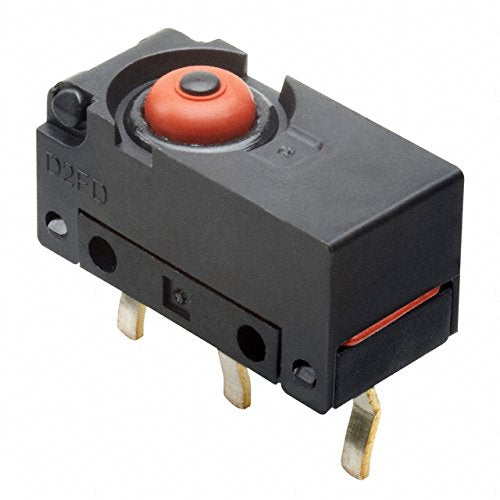

Bulk Active SPDT Switch 100mA Round Pin Plunger PC Pin Mounting

Bulk Active SPDT Switch 100mA Round Pin Plunger PC Pin Mounting

Regular price $0.28 USD
Regular price Sale price $0.28 USD
Sale Sold out
Shipping calculated at checkout.

381 in stock

Condition: New
Brand: OMRON
MPN: D2FD-01L0-1T
MPN Xref:D2FD-01L0-1T, 2134430, 11082907, SW1366-ND, 41X6676, 7650324, 70354088, D2FD01L01T, 7650324P

This is a bulk active SPDT switch with a current rating of 100mA. It has a round pin plunger actuator type and PC pin mounting type. The switch is dust tight and features an operating force of 2N. It has an operating temperature range of -20°C to 70°C.
Type of switch microswitch SNAP ACTION
AC contacts rating @R 0.1A / 125V AC
DC contacts rating @R 0.1A / 30V DC
Switches features without lever
Contacts configuration SPDT
Switching method ON-(ON)
Number of positions 2
Stable positions number 1
IP rating IP60
Leads for PCB,
Body dimensions 12.8x6x6.5mm
Mechanical durability 300000 cycles
Operating temperature -20...70?C
Operating Force 2N
Electrical life 100000 cycles
Contact plating gold-plated
Terminal pitch 5.08mm
Manufacturer series D2FD
Category Switches
Series Bulk
Package Active
Part Status SPDT
Circuit On-Mom
Switch Function 100mA (AC/DC)
Current Rating (Amps) Round (Pin Plunger)
Actuator Type Through Hole
Mounting Type PC Pin
Termination Style IP60 - Dust Tight
Ingress Protection -
Features 204gf
Release Force 0.024" (0.6mm)
Pretravel 0.005" (0.12mm)
Differential Travel 0.010" (0.25mm)
Overtravel -20?C ~ 70?C
Operating Temperature 0.276" (7.0mm)
Operating Position 100,000 Cycles
Electrical Life 300,000 Cycles
Mechanical Life 125 V
Voltage Rating - AC 30 V
