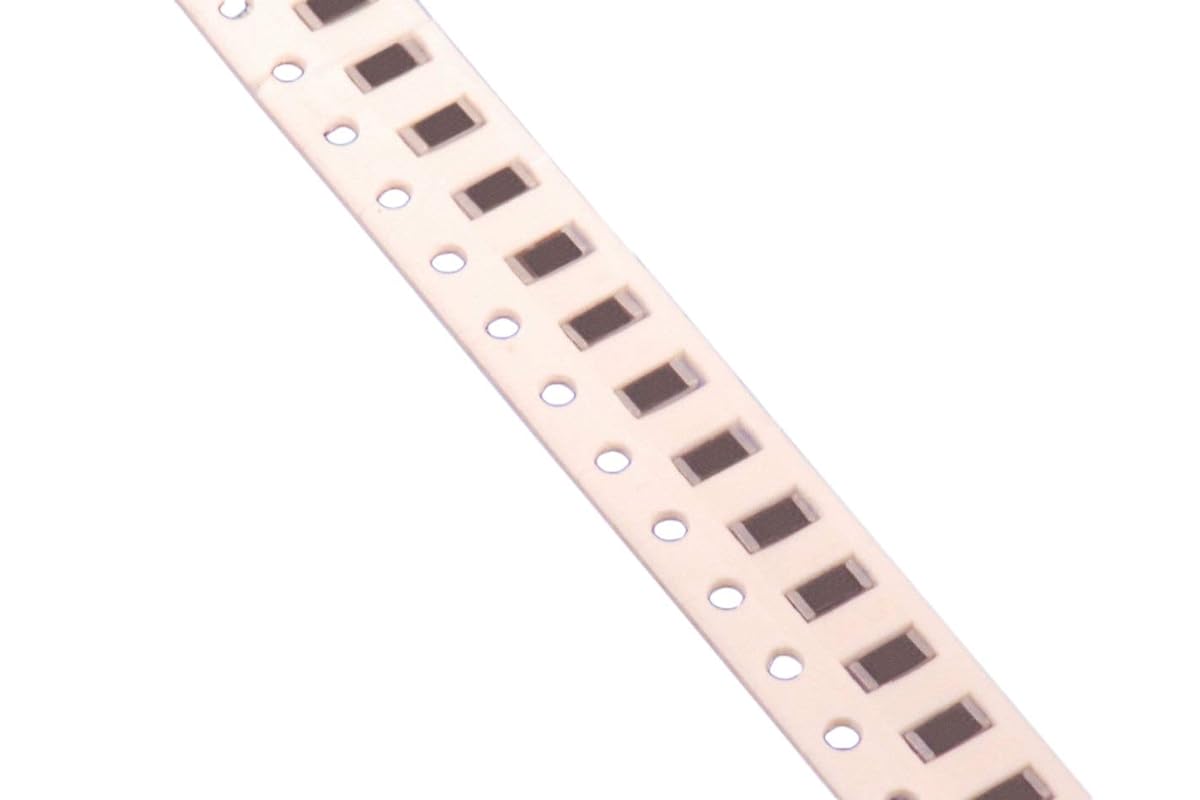

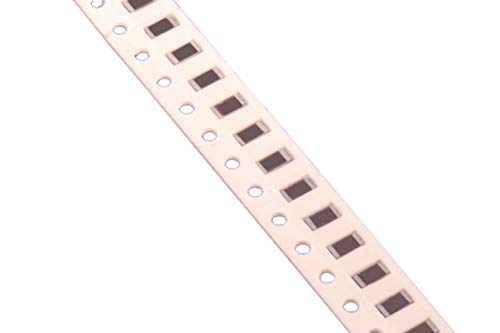

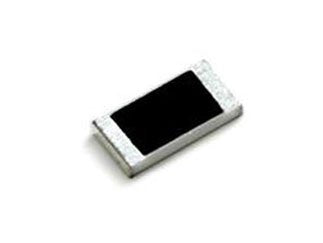

270 Ohm 5% 1/4W 1206 Chip Resistor

270 Ohm 5% 1/4W 1206 Chip Resistor

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

634 in stock

Condition: New
Brand: Yageo
MPN: RC1206JR-07270RL
MPN Xref:RC1206JR-07270RL, 311-270ERTR-ND, YAGE-0056131, 11051582, 311-270ERDKR-ND, 077131, 603-RC1206JR-07270RL, YAGE-0104164, RC1206JR-07270R

This product is a 270 Ohm 5% 1/4W 1206 chip resistor. It is moisture resistant and has a power rating of 0.25W, making it suitable for general purpose applications. The resistor operates in a temperature range of -55°C to 155°C and has a voltage rating of 200V.
Manufacturer Product Number RC1206JR-07270RL
Description RES 270 OHM 5% 1/4W 1206
Manufacturer Standard Lead Time 20 Weeks
Detailed Description 270 Ohms ?5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
Category Resistors
Series RC_L
Package Tape & Reel (TR)
Product Status Active
Resistance 270?
Tolerance 5 %
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ?100ppm/?C
Operating Temperature -55?C ~ 155?C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.122" L x 0.063" W (3.10mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
Case Width 1.6 mm
Order Multiple 5000
Power Rating 250 mW (1/4 W)
Case Code - in 1206
Alternate Part No. 603-RC1206JR-07270RL
Case Length 3.1 mm
Product Thick Film Resistors General Purpose
Type General Purpose Chip Resistor Surface Mount
Case Height 0.55 mm
Operating Temperature Range - 55 C to + 155 C
Case Code - mm 3216
Packaging Reel
Manufacturer Part No. RC1206JR-07270RL
Voltage Rating 200 V
Package/Case 1206 (3216 metric)
Minimum Order 5000
Product Category Thick Film Resistors - SMD
Type of resistor thick film
Mounting SMD
Case - inch 1206
Case - mm 3216
Power 0.25W
Max. operating voltage 200V
Max. overload voltage 500V
Operating temperature -55...155?C
