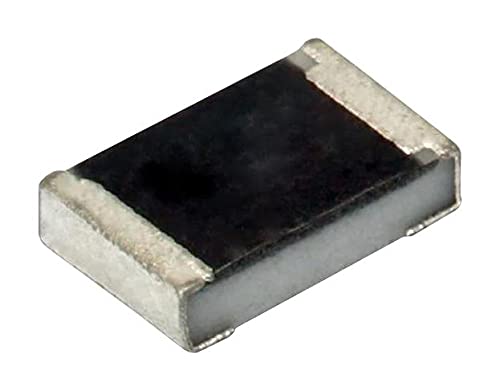

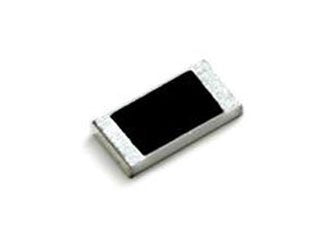

5.6kOhm 1% 1/4W 1206 Thick Film Chip Resistor - Reel

5.6kOhm 1% 1/4W 1206 Thick Film Chip Resistor - Reel

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

150 in stock

Condition: New
Brand: Yageo
MPN: RC1206FR-075K6L
MPN Xref:RC1206FR-075K6L, 311-5.60KFRDKR-ND, YAGE-0088931, 98K7706, 165285, WRC32443, RC1206FR-07 5K6L, 66R4264, 311-5.60KFRTR-ND

RES 5.6K OHM 1% 1/4W 1206 Thick Film Chip Resistor - Reel
Category Resistors
Series RC_L
Package Tape & Reel (TR)
Product Status Active
Resistance 5.6 kOhms
Tolerance ?1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ?100ppm/?C
Operating Temperature -55?C ~ 155?C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.122" L x 0.063" W (3.10mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
Manufacturer Product Number RC1206FR-075K6L
Description RES 5.6K OHM 1% 1/4W 1206
Manufacturer Standard Lead Time 20 Weeks
Detailed Description 5.6 kOhms ?1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
Part Status Active
Packaging Reel
Case Length 3.1 mm
Minimum Order 5000
Power Rating 250 mW (1/4 W)
Manufacturer Part No. RC1206FR-075K6L
Operating Temperature Range - 55 C to + 155 C
Case Code - in 1206
Case Width 1.6 mm
Type General Purpose Chip Resistor Surface Mount
Case Height 0.55 mm
Alternate Part No. 603-RC1206FR-075K6L
Order Multiple 5000
Case Code - mm 3216
Product Thick Film Resistors General Purpose
Product Category Thick Film Resistors - SMD
Voltage Rating 200 V
Package/Case 1206 (3216 metric)
Type of resistor thick film
Mounting SMD
Case - inch 1206
Case - mm 3216
Power 0.25W
Max. operating voltage 200V
Max. overload voltage 500V
Operating temperature -55...155?C
