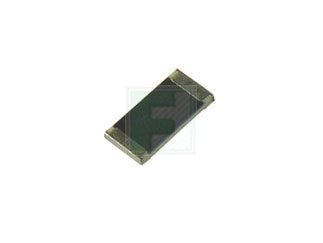

Thick Film SMD Resistor - 348 Ohms, 0.125W, 1/8W, 0805

Condition: New
Brand: YAGEO
MPN: RC0805FR-07348RL
MPN Xref:RC0805FR-07348RL, 311-348CRTR-ND, YAGE-0088036, 603-RC0805FR-07348RL, RC0805FR07348RL, 311-348CRDKR-ND, 66R3234, 311-348CRCT-ND

This is a thick film SMD resistor with a resistance of 348 Ohms and a power rating of 0.125W. It has a tolerance of ±1% and a maximum operating voltage of 150V. The operating temperature range is from -55°C to 155°C. It is a moisture resistant resistor with a package size of 0805 (2012 Metric) and comes in tape and reel packaging.

Type of resistor	thick film
Mounting	SMD
Case - inch	0805
Case - mm	2012
Resistance	348?
Power	0.125W
Tolerance	?1%
Max. operating voltage	150V
Max. overload voltage	300V
Operating temperature	-55...155?C
Manufacturer Product Number	RC0805FR-07348RL
Description	RES 348 OHM 1% 1/8W 0805
Manufacturer Standard Lead Time	20 Weeks
Detailed Description	348 Ohms ?1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thick Film
Category	Resistors
Series	RC_L

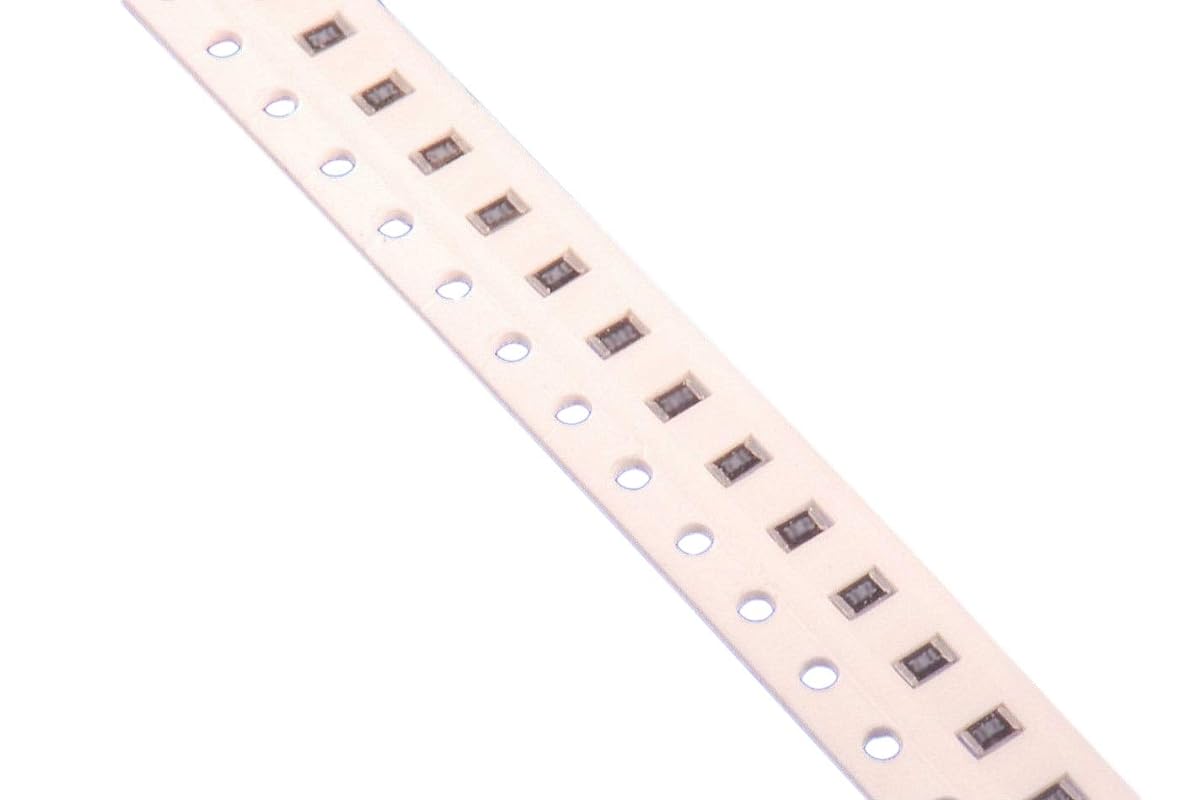

Package	Tape & Reel (TR)
Product Status	Active
Power (Watts)	0.125W, 1/8W
Composition	Thick Film
Features	Moisture Resistant
Temperature Coefficient	?100ppm/?C
Operating Temperature	-55?C ~ 155?C
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
Failure Rate	-
