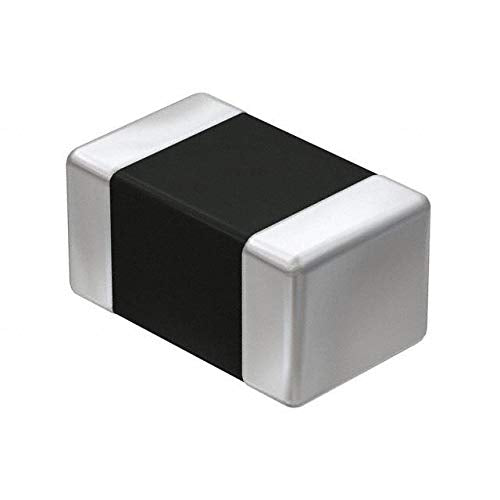

Ferrite Chip Bead Filter - 0402 (1005 Metric)
Ferrite Chip Bead Filter - 0402 (1005 Metric)
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Unit price
/
per
Shipping calculated at checkout.
500 in stock
Couldn't load pickup availability
Condition: New
Brand: TAIYO YUDEN
MPN: BK1005HS601-T
MPN Xref:BK1005HS601-T, 83H9684, 587-1846-1-ND, BK1005HS601T, 587-1846-6-ND, 587-1846-2-ND, 6579723, 963-BK1005HS601-T, 86H5368
This product is a ferrite chip bead filter with a maximum DC current rating of 300mA and a maximum DC resistance of 550mOhm. It has an impedance of 600 Ohms at a frequency of 100MHz. The package dimensions are 0.5mm width, 1mm length, and 0.5mm height. It is surface mountable and RoHS compliant. The manufacturer part number is BK1005HS601-T.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: TAIYO YUDEN
MPN: BK1005HS601-T
MPN Xref:BK1005HS601-T, 83H9684, 587-1846-1-ND, BK1005HS601T, 587-1846-6-ND, 587-1846-2-ND, 6579723, 963-BK1005HS601-T, 86H5368
This product is a ferrite chip bead filter with a maximum DC current rating of 300mA and a maximum DC resistance of 550mOhm. It has an impedance of 600 Ohms at a frequency of 100MHz. The package dimensions are 0.5mm width, 1mm length, and 0.5mm height. It is surface mountable and RoHS compliant. The manufacturer part number is BK1005HS601-T.
| Category | Filters |
| Series | BK |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Filter Type | - |
| Number of Lines | 1 |
| Impedance @ Frequency | 600 Ohms @ 100 MHz |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 550mOhm |
| Ratings | - |
| Operating Temperature | -55?C ~ 125?C |
| Package / Case | 0402 (1005 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.022"" (0.55mm) |
| Size / Dimension | 0.039"" L x 0.020"" W (1.00mm x 0.50mm) |
| Part Status | Active |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Manufacturer Part Number | BK1005HS601-T |
| Manufacturer Standard Lead Time | 9 Weeks |
| Packaging | Reel |
| Standard Package | 10,000 |
| Case Width | 0.5 mm |
| Maximum DC Current | 300 mA |
| Manufacturer Part No. | BK1005HS601-T |
| Alternate Part No. | 963-BK1005HS601-T |
| Operating Temperature Range | - 55 C to + 125 C |
| Case Length | 1 mm |
| Case Height | 0.5 mm |
| Product Category | EMI Filter Beads, Chips & Arrays |
| Dimensions | 0.5 mm W x 1 mm L x 0.5 mm H |
| Product | Ferrite Chip Beads |
| Tolerance | 25 % |
| Maximum DC Resistance | 550 mOhms |
| Test Frequency | 100 MHz |
| Impedance | 600 Ohms |
| Package/Case | 0402 (1005 metric) |
| Termination Style | SMD/SMT |
