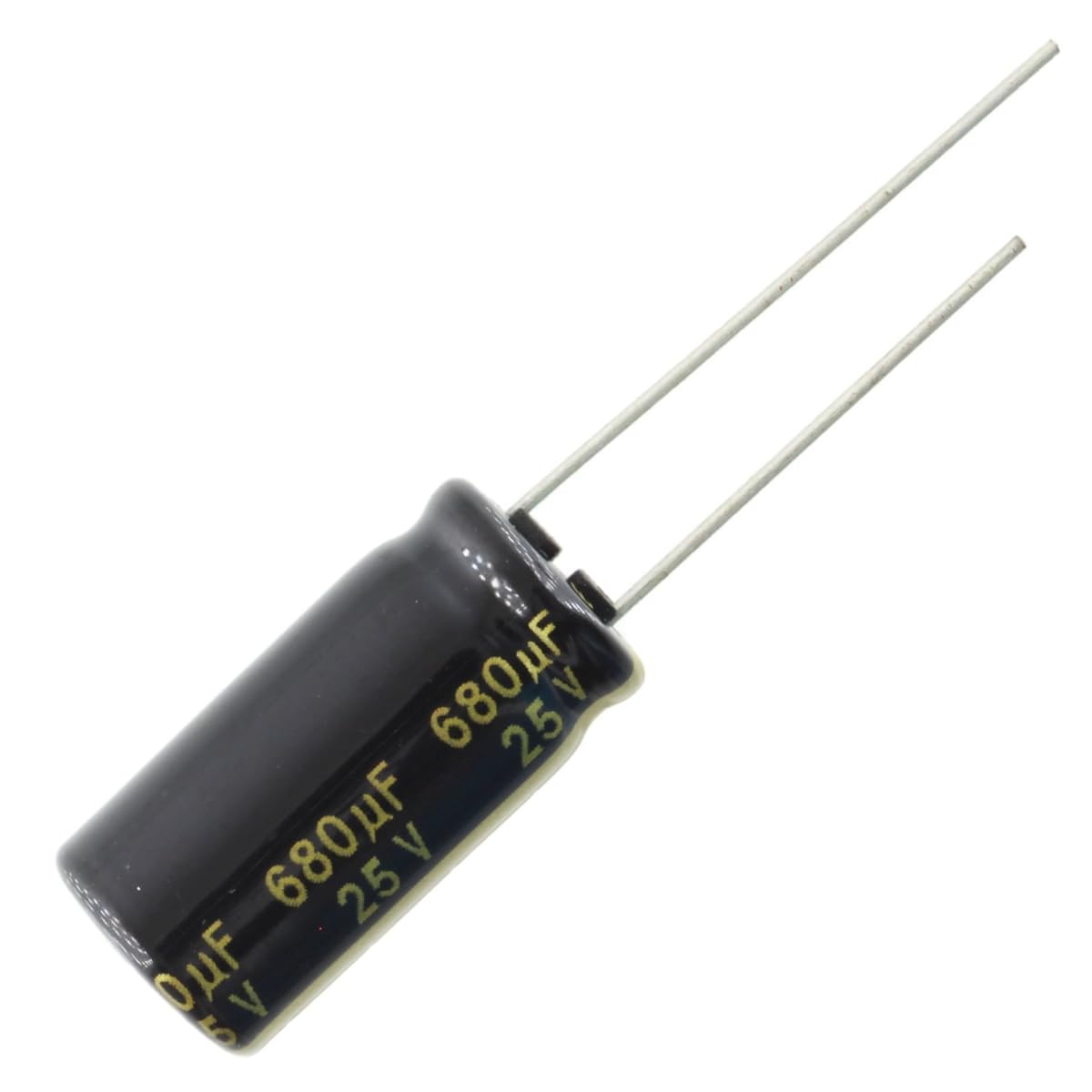

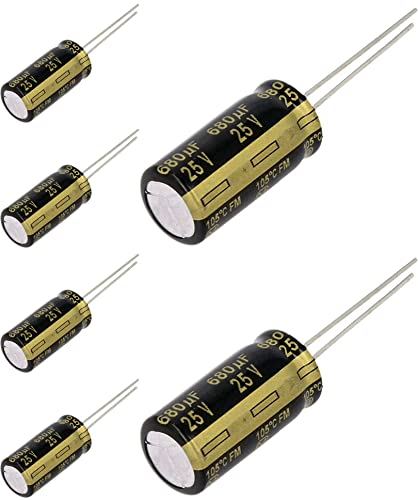

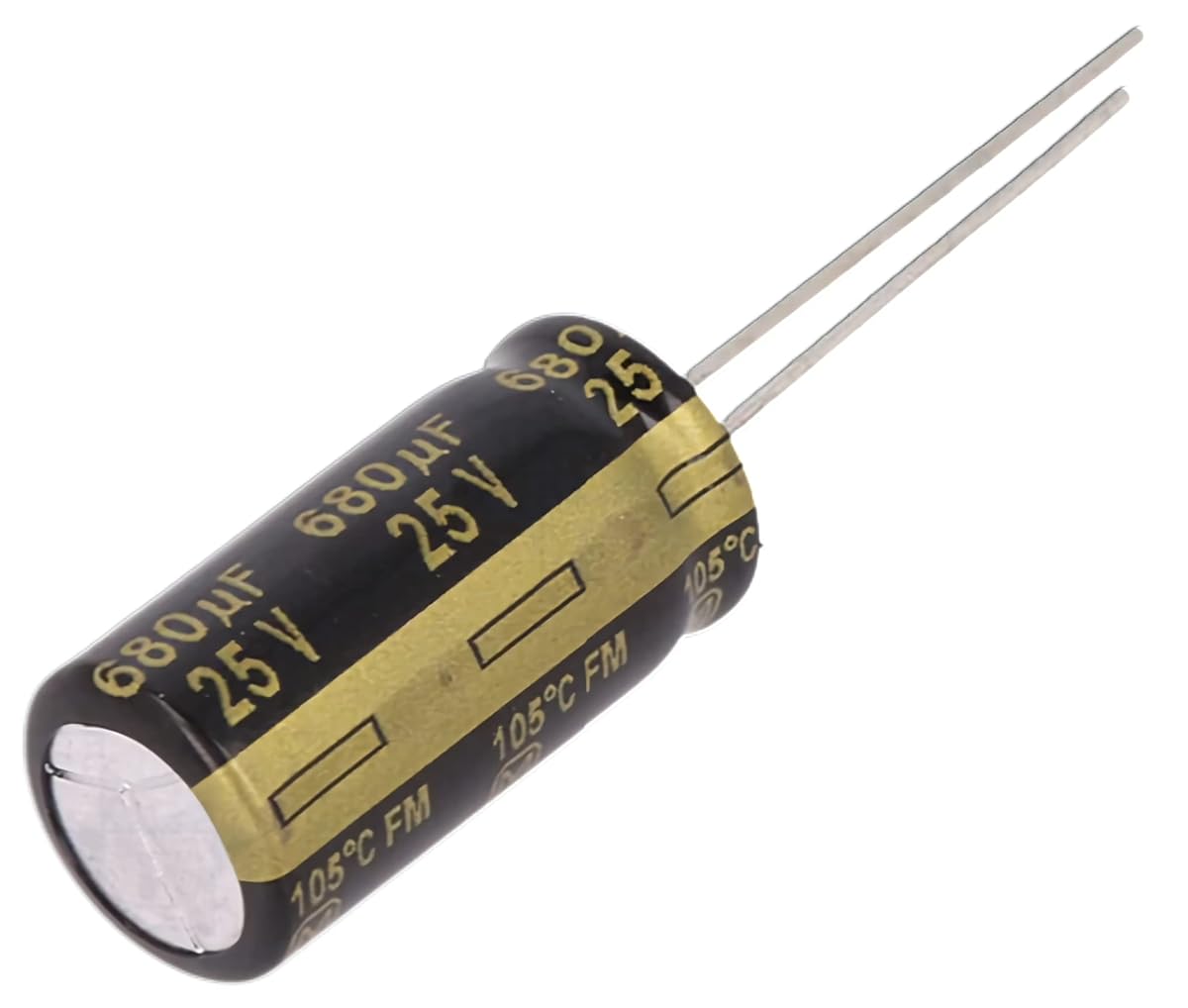

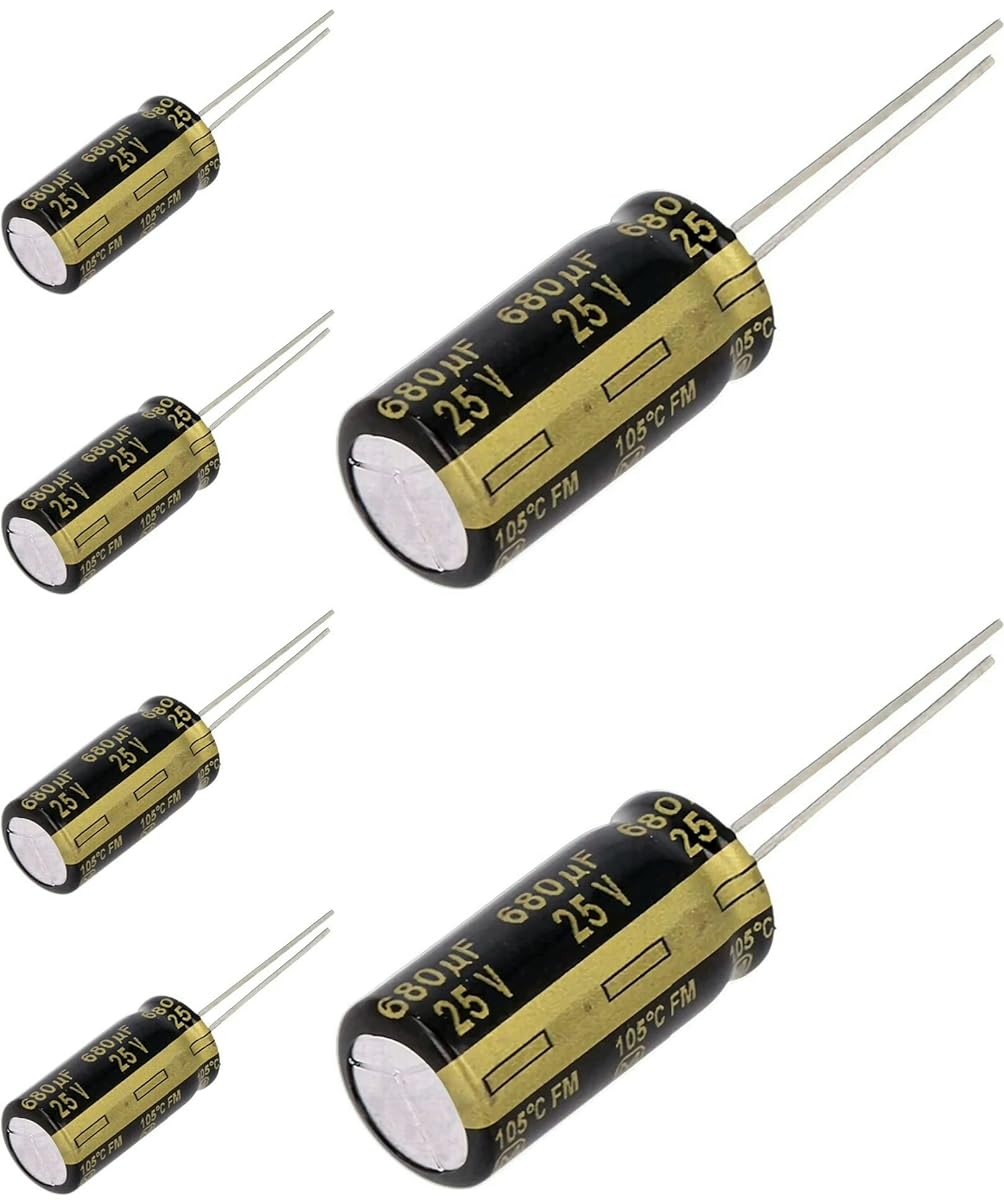

This is a bulk FM Series aluminum electrolytic capacitor with a capacitance of 680uF and a voltage rating of 25VDC.
Category
Capacitors
Series
FM-A
Package
Active
Part Status
?20%
Tolerance
?20%
ESR (Equivalent Series Resistance)
-
Lifetime @ Temp.
-40?C ~ 105?C
Operating Temperature
Polar
Polarization
-
Ratings
-
Applications
General Purpose
Lead Spacing
0.197" (5.00mm)
Size / Dimension
0.866" (22.00mm)
Height - Seated (Max)
-
Surface Mount Land Size
-
Mounting Type
PCB Mount
Package / Case
680 ?F
Capacitance
680 uF
Voltage - Rated
19 mOhms
Impedance
19 mOhms
Ripple Current @ Low Frequency
1.635 A @ 120 Hz
Manufacturer Product Number
EEU-FM1E681
Description
CAP ALUM 680UF 20% 25V RADIAL
Manufacturer Standard Lead Time
34 Weeks
Detailed Description
680 ?F 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105?C
Product Status
Active
Ripple Current @ High Frequency
2.18 A @ 100 kHz
Base Product Number
EEU-FM
Gross Weight
0.005 lbs
Capacitance Range
100 to 999 uF
Case Size
Dia. 0.394 x L 0.787 in ; Dia. 10 x L 20 mm
Configuration
Radial ; Can
Dimensions
0.394 Dia. x 0.787 L ; 10 Dia. x 20 L in ; mm
Element Material
Aluminum Electrolytic
ESR
19 mOhms
Lead Diameter
0.6 mm
Life
5000 Hours
Maximum Operating Temperature
105 C
Minimum Operating Temperature
-40 C
Packaging
Bulk
Ripple Current
2.18 A
Termination
Through Hole
Voltage Rating
25 VDC
