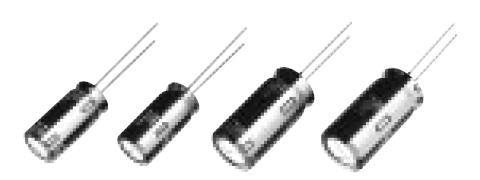

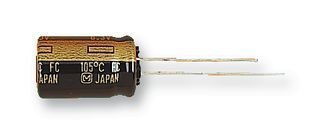

FC Series 330uF 20% 35V Polarized Capacitor
FC Series 330uF 20% 35V Polarized Capacitor
Regular price
$0.06 USD
Regular price
Sale price
$0.06 USD
Unit price
/
per
118 in stock
Condition: New
Brand: Panasonic
MPN: EEU-FC1V331B
MPN Xref:EEU-FC1V331B, EEUFC1V331B, 49W7170, 667-EEU-FC1V331B, EEU-FC1V331B-ND, 2282411, 70257485, PANA-0047194
This capacitor is part of the FC series and has a capacitance of 330uF with a tolerance of 20%. It is rated for a voltage of 35V and is polarized. It is ideal for automotive applications and has a ripple current of 682.5mA at low frequency.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Panasonic
MPN: EEU-FC1V331B
MPN Xref:EEU-FC1V331B, EEUFC1V331B, 49W7170, 667-EEU-FC1V331B, EEU-FC1V331B-ND, 2282411, 70257485, PANA-0047194
This capacitor is part of the FC series and has a capacitance of 330uF with a tolerance of 20%. It is rated for a voltage of 35V and is polarized. It is ideal for automotive applications and has a ripple current of 682.5mA at low frequency.
Capacitance | 330 uF |
Capacitance Range | 100 to 999 uF |
Case Size | Dia. 0.394 x L 0.63 in ; Dia. 10 x L 16 mm |
Configuration | Radial ; Can |
Dimensions | 0.394 Dia. x 0.63 L ; 10 Dia. x 16 L in ; mm |
Element Material | Aluminum Electrolytic |
ESR | 68 mOhms |
Lead Diameter | 0.6 mm |
Lead Spacing | 0.197 In. (5.00 mm) mm |
Life | 3000 Hours |
Maximum Operating Temperature | 105 C |
Minimum Operating Temperature | -55 C |
Mounting Type | Through Hole |
Packaging | Tape & Box (TB) |
Series | FC Series |
Termination | Through Hole |
Tolerance | ?20% |
Voltage Rating | 35 VDC |
Category | Capacitors |
Package | Cut Tape (CT) |
Product Status | Active |
Voltage - Rated | 35 V |
ESR (Equivalent Series Resistance) | - |
Lifetime @ Temp. | 3000 Hrs @ 105?C |
Operating Temperature | -55?C ~ 105?C |
Polarization | Polar |
Ratings | AEC-Q200 |
Applications | Automotive |
Ripple Current @ Low Frequency | 682.5 mA @ 120 Hz |
Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
Impedance | 68 mOhms |
Size / Dimension | 0.394" Dia (10.00mm) |
Height - Seated (Max) | 0.669" (17.00mm) |
Surface Mount Land Size | - |
Package / Case | Radial, Can |
Base Product Number | EEU-FC |
