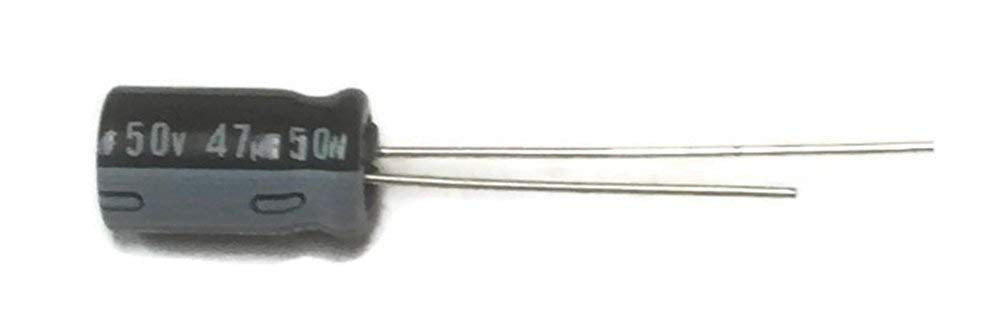

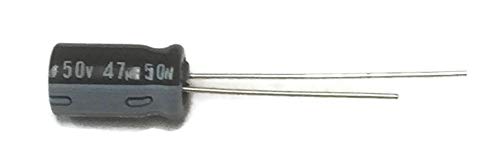

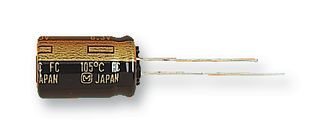

47uF 20% 50V Radial Aluminum Electrolytic Capacitor
47uF 20% 50V Radial Aluminum Electrolytic Capacitor
Regular price
$0.02 USD
Regular price
Sale price
$0.02 USD
Unit price
/
per
Shipping calculated at checkout.
458 in stock
Couldn't load pickup availability
Condition: New
Brand: Panasonic
MPN: EEU-FC1H470
MPN Xref:EEU-FC1H470, P10321-ND, EEUFC1H470, 1985121, PANA-0044225, 667-EEU-FC1H470, 70257402, 17T5100
This is a description of a 47uF 20% 50V radial aluminum electrolytic capacitor with a maximum operating temperature of 105°C and a lifetime of 1000 hours at 105°C. The capacitor is polarized and has a tolerance of ±20%. It is AEC-Q200 rated and suitable for automotive applications. It has a capacitance range of 1 to 99uF and an impedance of 600 mOhms. The package type is radial, can, and it is available in bulk packaging.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Panasonic
MPN: EEU-FC1H470
MPN Xref:EEU-FC1H470, P10321-ND, EEUFC1H470, 1985121, PANA-0044225, 667-EEU-FC1H470, 70257402, 17T5100
This is a description of a 47uF 20% 50V radial aluminum electrolytic capacitor with a maximum operating temperature of 105°C and a lifetime of 1000 hours at 105°C. The capacitor is polarized and has a tolerance of ±20%. It is AEC-Q200 rated and suitable for automotive applications. It has a capacitance range of 1 to 99uF and an impedance of 600 mOhms. The package type is radial, can, and it is available in bulk packaging.
| Part Status | Active |
| Tolerance | ?20% |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105?C |
| Operating Temperature | -55?C ~ 105?C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | PCB Mount |
| Package / Case | Radial, Can |
| Capacitance | 47 ?F |
| Voltage - Rated | 50 V |
| Impedance | 600 mOhms |
| Ripple Current @ Low Frequency | 169 mA @ 120 Hz |
| Ripple Current @ High Frequency | 260 mA @ 100 kHz |
| Manufacturer Product Number | EEU-FC1H470 |
| Description | CAP ALUM 47UF 20% 50V RADIAL |
| Manufacturer Standard Lead Time | 30 Weeks |
| Detailed Description | 47 ?F 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105?C |
| Category | Capacitors |
| Series | FC Series |
| Package | Bulk |
| Product Status | Active |
| Base Product Number | EEU-FC |
| Capacitance Range | 1 to 99 uF |
| Case Size | Dia. 0.248 x L 0.441 in ; Dia. 6.3 x L 11.2 mm |
| Configuration | Radial ; Can |
| Dimensions | 0.248 Dia. x 0.441 L ; 6.3 Dia. x 11.2 L in ; mm |
| Element Material | Aluminum Electrolytic |
| ESR | 600 mOhms |
| Lead Diameter | 0.5 mm |
| Life | 1000 Hours |
| Maximum Operating Temperature | 105 C |
| Minimum Operating Temperature | -55 C |
| Packaging | Bulk |
| Ripple Current | 0.26 A |
| Termination | Through Hole |
| Voltage Rating | 50 VDC |
