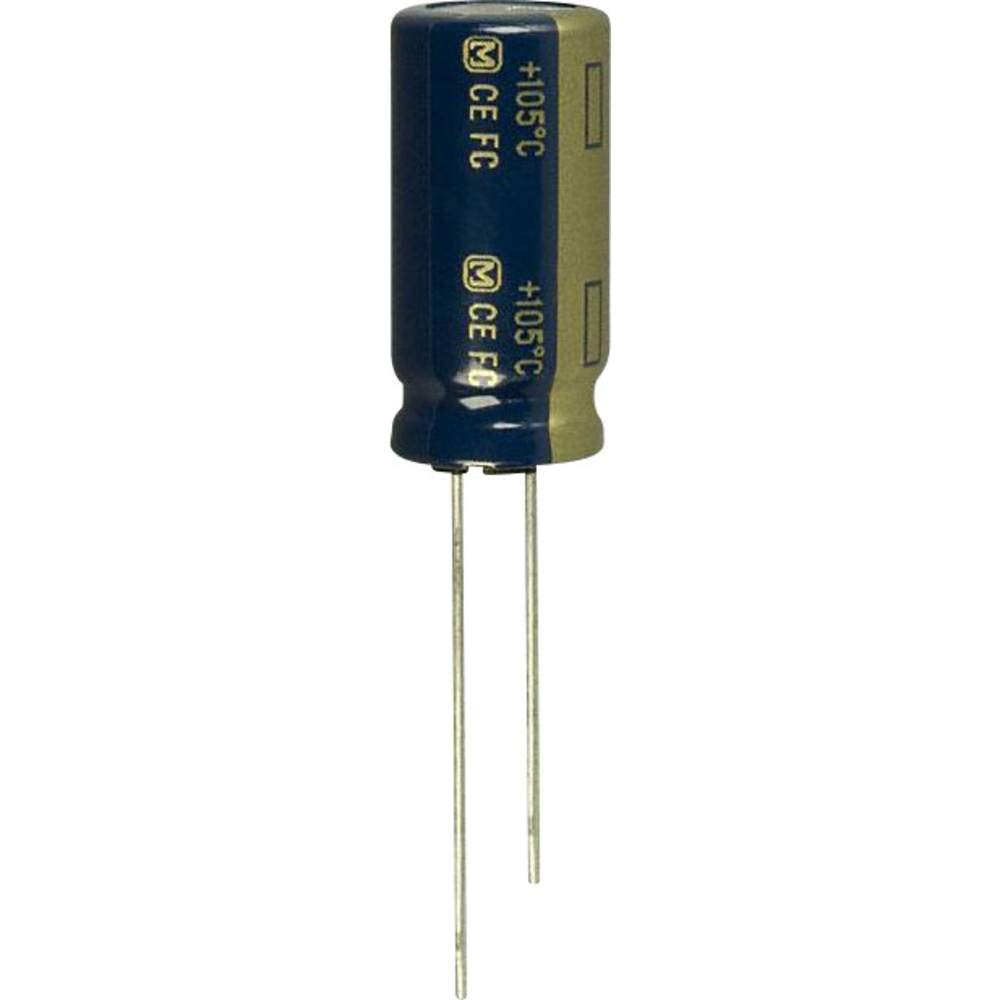

High Temperature Electrolytic Capacitor - 2200 uF, 16 V
High Temperature Electrolytic Capacitor - 2200 uF, 16 V
Regular price
$0.24 USD
Regular price
Sale price
$0.24 USD
Unit price
/
per
Shipping calculated at checkout.
50 in stock
Couldn't load pickup availability
Condition: New
Brand: Panasonic
MPN: EEU-FC1C222
MPN Xref:EEU-FC1C222, PANA-0062962, 12M6559, 667-EEU-FC1C222, EEUFC1C222, P10257-ND, 70257296
This high temperature electrolytic capacitor has a capacitance of 2200 uF and a voltage rating of 16 V. It is a radial lead type and has an ESR of 30 mOhms. The ripple current is 1.945 A and it has a load life of 5000 h.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Panasonic
MPN: EEU-FC1C222
MPN Xref:EEU-FC1C222, PANA-0062962, 12M6559, 667-EEU-FC1C222, EEUFC1C222, P10257-ND, 70257296
This high temperature electrolytic capacitor has a capacitance of 2200 uF and a voltage rating of 16 V. It is a radial lead type and has an ESR of 30 mOhms. The ripple current is 1.945 A and it has a load life of 5000 h.
| Capacitance | 16 V |
| Capacitance Range | 1000 to 9999 uF |
| Case Size | Dia. 0.492 x L 0.984 in ; Dia. 12.5 x L 25 mm |
| Configuration | Radial ; Can |
| Dimensions | 0.492 Dia. x 0.984 L ; 12.5 Dia. x 25 L in ; mm |
| Element Material | Aluminum Electrolytic |
| ESR | 30 mOhms |
| Lead Diameter | 0.6 mm |
| Lead Spacing | 5 mm |
| Life | 5000 Hours |
| Maximum Operating Temperature | 105 C |
| Minimum Operating Temperature | -55 C |
| Mounting Type | Radial, Can |
| Packaging | Bulk |
| Ripple Current | 1.945 A |
| Series | FC Series |
| Termination | Through Hole |
| Tolerance | - |
| Voltage Rating | 16 VDC |
| Type | Radial Lead Type |
| Voltage Rating DC | 16 V |
| Load Life | 5000 h |
| Alternate Part No. | 667-EEU-FC1C222 |
| Case Diameter | 12.5 mm |
| Product | High Temp Electrolytic Capacitors |
| Manufacturer Part No. | EEU-FC1C222 |
| Case Length | 25 mm |
| Product Category | Aluminium Electrolytic Capacitors - Leaded |
| Termination Style | Radial |
| Category | Capacitors |
| Package | - |
| Part Status | ?20% |
| ESR (Equivalent Series Resistance) | 5000 Hrs @ 105?C |
| Lifetime @ Temp. | -55?C ~ 105?C |
| Operating Temperature | Polar |
| Polarization | AEC-Q200 |
| Ratings | Automotive |
| Applications | 0.197" (5.00mm) |
| Size / Dimension | 0.984" (25.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | Through Hole |
| Package / Case | 2200 ?F |
| Voltage - Rated | 30 mOhms |
| Impedance | 1.556 A @ 120 Hz |
| Ripple Current @ Low Frequency | 1.945 A @ 100 kHz |
