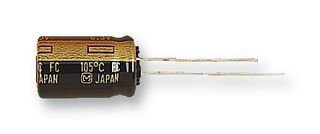

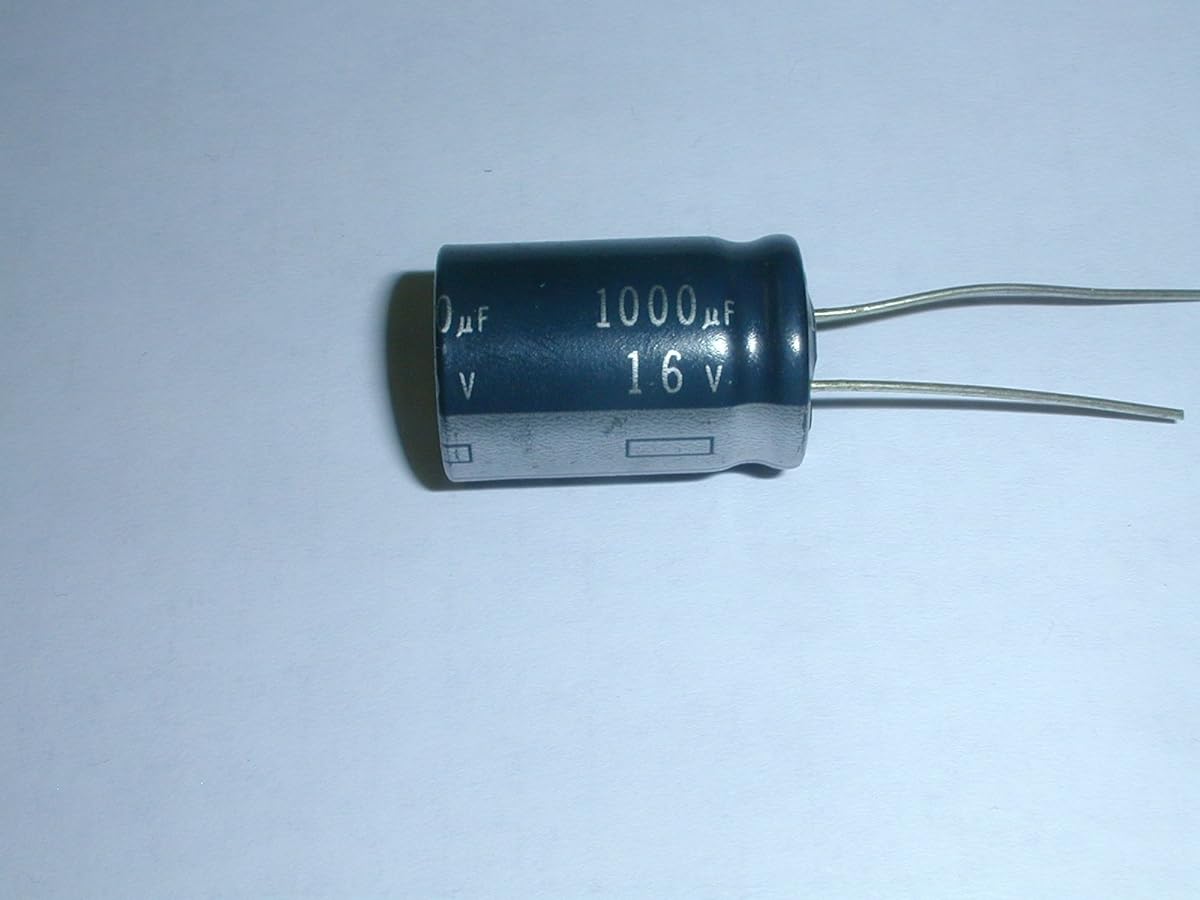

Aluminum Electrolytic Capacitor 1000uF 16V
Aluminum Electrolytic Capacitor 1000uF 16V
Regular price
$0.18 USD
Regular price
Sale price
$0.18 USD
Unit price
/
per
Shipping calculated at checkout.
127 in stock
Couldn't load pickup availability
Condition: New
Brand: Panasonic
MPN: EEU-FC1C102
MPN Xref:EEU-FC1C102, P10253-ND, 667-EEU-FC1C102, 17T5077, 1984777, EEUFC1C102, PANA-0047160, 70257284
CAP ALUM 1000UF 20% 16V RADIAL
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Panasonic
MPN: EEU-FC1C102
MPN Xref:EEU-FC1C102, P10253-ND, 667-EEU-FC1C102, 17T5077, 1984777, EEUFC1C102, PANA-0047160, 70257284
CAP ALUM 1000UF 20% 16V RADIAL
| Manufacturer Product Number | EEU-FC1C102 |
| Description | CAP ALUM 1000UF 20% 16V RADIAL |
| Manufacturer Standard Lead Time | 33 Weeks |
| Detailed Description | 1000 ?F 16 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105?C |
| Category | Capacitors |
| Series | FC Series |
| Package | Active |
| Product Status | Active |
| Capacitance | 1000 ?F |
| Tolerance | ?20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105?C |
| Operating Temperature | Polar |
| Polarization | Polar |
| Ratings | Automotive |
| Applications | 0.197" (5.00mm) |
| Ripple Current @ Low Frequency | 1.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.44 A @ 100 kHz |
| Impedance | 1.08 A @ 120 Hz |
| Lead Spacing | 5 mm |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | PCB Mount |
| Package / Case | 1000 ?F |
| Base Product Number | EEU-FC |
| Capacitance Range | 1000 to 9999 uF |
| Case Size | Dia. 0.394 x L 0.984 in ; Dia. 10 x L 25 mm |
| Configuration | Radial ; Can |
| Dimensions | 10 mm Dia. x 25 mm L |
| Element Material | Aluminum Electrolytic |
| ESR | 45 mOhms |
| Lead Diameter | 0.6 mm |
| Life | 3000 Hours |
| Maximum Operating Temperature | 105 C |
| Minimum Operating Temperature | -55 C |
| Packaging | Bulk |
| Ripple Current | 1.44 A |
| Termination | Through Hole |
| Voltage Rating | 16 VDC |
| Alternate Part No. | 667-EEU-FC1C102 |
| Case Diameter | 10 mm |
| Product Category | Aluminium Electrolytic Capacitors - Leaded |
| Load Life | 3000 h |
| Termination Style | Radial |
| Manufacturer Part No. | EEU-FC1C102 |
| Case Length | 25 mm |
| Voltage Rating DC | 16 V |
| Product | High Temp Electrolytic Capacitors |
| Type | Radial Lead Type |
| Part Status | ?20% |
