0.33 µF 50V Radial Aluminum Electrolytic Capacitor

Condition: New
Brand: Panasonic Electronic Components
MPN: EEA-GA1HR33H
MPN Xref:EEA-GA1HR33H, P15825CT-ND, 667-EEA-GA1HR33H, P15825TB-ND, EEAGA1HR33H, E4303114

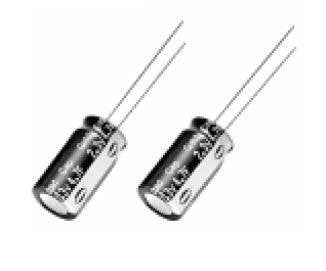

This is a 0.33 µF 50V aluminum electrolytic capacitor with a radial, can package and a tolerance of ±20%

Category	Capacitors
Series	GA-A
Package	Cut Tape (CT)
Part Status	Obsolete
Tolerance	?20%
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105?C
Operating Temperature	-55?C ~ 105?C
Polarization	Polar
Ratings	-
Applications	General Purpose
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
Capacitance	0.33 ?F
Voltage - Rated	50 V
Ripple Current @ Low Frequency	3.5 mA @ 120 Hz
Ripple Current @ High Frequency	5.4 mA @ 100 kHz
Manufacturer Product Number	EEA-GA1HR33H
Description	CAP ALUM 0.33UF 20% 50V RADIAL
Detailed Description	0.33 ?F 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105?C
Product Status	Obsolete
Base Product Number	EEA-GA1
