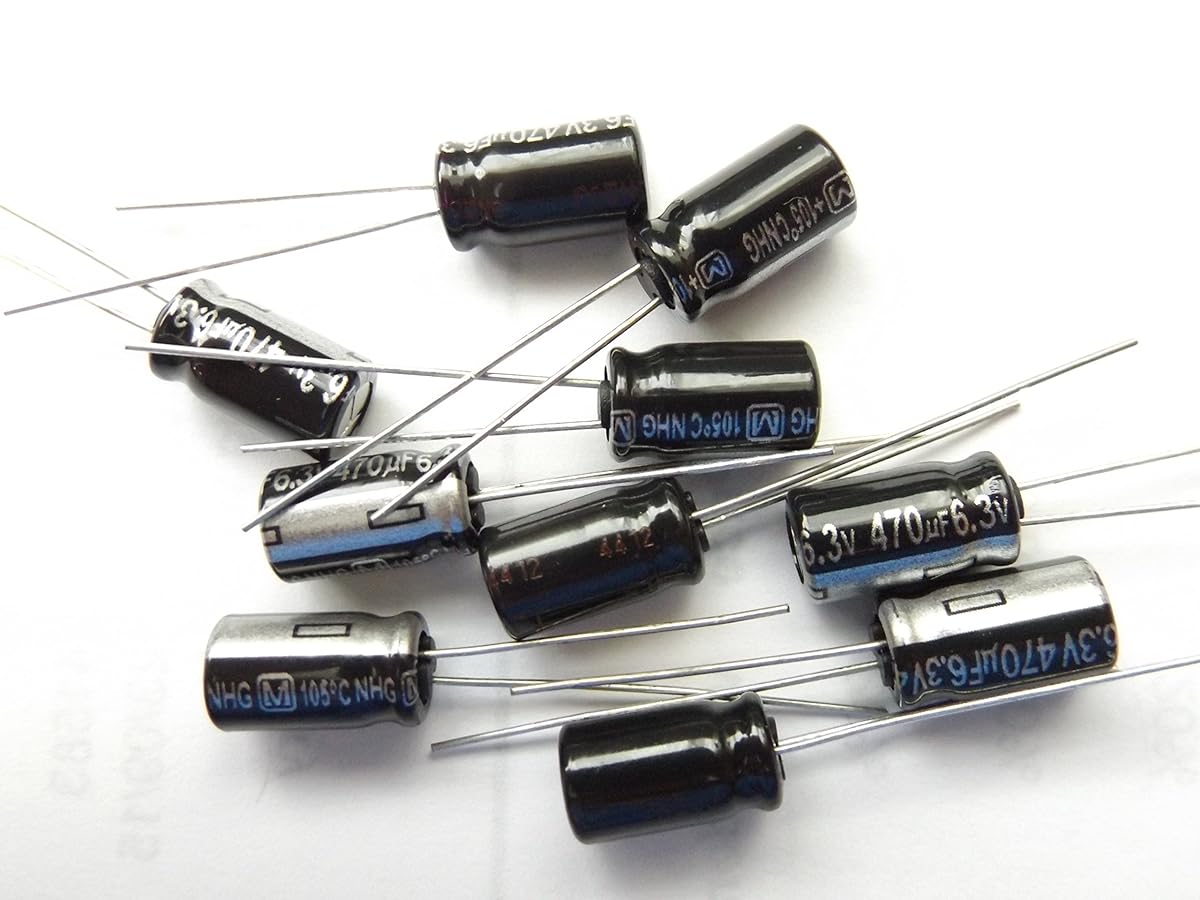

470 ?F 6.3V Radial Can Capacitor
470 ?F 6.3V Radial Can Capacitor
Regular price
$0.02 USD
Regular price
Sale price
$0.02 USD
Unit price
/
per
Shipping calculated at checkout.
110 in stock
Couldn't load pickup availability
Condition: New
Brand: Panasonic
MPN: ECA-0JHG471
MPN Xref:ECA-0JHG471, 16725751, 803651, PANA-0062636, 7270613P, 70255723, 31-6760, 7270613, 31-5195
This is a capacitor with a capacitance of 470 ?F and a voltage rating of 6.3V. It is a radial, can type capacitor with a size of 0.248" diameter and 0.480" height. It has a lead spacing of 0.098" and is RoHS compliant.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Panasonic
MPN: ECA-0JHG471
MPN Xref:ECA-0JHG471, 16725751, 803651, PANA-0062636, 7270613P, 70255723, 31-6760, 7270613, 31-5195
This is a capacitor with a capacitance of 470 ?F and a voltage rating of 6.3V. It is a radial, can type capacitor with a size of 0.248" diameter and 0.480" height. It has a lead spacing of 0.098" and is RoHS compliant.
| Category | Capacitors |
| Series | NHG |
| Package | Active |
| Part Status | ?20% |
| Tolerance | ?20% |
| ESR (Equivalent Series Resistance) | 1000 Hrs @ 105?C |
| Lifetime @ Temp. | 1000 Hrs @ 105?C |
| Operating Temperature | Polar |
| Polarization | - |
| Ratings | - |
| Applications | 0.098" (2.50mm) |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | PCB Mount |
| Package / Case | Radial, Can |
| Capacitance | 470 uF |
| Voltage - Rated | 6.3V |
| Ripple Current @ Low Frequency | 345 mA @ 100 kHz |
| Manufacturer Product Number | ECA-0JHG471 |
| Description | CAP ALUM 470UF 20% 6.3V RADIAL |
| Manufacturer Standard Lead Time | 15 Weeks |
| Detailed Description | 470 ?F 6.3 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105?C |
| Product Status | Active |
| Ripple Current @ High Frequency | 345 mA @ 100 kHz |
| Base Product Number | ECA-0JH |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Manufacturer Part Number | ECA-0JHG471 |
| Packaging | Bulk Pack |
| Ripple Current - High Frequency | 345mA @ 100kHz |
| Ripple Current - Low Frequency | 230mA @ 120Hz |
| Standard Package | 200 |
| Capacitance Range | 100 to 999 uF |
| Case Size | Dia. 0.248 x L 0.441 in ; Dia. 6.3 x L 11.2 mm |
| Configuration | Radial ; Can |
| Dimensions | 0.248 Dia. x 0.441 L ; 6.3 Dia. x 11.2 L in ; mm |
| Element Material | Aluminum Electrolytic |
| Lead Diameter | 0.5 mm |
| Life | 1000 Hours |
| Maximum Operating Temperature | 105 C |
| Minimum Operating Temperature | -55 C |
| Ripple Current | 0.23 A |
| Termination | Through Hole |
| Voltage Rating | 6.3 VDC |
