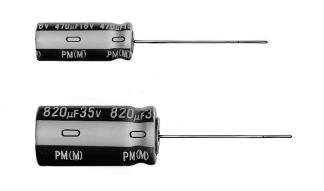

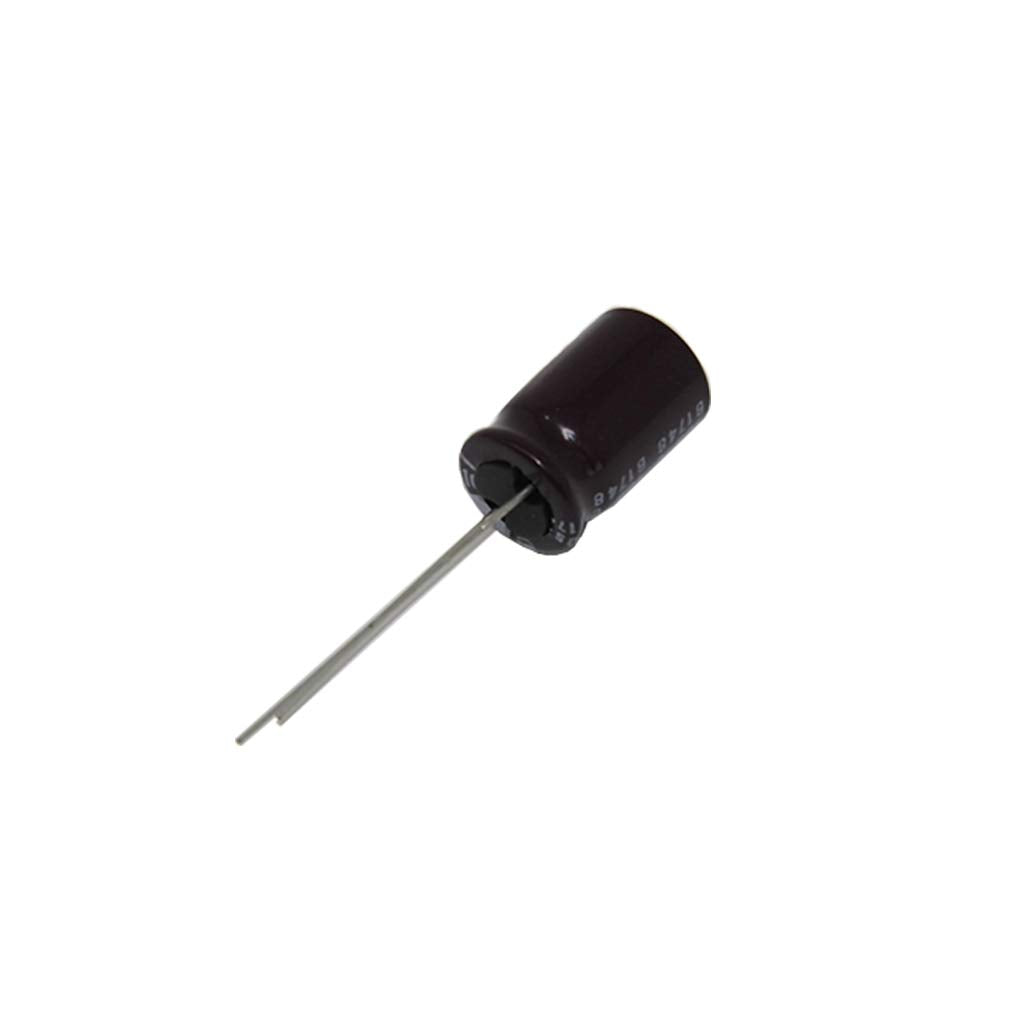

Electrolytic Capacitor 820uF 25V Low ESR

Condition: New
Brand: Nichicon
MPN: UPM1E821MHD
MPN Xref:UPM1E821MHD, E4771927, 647-UPM1E821MHD, UPM1E821MHD-ND, 54K9529

CAP ALUM 820UF 20% 25V RADIAL

Category	Capacitors
Series	UPM
Package	Active
Part Status	?20%
Tolerance	?20%
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105?C
Operating Temperature	Polar
Polarization	-
Ratings	-
Applications	General Purpose
Lead Spacing	0.492" Dia (12.50mm)
Size / Dimension	0.866" (22.00mm)
Height - Seated (Max)	-
Surface Mount Land Size	-
Mounting Type	Radial, Can
Package / Case	Radial, Can
Capacitance	820?F
Voltage - Rated	41 mOhms
Impedance	1.22 A @ 120 Hz
Ripple Current @ Low Frequency	1.22 A @ 120 Hz
Manufacturer Product Number	UPM1E821MHD
Description	CAP ALUM 820UF 20% 25V RADIAL
Detailed Description	820 ?F 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105?C
Product Status	Not For New Designs
Ripple Current @ High Frequency	1.44 A @ 10 kHz
Type of capacitor	electrolytic
Kind of capacitor	low ESR
Capacitor application	switching power supplies
Mounting	THT
Operating voltage	25V DC
Body dimensions	?12.5x20mm
Terminal pitch	5mm
Service life	2000h
Operating temperature	-55...105?C
Capacitors series	UPM
Operating current	1.44A
