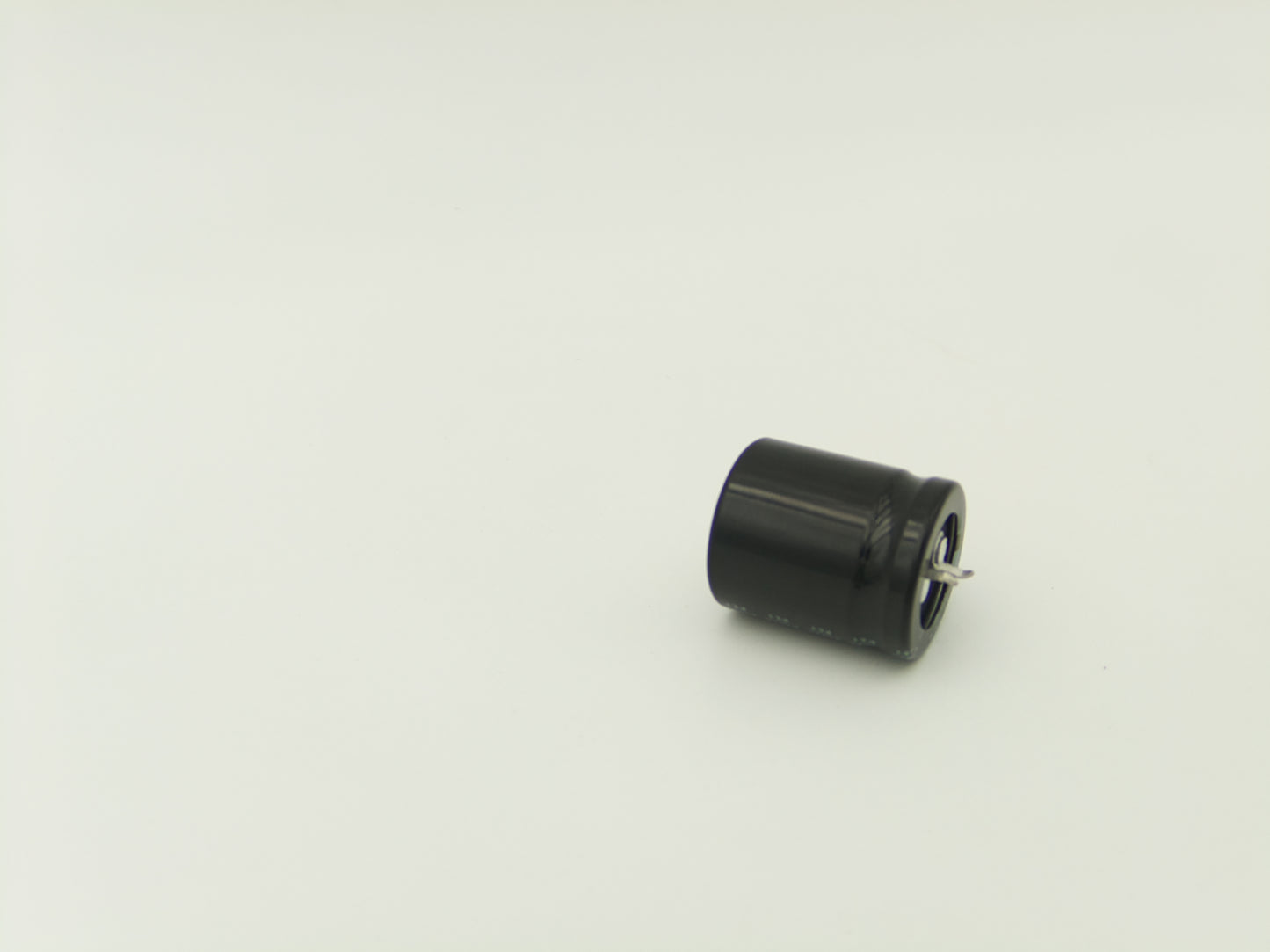

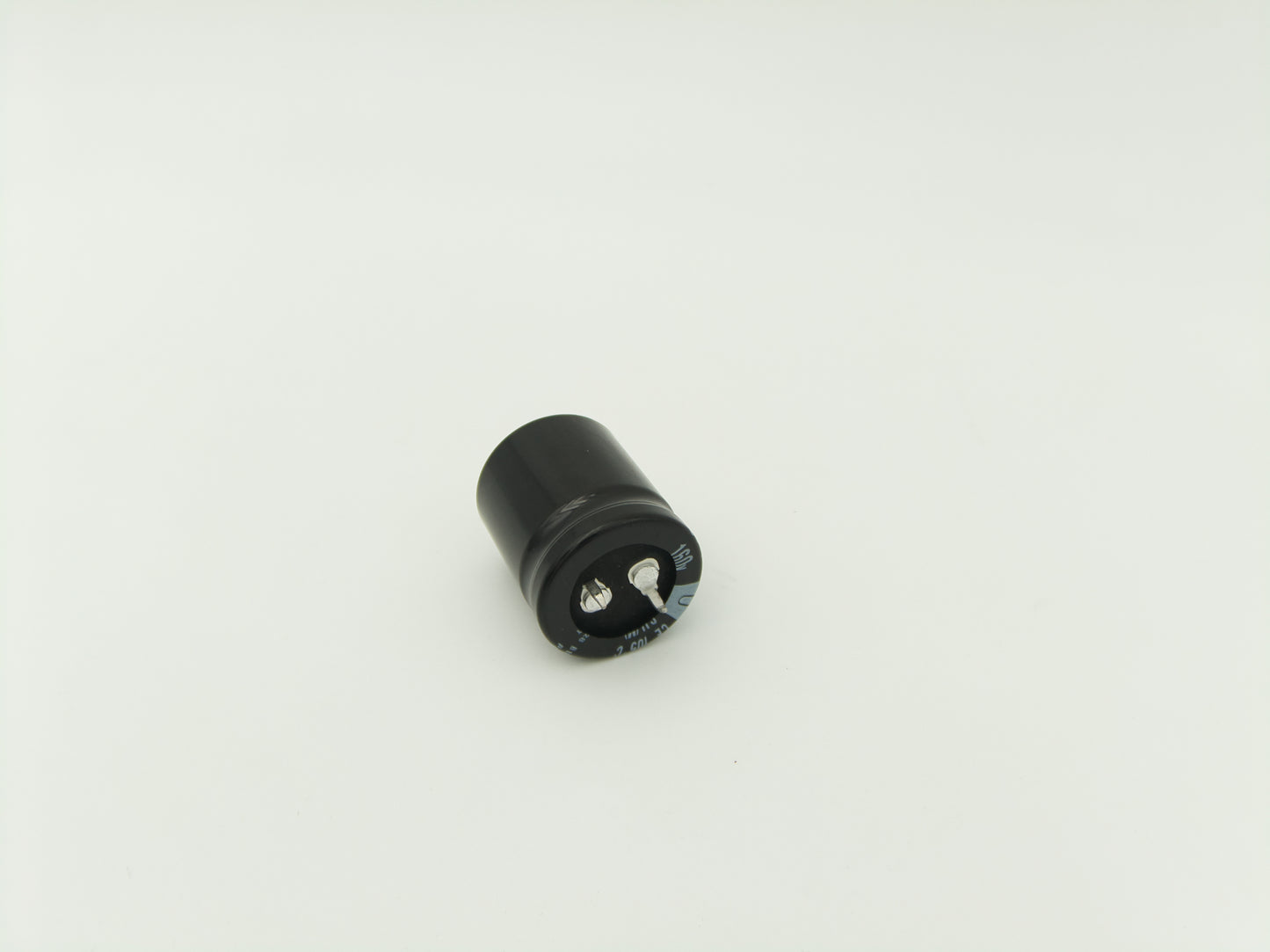

680 ?F 160V General Purpose Electrolytic Capacitor, 3000 hrs @ 105?C

Condition: New
Brand: Nichicon
MPN: LGU2C681MELA
MPN Xref:LGU2C681MELA

This is a general purpose electrolytic capacitor with a capacitance of 680 ?F and a voltage rating of 160V. It is polarized and has a tolerance of ?20%. It operates at a temperature range of -40?C to 105?C and has a service life of 3000 hours.

Type of capacitor	electrolytic
Mounting	SNAP-IN
Capacitance	680 ?F
Operating voltage	160V DC
Body dimensions	?25x30mm
Tolerance	?20%
Service life	3000h
Operating temperature	-40...105?C
Operating current	1820mA
Leakage current	0.98mA
Category	Capacitors
Series	LGU
Package	Bulk
Part Status	Active
Voltage - Rated	160 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105?C
Operating Temperature	-40?C ~ 105?C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.82 A @ 120 Hz
Ripple Current @ High Frequency	2.73 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.181" (30.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
