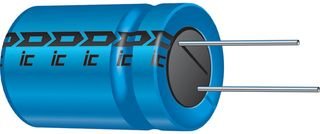

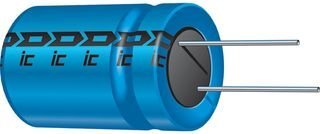

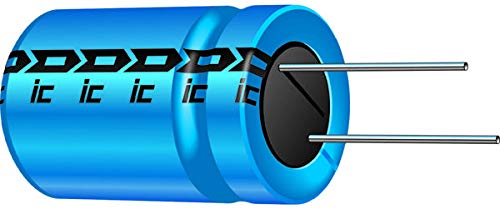

General Purpose Capacitor - 35V 1-99uF

General Purpose Capacitor - 35V 1-99uF

Regular price $0.04 USD
Regular price Sale price $0.04 USD
Sale Sold out
Shipping calculated at checkout.

37 in stock

Condition: New
Brand: ILLINOIS CAPACITOR
MPN: 476CKS035M
MPN Xref:476CKS035M, 69K7881, 1167946, 70111700

This capacitor is a general purpose component with a capacitance range of 1 to 99 uF and a voltage rating of 35V. Its package is active and it has a through-hole termination.
Capacitance 35 V
Capacitance Range 1 to 99 uF
Case Size Dia. 0.197 x L 0.433 in ; Dia. 5 x L 11 mm
Configuration Radial ; Can
Diameter 5 mm
Dissipation Factor 0.12 at 120 Hz
Element Material Aluminum Electrolytic
ESR 4.233 Ohms
Lead Diameter 0.5 ; 0.05 mm
Lead Length 15 mm
Lead Pitch 2.0 mm +/- 0.5 mm
Lead Spacing 0.197" Dia (5.00mm)
Length 0.43 in
Length Tolerance +1.5mm
Maximum Operating Temperature 85 C
Minimum Operating Temperature -40 C
Mounting Type Radial, Can
Ripple Current 130 mA
Series CKS
Surge Voltage 44 VDC
Termination Through Hole
Test Condition ESR @ +20°C, 120 Hz
Tolerance
Voltage Rating 35 VDC
Category Capacitors
Package Active
Part Status ?20%
ESR (Equivalent Series Resistance) 4.233Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85
Operating Temperature Polar
Polarization -
Ratings General Purpose
Applications
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) -
Surface Mount Land Size Through Hole
Package / Case 47 ?F
Voltage - Rated 140 mA @ 120 Hz
Ripple Current @ Low Frequency 231 mA @ 100 kHz
Stock
Lead Free Status / RoHS Status RoHS Compliant
Manufacturer Part Number 476CKS035M
Manufacturer Standard Lead Time 22 Weeks
Packaging Bulk Pack
Ripple Current - High Frequency 231mA @ 100kHz
Ripple Current - Low Frequency 140mA @ 120Hz
Standard Package 1,000
