Compact Definite Purpose Magnetic Contactor - 20A/25A 208/240V AC

Condition: New
Brand: DAYTON
MPN: 6GNU0
MPN Xref:6GNU0

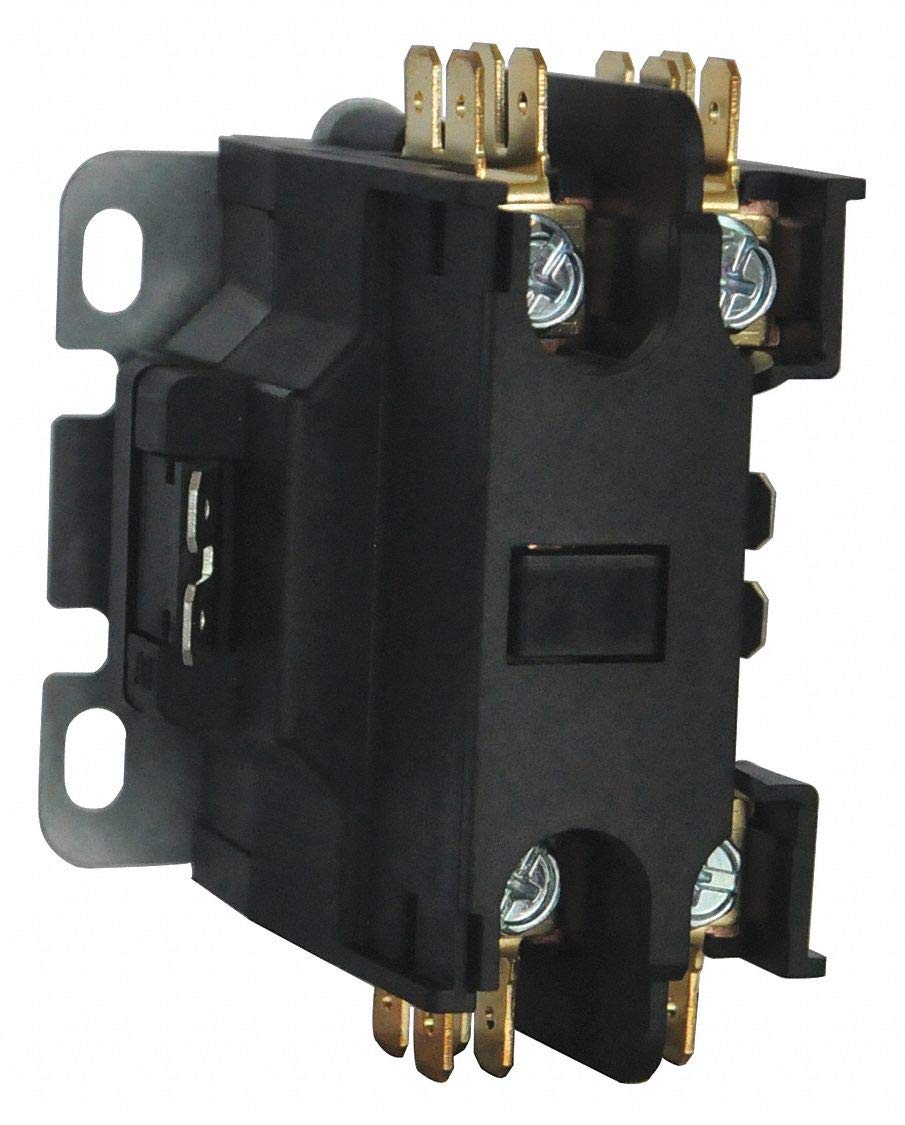

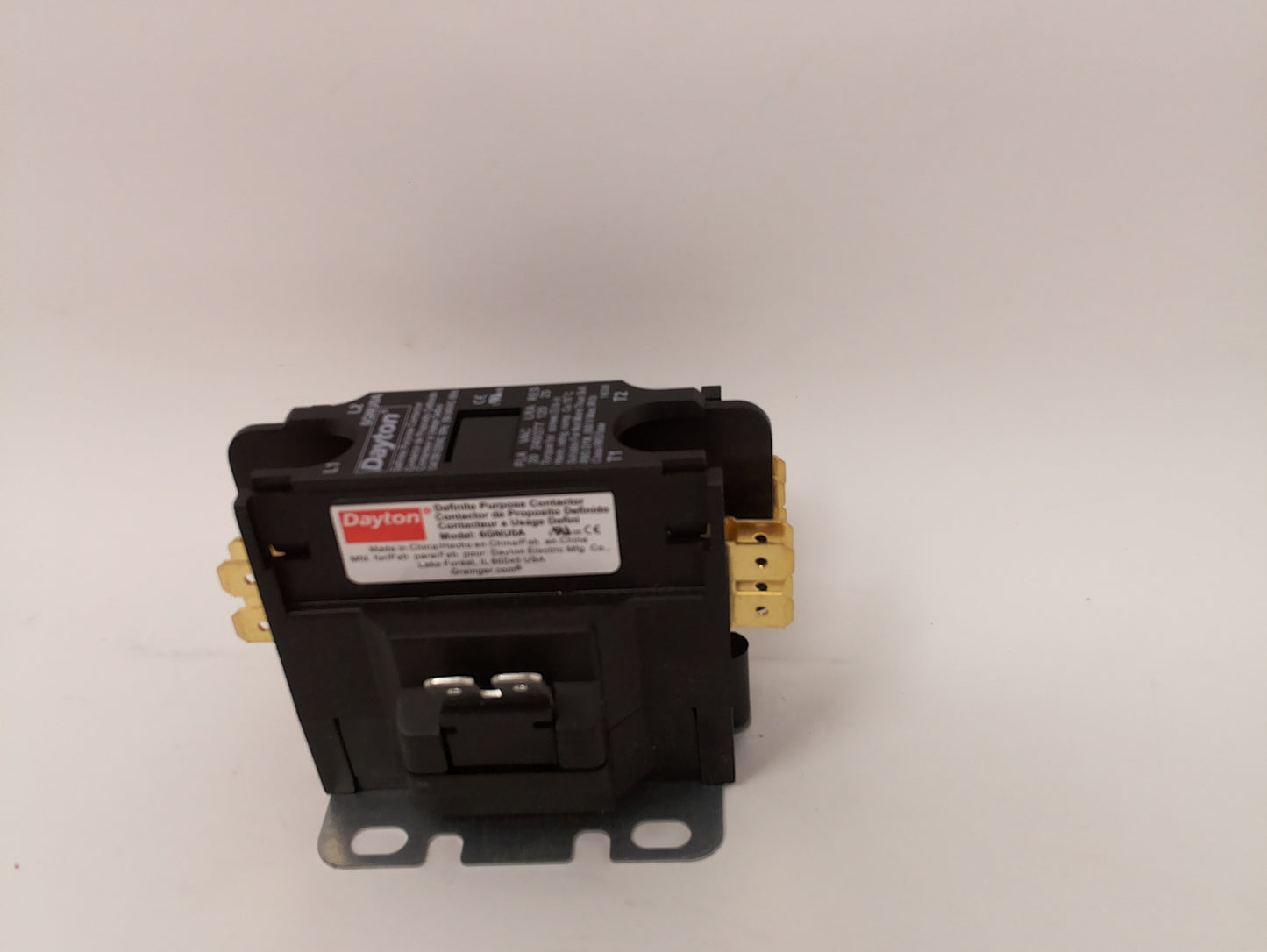

This Definite Purpose Magnetic Contactor is a compact and non-reversing contactor. It has a height of 2.64 in, width of 2.03 in, and depth of 3.41 in. It is suitable for both inductive and resistive loads with full load amps of 20 A and 25 A respectively. It has a coil volts of 208/240V AC and a number of poles of 1+N. It is designed for use in 50/60 Hz applications with no enclosure. It has certifications according to GB14048.4, IEC60947-4-1, and UL530 standards.

Height	2.64 in
Width	2.03 in
Depth	3.41 in
Item	Definite Purpose Magnetic Contactor
Full Load Amps-Inductive	20 A
Action	Non-Reversing
Full Load Amps-Resistive	25 A
Number of Poles	1+N
Coil Volts	208/240V AC
Reversing	No
HP @ 1 Phase - 230V	7-1/2
HP @ 1 Phase - 120V	3/4 hp
HP @ 1 Phase - 240V	7 1/2 hp
Enclosure NEMA Rating	No Enclosure
Standards	GB14048.4, IEC60947-4-1, UL530
Hz	50/60
Enclosure Type	Open
Series	Compact
Product Type	Definite Purpose Magnetic Contactor
