Pneumatic Condensate Separator with Automatic Internal Drain, 50 cfm
Pneumatic Condensate Separator with Automatic Internal Drain, 50 cfm
Regular price
$31.64 USD
Regular price
Sale price
$31.64 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Condition: New
Brand: WILKERSON
MPN: WSA-04-FM0
MPN Xref:WSA-04-FM0

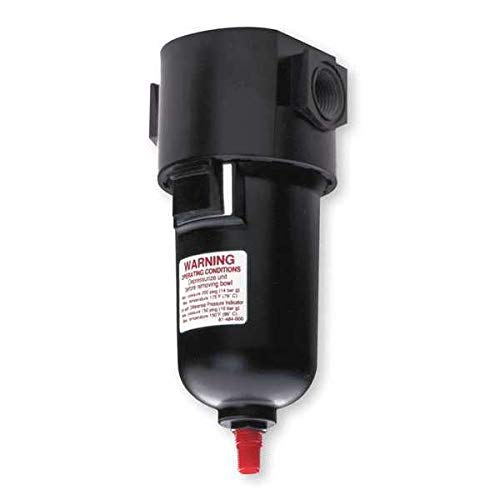

This pneumatic condensate separator is designed to remove water from compressed air systems. It has a maximum flow rate of 50 cfm and can operate at temperatures ranging from 32 to 150 degrees F. The separator features a cast zinc body and an automatic internal drain for easy maintenance. It also includes a bowl guard made of metal and a nitrile seal. The inlet and outlet sizes are both 1/2 in NPT. The overall dimensions of the separator are 7 5/16 in length, 3 7/20 in outside diameter, and 3 3/8 in width.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: WILKERSON
MPN: WSA-04-FM0
MPN Xref:WSA-04-FM0
This pneumatic condensate separator is designed to remove water from compressed air systems. It has a maximum flow rate of 50 cfm and can operate at temperatures ranging from 32 to 150 degrees F. The separator features a cast zinc body and an automatic internal drain for easy maintenance. It also includes a bowl guard made of metal and a nitrile seal. The inlet and outlet sizes are both 1/2 in NPT. The overall dimensions of the separator are 7 5/16 in length, 3 7/20 in outside diameter, and 3 3/8 in width.
| Item | Pneumatic Condensate Separator |
| Air Inlet Type | NPT |
| Maximum Flow Rate | 50 cfm |
| Minimum Operating Temperature | 32 Degrees F |
| Outside Diameter | 3 7/20 in |
| Weight | 2.6 lb |
| Air Outlet Type | NPT |
| Bowl Guard Material | Metal |
| Drain Type | Automatic |
| Filtered Substance | Water |
| Maximum Operating Temperature | 150 Degrees F |
| Overall Width | 3 3/8 in |
| Seal Material | Nitrile |
| Air Inlet Size | 1/2 in |
| Maximum Flow @ 100 psi | 50 cfm |
| Maximum Operating Pressure | 200 psi |
| Type | Automatic Internal Drain |
| Overall Length | 7 5/16 in |
| Air Outlet Size | 1/2 in |
| Body Material | Cast Zinc |
| Drain Included | Yes |
| Element Size Category | Universal |
| For Substance Type | Liquid |
| Overall Depth | 7 5/16 in |
| Pressure Drop | 1 psid |
| Standards | ISO 8573 |
| SKU | ZO-G1147465 |
| Current Stock | 34 |
| Mpn | WSA-04-FM0 |
| SubCategory | Pneumatics |
| International Shipping | No |
| NPT Size | 1/2 in |
| Dia. | 3.35 |
| Height (In.) | 7.34 in |
| Inlet Size (Combined) | 1/2 in NPT |
| Float Type | Automatic Internal Drain |
| Max. Flow (CFM) | 50 |
| Max. Pressure (PSI) | 200 psi |
| Max. Temp. | 150 Degrees F |
| Housing | Cast Zinc |
| Differential Pressure (PSI) | 1 |
| Auto Drain Stock Number | Included |
| Max. Flow CFM @ 100 PSI | 50 |
