240V Varistor Disc 7mm - 1.2 kA Surge Protection

Condition: New
Brand: LITTELFUSE
MPN: V150LA2PX2855
MPN Xref:V150LA2P, WVDR2481, 58K7274, 8007034, 70184681, 576-V150LA2P, V150LA2PX1347, V150LA2PX1347-ND, 576-V150LA2PX2855

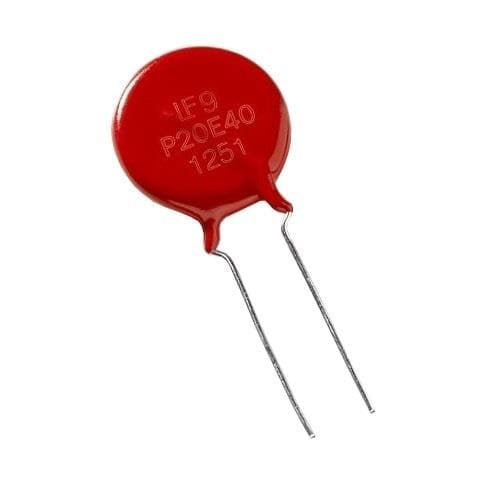

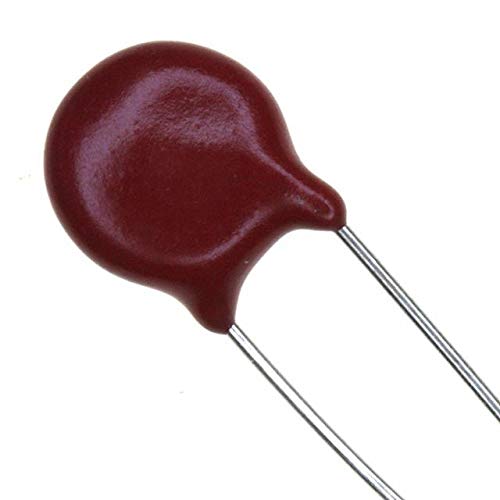

This is a 240V 1.2 kA varistor with a disc diameter of 7mm. It has a surge energy rating of 13J and is suitable for through hole mounting.

Part Status	Active
Energy	13J
Operating Temperature	-55?C ~ 85?C (TA)
Mounting Type	Through Hole
Package / Case	Disc 7mm
Number of Circuits	1
Maximum AC Volts	150 V
Maximum DC Volts	200 V
Varistor Voltage (Min)	216 V
Varistor Voltage (Typ)	240 V
Varistor Voltage (Max)	264 V
Current - Surge	1.2 kA
Capacitance @ Frequency	150 pF @ 1 MHz
Manufacturer Part Number	V150LA2P
Item Number	V150LA2P
Product Series	LA
Typical Capacitance (pf)	150 pF
Max Applied Voltage RMS	150 Vrms
Max Applied Voltage DC	200 VDC
Energy (Joules)	13 J
Max Clamping Amps	10 A
Max Clamping Volts	395 V
Peak Current	1200 A
Lead Type	Straight(Bulk)
Marking on Part	P1502
Approvals	CSA, UR, VDE
Net Weight	0.0015 lbs
Gross Weight	0.0015 lbs
Manufacturer Product Number	V150LA2P
Description	VARISTOR 240V 1.2KA DISC 7MM
Manufacturer Standard Lead Time	12 Weeks
Detailed Description	240 V 1.2 kA Varistor 1 Circuit Through Hole Disc 7mm
Category	Circuit Protection
Series	LA
Package	Bulk
Product Status	Active
Type of varistor	metal-oxide
Mounting	Radial
Varistor voltage	240V
Varistor max current 8/20?s	1.2kA
Max body dimensions	?7mm
Energy E10/1000?s	13J
Operating temperature	-55...85?C
Number of terminals	2
Max. operating voltage	150V AC,
Package/Case	DIP-2
Product Categories	Varistors - MOV
RoHs Status	Green
In-stock	10000
Diameter	7 mm
Peak Surge Current	1.2 kA
Surge Energy Rating	13 J
Capacitance	150 pF
Operating Temperature Range	- 55 C to + 85 C
Packaging	Bulk
Case Diameter	7 mm
Current Rating	10 A
Dimensions	7 mm Dia.
Factory Pack Quantity	1500
Termination Style	Radial
Varistor Voltage	212 V to 268 V
AC Voltage	150 V
Clamping Voltage	395 V
DC Voltage	200 V
Energy Rating	13 Joules
Mounting Style	Through Hole
Operating Voltage	200 V
Package Type	Disc 7mm
Technology	Metal Oxide
Type	MOV
