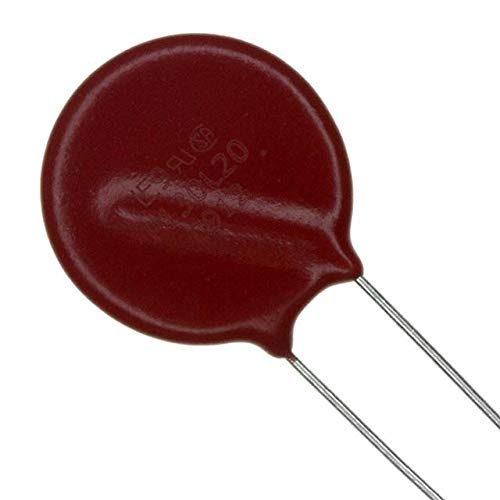

VARISTOR 205V 1.2KA DISC 7MM

Condition: New
Brand: LITTELFUSE
MPN: V130LA2P
MPN Xref:V130LA2P, 58K7216, 1057180, LITT-0013929, F3002-ND, V130LA2PX1347, V130LA2PX1347-ND, 576-V130LA2P, V130LA2PX2855

VARISTOR 205V 1.2KA DISC 7MM - Peak Surge Current: 1.2 kA, Capacitance: 180 pF, Series: LA Series, LA, Bulk, Lead Spacing: 4 mm to 6 mm, Product Category: Varistors, Current Rating: 10 A, Voltage Rating AC: 130 V, Alternate Part No.: 576-V130LA2P, Operating Temperature Range: - 55 C to + 85 C, Diameter: 7 mm, Mounting: Radial, THT, Voltage Rating DC: 175 V, Case Diameter: 7 mm, Surge Energy Rating: 11 J, Manufacturer Part No.: V130LA2P, Termination Style: Radial, Varistor Voltage: 184 V to 228 V, 225.5 V, Packaging: Bulk, Product: MOV, Dimensions: 7 mm Dia. x 5.6 mm H, Clamping Voltage: 340 V, Manufacturer Part Number: V130LA2P, Item Number: V130LA2P, Product Series: LA, Typical Capacitance (pf): 180 pF, Max Applied Voltage RMS: 130 Vrms, Max Applied Voltage DC: 175 VDC, Energy (Joules): 11 J, Max Clamping Amps: 10 A, Max Clamping Volts: 340 V, Peak Current: 1,200 A, 1200 A, Lead Type: Straight(Bulk), Marking on Part: P1302, Approvals: CSA, UR, VDE, Net Weight: 0 lbs, Gross Weight: 0 lbs, Category: Circuit Protection, Package: Bulk, Active, Part Status: 11J, Energy: 11J, -55?C ~ 85?C (TA), Operating Temperature: -55?C ~ 85?C (TA), Through Hole, Mounting Type: Disc 7mm, Through Hole, Package / Case: 1, Disc 7mm, Number of Circuits: 130 V, 1, Maximum AC Volts: 130 V, 175 V, Maximum DC Volts: 184.5 V, 175 V, Varistor Voltage (Min): 205 V, 184.5 V, Varistor Voltage (Typ): 205 V, 225.5 V, Varistor Voltage (Max): 1.2 kA, 225.5 V, Current - Surge: 1.2 kA, 180 pF @ 1 MHz, Manufacturer Product Number: V130LA2P, Description: VARISTOR 205V 1.2KA DISC 7MM, Manufacturer Standard Lead Time: 12 Weeks, Detailed Description: 205 V 1.2 kA Varistor 1 Circuit Through Hole Disc 7mm, Product Status: Active, Capacitance @ Frequency: 180 pF @ 1 MHz, Package/Case: LITTEHUSE, Product Categories: Varistors - MOV, RoHs Status: Green, In-stock: 130000, Factory Pack Quantity: 1500, Type of varistor: metal-oxide, Varistor voltage: 205V, Varistor max current 8/20?s: 1.2kA, Max body dimensions: ?7mm, Terminal pitch: 6mm, Energy E10/1000?s: 11J, Max. operating voltage: 130V AC, AC Voltage: 130 V, DC Voltage: 175 V, Energy Rating: 11 Joules, Mounting Style: Through Hole, Operating Voltage: 175 V, Package Type: Disc 7mm, Technology: Metal Oxide, Type: MOV

Peak Surge Current	1.2 kA
Capacitance	180 pF
Series	LA
Lead Spacing	4 mm to 6 mm
Product Category	Varistors
Current Rating	10 A
Voltage Rating AC	130 V
Alternate Part No.	576-V130LA2P
Operating Temperature Range	- 55 C to + 85 C
Diameter	7 mm
Mounting	Radial
Voltage Rating DC	175 V
Case Diameter	7 mm
Surge Energy Rating	11 J
Manufacturer Part No.	V130LA2P
Termination Style	Radial
Varistor Voltage	225.5 V
Packaging	Bulk
Product	MOV
Dimensions	7 mm Dia. x 5.6 mm H
Clamping Voltage	340 V
Manufacturer Part Number	V130LA2P
Item Number	V130LA2P
Product Series	LA
Typical Capacitance (pf)	180 pF
Max Applied Voltage RMS	130 Vrms
Max Applied Voltage DC	175 VDC
Energy (Joules)	11 J
Max Clamping Amps	10 A
Max Clamping Volts	340 V
Peak Current	1200 A
Lead Type	Straight(Bulk)
Marking on Part	P1302
Approvals	CSA, UR, VDE
Net Weight	0 lbs
Gross Weight	0 lbs
Category	Circuit Protection
Package	Active
Part Status	11J
Energy	11J
Operating Temperature	-55?C ~ 85?C (TA)
Mounting Type	Disc 7mm
Package / Case	1
Number of Circuits	1
Maximum AC Volts	175 V
Maximum DC Volts	175 V
Varistor Voltage (Min)	205 V
Varistor Voltage (Typ)	205 V
Varistor Voltage (Max)	1.2 kA
Current - Surge	1.2 kA
Manufacturer Product Number	V130LA2P
Description	VARISTOR 205V 1.2KA DISC 7MM
Manufacturer Standard Lead Time	12 Weeks
Detailed Description	205 V 1.2 kA Varistor 1 Circuit Through Hole Disc 7mm
Product Status	Active
Capacitance @ Frequency	180 pF @ 1 MHz
Package/Case	LITTEHUSE
Product Categories	Varistors - MOV
RoHs Status	Green
In-stock	130000
Factory Pack Quantity	1500
Type of varistor	metal-oxide
Varistor voltage	205V
Varistor max current 8/20?s	1.2kA
Max body dimensions	?7mm
Terminal pitch	6mm
Energy E10/1000?s	11J
Max. operating voltage	130V AC,
AC Voltage	130 V
DC Voltage	175 V
Energy Rating	11 Joules
Mounting Style	Through Hole
Operating Voltage	175 V
Package Type	Disc 7mm
Technology	Metal Oxide
Type	MOV
