Fuse Board Mount 800mA 250VAC
Fuse Board Mount 800mA 250VAC
Regular price
$0.29 USD
Regular price
Sale price
$0.29 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
Condition: New
Brand: Littelfuse Inc.
MPN: 37208000411
MPN Xref:37208000411, WK4246BK-ND, 576-37208000411, 102459, 3720800, LITT-0018513, FUSE4908, 60M5893, 13306867
800 mA 250 V AC/DC Fuse Board Mount Through Hole Radial Can Vertical
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Littelfuse Inc.
MPN: 37208000411
MPN Xref:37208000411, WK4246BK-ND, 576-37208000411, 102459, 3720800, LITT-0018513, FUSE4908, 60M5893, 13306867
800 mA 250 V AC/DC Fuse Board Mount Through Hole Radial Can Vertical
| Operating Temperature Range | - 40 C to + 85 C |

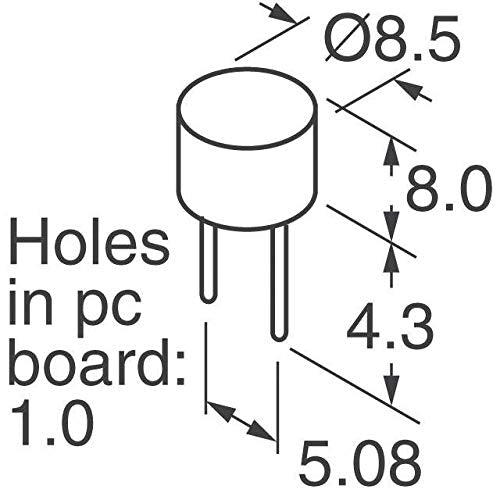

| Dimensions | 8 mm L x 8.5 mm D |
| Series | 372 |
| Product Category | Fuses with Leads (Through Hole) |
| Brand | Littelfuse |
| Tradename | TR5 |
| Product Type | PCB Mount Fuse |
| Type | PCB Mount Fuse |
| Body Style | Leaded Fuses |
| Packaging | Bulk |
| Case Diameter | 8.5 mm |
| Product | Specialty Fuses |
| Termination Style | Radial |
| Alternate Part No. | 576-37208000411 |
| Fuse Size/Group | TR5 |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Manufacturer | LITTELFUSE |
| Interrupt Rating | 35 Amps at 250 VoltsAC |
| Indicator Style | Without Indicator |
| Case Length | 8 mm |
| Current Rating | 800 mA |
| Manufacturer Part No. | 37208000411 |
| Voltage Rating AC | 250 V |
| Type of fuse | fuse |
| Fuse characteristics | time-lag |
| Breaking capacity | 35A |
| Current rating | 800mA |
| Rated voltage | 250V AC |
| Mounting | THT |
| Kind of fuse | miniature |
| Fuse size | TR5 |
| Breaking characteristics | 1.5I |
| Max voltage drop | 110mV |
| Contact material | copper |
| Manufacturer series | 372 |
| Terminal pitch | 5.08mm |
| Energy I2t | 3.8A |
| Fuses application | battery chargers, |
| Soldering temperature | 260?C / 3 s |
| Power dissipation | 220mW |
| Pin diameter | 0.6mm |
| Kind of package | bulk |
| Contact plating | tinned |
| Operating temperature | -40...85?C |
| Lead length | 4.3mm |
| Manufacturer Product Number | 37208000411 |
| Description | FUSE BRD MNT 800MA 250VAC RADIAL |
| Manufacturer Standard Lead Time | 12 Weeks |
| Detailed Description | 800 mA 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical |
| Category | Circuit Protection |
| Package | Bulk |
| Product Status | Active |
| Mounting Type | Through Hole |
| Current Rating (Amps) | 800 mA |
| Voltage Rating - AC | 250 V |
| Response Time | Slow Blow |
| Package / Case | Radial, Can, Vertical |
| Breaking Capacity @ Rated Voltage | 35A |
| Melting I?t | 5.76 |
| Approval Agency | CCC, cURus, SEMKO, VDE |
| Operating Temperature | -40?C ~ 85?C |
| Color | - |
| Size / Dimension | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) |
| DC Cold Resistance | 0.1 Ohms |
| Gross Weight | 0 lbs |
