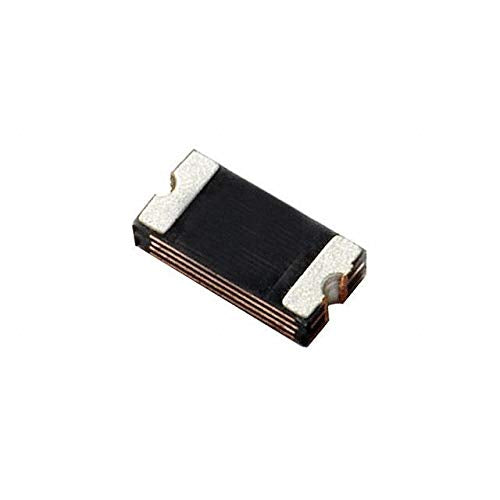

PolyFuse 1206L Series - Resettable PTC Circuit Protection Fuse

PolyFuse 1206L Series - Resettable PTC Circuit Protection Fuse

Regular price $0.14 USD
Regular price Sale price $0.14 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left

Condition: New
MPN: 1206L020YR
MPN Xref:1206L020YR, 05M2300, F2109CT-ND, 1206L020YR**MULT1, F2109TR-ND, 1206L020, LITT-0035554, 13324017, 17X0308

This PolyFuse 1206L Series is a resettable PTC circuit protection fuse with a maximum voltage of 24V. It has a current rating of 100A and operates in a temperature range of -40°C to 85°C. It is surface mount and comes in a package size of 1206 (3216 metric). It is RoHS compliant and has approval from cURus and TUV. It is ideal for PCB mounted applications.
Category Circuit Protection
Series 1206L
Package Tape & Reel (TR)
Part Status Active
Type Polymeric
Voltage - Max 24V
Operating Temperature -40?C ~ 85?C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave
Size / Dimension 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) -
Thickness (Max) 0.039" (1.00mm)
Lead Spacing -
Approval Agency cURus, TUV
Current - Max 100 A
Current - Hold (Ih) (Max) 200 mA
Current - Trip (It) 420 mA
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 650 mOhms
Resistance - Post Trip (R1) (Max) 2.6 Ohms
Product Status Active
Package/Case 1206 (3216 metric)
Product Categories PTC Resettable Fuses
RoHs Status Rohs
In-stock 50000
Mounting Style SMD/SMT
Termination Style SMD/SMT
Trip Current 0.42 A
Operating Temperature Range - 40 C to + 85 C
Current Rating (Max) 100 A
Dimensions 3.5 mm L x 1.8 mm W x 1 mm H
Maximum Voltage 24 VDC
Packaging Reel
Factory Pack Quantity 4000
Type of fuse PTC polymer
Current rating 0.2A
Max surge current 100A
Switched current 420mA
Mounting SMD
Max. voltage 24V DC
Power 0.6W
Min. resistance 650m?
Max resistance 2.6?
Manufacturer series 1206L
Operating temperature -40...85?C
Current Rating 0.2 A
Primary Type Resettable Fuses
Size 1206
Termination PCB ; Surface Mount
