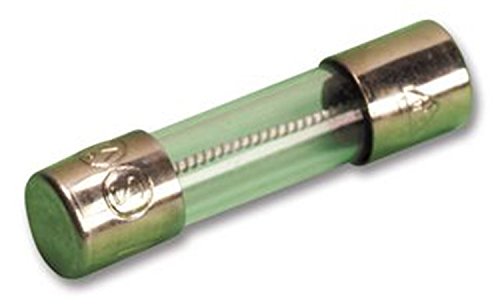

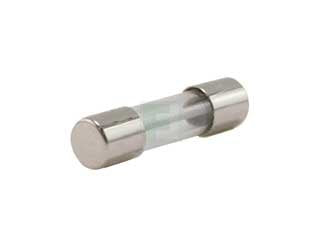

SLO-BLO 5X20 GLASS BODY FUSE

Condition: New
Brand: LITTELFUSE
MPN: 0218002.MXP
MPN Xref:0218002.MXP, 13317773, 218002XP, 576-0218002.MXP, F1746-ND, 1271686, 70519115, 42K9382, FUSE609

This is a SLO-BLO 5X20 GLASS BODY FUSE. It is a specialty fuse with a time lag characteristic and a breaking capacity of 35A. The current rating is 2A and the rated voltage is 250V AC. It is suitable for standard applications and has a max voltage drop of 150mV.

Category	Circuit Protection
Series	218 Series
Package	Active
Part Status	Holder
Mounting Type	Surface Mount
Fuse Type	Slow Blow
Response Time	5mm x 20mm
Package / Case	35A
Breaking Capacity @ Rated Voltage	CCC, CE, CSA, K-MARK, PSE, SEMKO, UL, VDE
Approval Agency	-55?C ~ 125?C
Operating Temperature	-
Color	0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Size / Dimension	14.45
Melting I?t	2 A
Current Rating (Amps)	250 V
Voltage Rating - AC	0.0293 Ohms
Manufacturer Part Number	0218002.MXP
Item Number	0218002.MXP
Product Series	218
Material	Glass
Current Rating	2 A
Voltage (AC)	250 VAC
Voltage (DC)	250 VDC
Characteristic	Time Delay
Package Type	Cartridge
Interrupt Rating	35 kA @ 250 V
Trip Indicator	No
Alarm Contact	No
Diameter (mm)	5.1 mm
Body Length (mm)	20 mm
Approvals	CCC ; CE ; CSA ; K-MARK ; PSE ; SEMKO ; UL ; VDE
RoHS	Yes
Net Weight	0 lbs
Gross Weight	0 lbs
Package/Case	520MM
Product Categories	Fuse
RoHs Status	Rohs
In-stock	10000
Mounting Style	Holder
Termination Style	Clip
Fuse Size / Group	5 mm x 20 mm
Dimensions	20 mm L x 5.2 mm D
Type	Glass Fuse
Case Diameter	5.2 mm
Case Length	20 mm
Indicator Style	Without Indicator
Operating Temperature Range	- 55 C to + 125 C
Packaging	Bulk
Product	Specialty Fuses
Resistance	29 mOhms
Factory Pack Quantity	1000
Description:	SLO-BLO 5X20 GLASS BODY FUSE BULK 1000-PACK
MFG Part #:	0218002.MXP
UPC:	07945890479
Standard Pack:	Order QTY must be in multiples of 1000
Case Pack	1000
Standards	California Proposition 65
Type of fuse	fuse
Fuse characteristics	time-lag
Breaking capacity	35A
Current rating	2A
Rated voltage	250V AC
Kind of fuse	cylindrical,
Fuse size	5x20mm
Breaking characteristics	2.1I
Max voltage drop	150mV
Contact material	brass
Manufacturer series	218
Energy I2t	14.45A
Fuses application	standard applications
Soldering temperature	260?C / 5 s
Power dissipation	1.6W
Kind of package	bag
Contact plating	nickel plated
Operating temperature	-55...125?C
Action	Slow
Alternate Mfr Part Number	7382797P
Breaking Capacity	35 A
Primary Type	Single Use Fuses
Speed	Time Lag
Temperature Range	55 to 125 C
Termination	Cartridge
Voltage Rating	250 V
