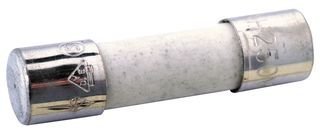

Time-Lag Ceramic Fuse - 8A, 1.5kA, 250V AC, 5x20mm

Time-Lag Ceramic Fuse - 8A, 1.5kA, 250V AC, 5x20mm

Regular price $0.18 USD
Regular price Sale price $0.18 USD
Sale Sold out
Shipping calculated at checkout.

754 in stock

Condition: New
Brand: LITTELFUSE
MPN: 0215008.HXP
MPN Xref:0215008.HXP, LITT-0011298, 215008.XP, F2668-ND, 1707468, 576-0215008.HXP, 26K7633

This is a time-lag fuse with a current rating of 8A and a breaking capacity of 1.5kA. It is made of ceramic and has a size of 5x20mm. The fuse is suitable for applications with a rated voltage of 250V AC and has a maximum voltage drop of 0.1V. It comes in a bulk package and weighs 0.01 lbs.
Type of fuse fuse
Fuse characteristics time-lag
Breaking capacity 1.5kA
Current rating 8A
Rated voltage 250V AC
Kind of fuse ceramic,
Fuse size 5x20mm
Breaking characteristics 2.75I
Max voltage drop 0.1V
Kind of package bulk
Weight (lbs) (0.01)
Case Style Ceramic Cartridge
Voltage (V) 250
Type GMA Slow Acting
Manufacturer Part # 0215008.HXP
Current 8
Case Pack 100
Category Circuit Protection
Series Bulk
Package Active
Part Status Holder
Mounting Type Cartridge, Ceramic
Fuse Type Slow Blow
Response Time 5mm x 20mm
Package / Case 1.5kA
Breaking Capacity @ Rated Voltage CE, CSA, KC, PSE, SEMKO, UL, VDE
Approval Agency -55?C ~ 125?C
Operating Temperature -
Color 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Size / Dimension 209.88
Melting I?t 8 A
Current Rating (Amps) 250 V
Voltage Rating - AC 0.0092 Ohms
