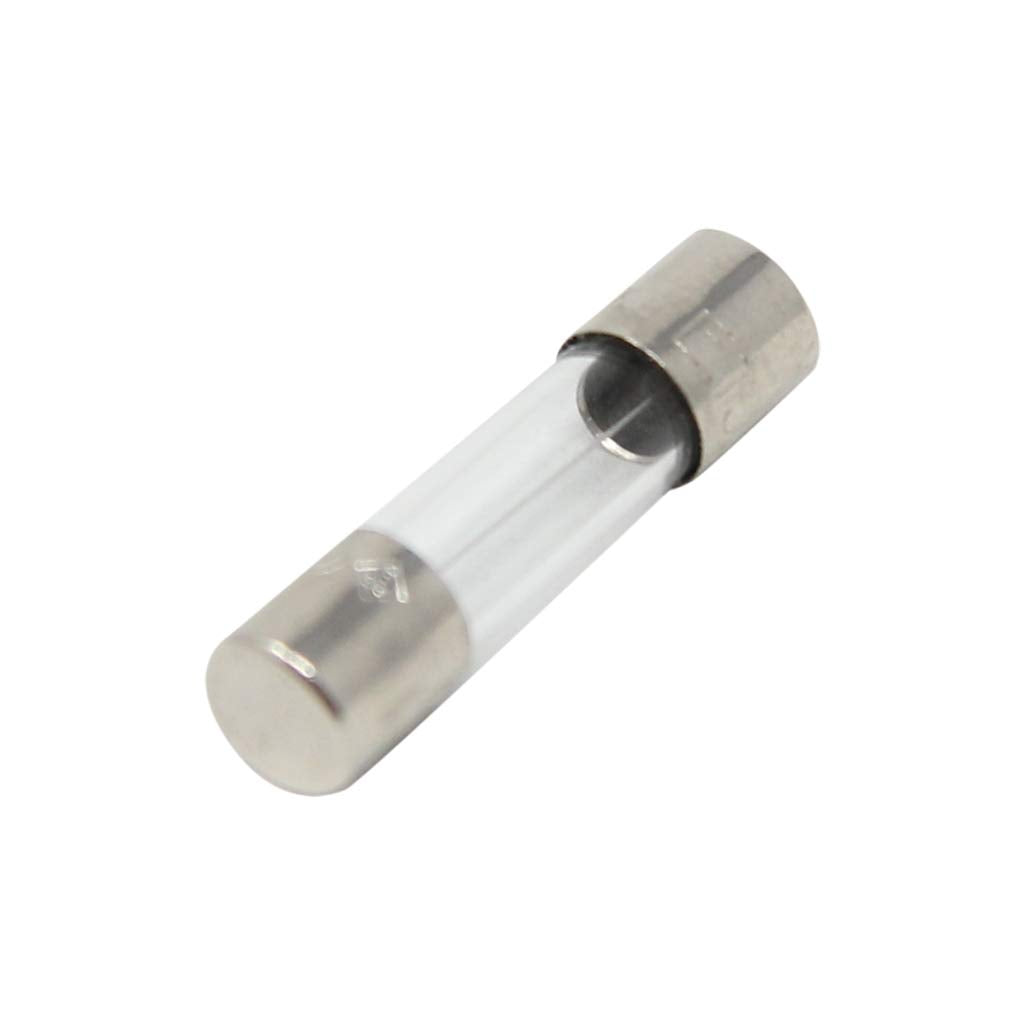

2A Glass Fuse - Slow Blow - 5x20mm - 250V AC

2A Glass Fuse - Slow Blow - 5x20mm - 250V AC

Regular price $0.22 USD
Regular price Sale price $0.22 USD
Sale Sold out
Shipping calculated at checkout.

674 in stock

Condition: New
MPN: 0213002.MXP
MPN Xref:0213002.MXP, F3085-ND, 26K7595, 70305600, LITT-0011251, 70332387, 0213002XP, 9922270, 5412953

This is a 2A glass fuse with a slow blow response time. It has a size of 5mm x 20mm and a voltage rating of 250V AC. It is suitable for standard applications.
Part Status Active
Mounting Type Holder
Fuse Type Time Delay / Slow Blow
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 35A
Approval Agency BSI, CCC, CE, CSA, PSE, SEMKO, UR, VDE
Operating Temperature -55?C ~ 125?C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Melting I?t 92.705
Current Rating (Amps) 2 A
Voltage Rating - AC 250 V
DC Cold Resistance 0.0452 Ohms
Item Number: 0213002.MXP
Item Category:
Package/Case 5mm x 20mm
Product Categories Fuse
RoHs Status Green
In-stock 58000
Mounting Style Holder
Termination Style Clip
Fuse Size / Group 5 mm x 20 mm
Dimensions 20 mm L x 5.2 mm D
Series 213
Type Cartridge Fuses
Case Diameter 5.2 mm
Case Length 20 mm
Indicator Style Without Indicator
Interrupt Rating 35 A at 250 VAC
Operating Temperature Range - 55 C to + 125 C
Packaging Bulk
Product Specialty Fuses
Resistance 44 mOhms
Factory Pack Quantity 1000
Product Type Glass Fuse
Voltage Rating AC 250 V
Alternate Part No. 576-0213002.MXP
Product Category Cartridge Fuses
Body Style Cylindrical
Current Rating 2 A
Tradename Slo-Blo
Fuse Size/Group 5 mm x 20 mm
Manufacturer Part No. 0213002.MXP
Type of fuse fuse
Fuse characteristics time-lag
Breaking capacity 35A
Current rating 2A
Rated voltage 250V AC
Kind of fuse cylindrical,
Fuse size 5x20mm
Breaking characteristics 1.5I
Max voltage drop 0.15V
Contact material brass
Manufacturer series 213
Energy I2t 92.705A
Fuses application standard applications
Soldering temperature 250?C / 5 s
Power dissipation 1.6W
Kind of package bag
Contact plating nickel plated
Operating temperature -55...125?C
AC Voltage 250 V
Action Slow
Alternate Mfr Part Number 5412953
Approvals BSI ; CCC ; CE ; CSA ; PSE ; SEMKO ; UR ; VDE
Breaking Capacity 35 A
Package Type 5mm x 20mm
Primary Type Single Use Fuses
Speed Time Lag
Temperature Range 55 to 125 C
Termination Cartridge
Voltage Rating 250 V
