1/2" Aluminum Shaft Collar for Hardware, Fasteners, Accessories

Condition: New
Brand: Ruland Manufacturing
MPN: SP-8HX-A
MPN Xref:SP-8HX-A

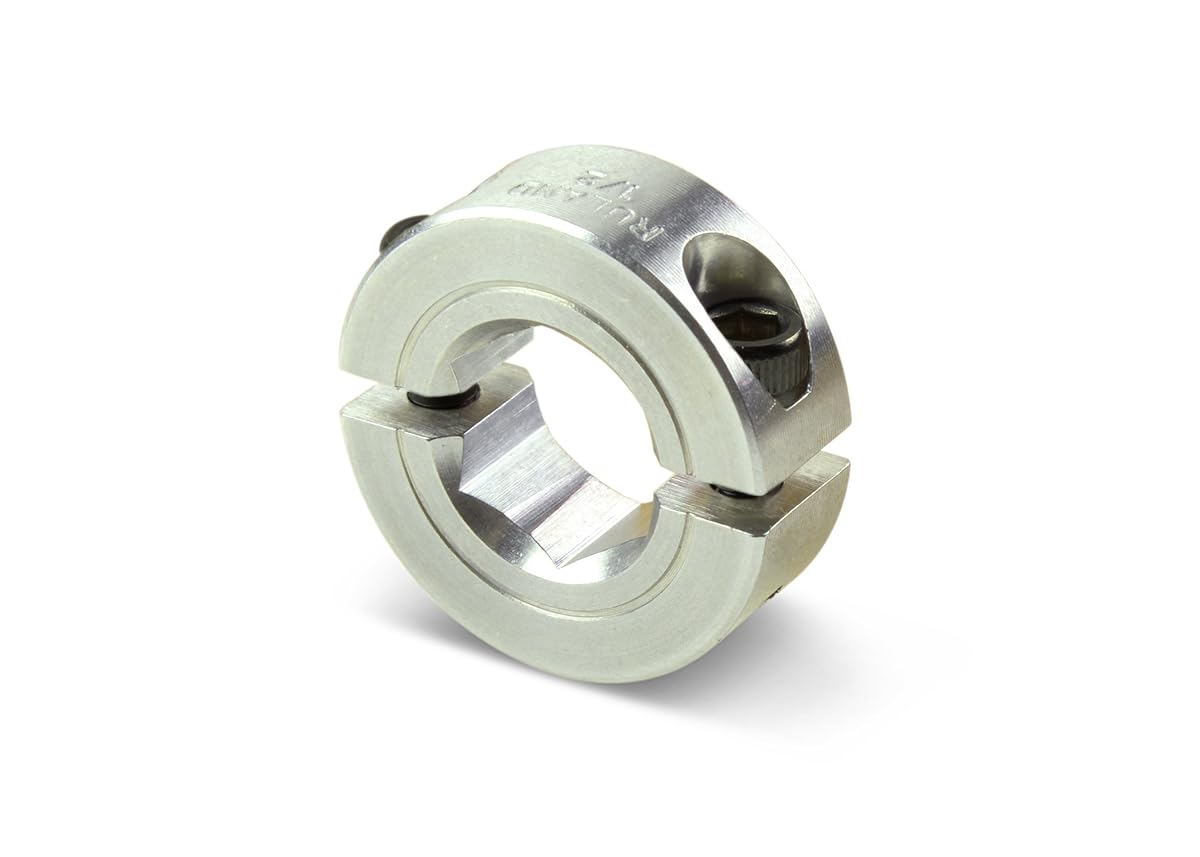

1/2" ALUMINUM SHAFT COLLAR is a two-piece clamp-style shaft collar made from 2024-T351 aluminum. It has a 0.5000-inch bore and measures 1.125" (28.58mm) in outer diameter and 0.406" (10.31mm) in width. It is designed for use in hardware, fasteners, and accessories applications. The collar comes with two alloy steel screws with a #8-32 size and a recommended seating torque of 49 lb-in. It has an operating temperature range of -40°F to 225°F (-40°C to 107°C) and weighs 0.0337 lbs.

Manufacturer Product Number	SP-8HX-A
Description	1/2" ALUMINUM SHAFT COLLAR
Category	Hardware, Fasteners, Accessories
Series	-
Package	Bag
Product Status	Active
Type	Two-Piece
Specifications	1.125" (28.58mm) Outer Diameter x 0.406" (10.31mm) Width
Bore (B)	0.5000 in
Bore Tolerance	+0.0020 in / +0.0005 in
Outer Diameter (OD)	1 1/8 in
Clearance Diameter (C) MAX	1.281 in
Width (W)	0.406 in
Width Tolerance	+0.003 in / -0.010 in
Recommended Gap	0.063 in
Recommended Shaft Tolerance	+0.0000 in / -0.0005 in
Forged Clamp Screw	#8-32
Screw Material	Alloy Steel
Hex Wrench Size	9/64 in
Screw Finish	Black Oxide
Seating Torque	49 lb-in
Screw Location (R)	0.406 in
Number of Screws	2 ea
Material Specification	2024-T351 Aluminum Bar
Finish Specification	Bright, No Plating
Country of Origin	USA
Temperature	-40°F to 225°F (-40°C to 107°C)
Weight (lbs)	0.033700
UPC	634529214886
Tariff Code	8483.60.8000
UNSPC	31162811
Note 1	Performance ratings are for guidance only. The user must determine suitability for a particular application.
Prop 65
UPC Code	63452921488
Bore Dia.	0.5000 in
Material	Aluminum
Number of Pieces	2
Collar Style	Clamp
Outside Dia.	1 1/8 in
Dimension Type	Inch
Width	0.406 in
Screw Size	#8-32
Operating Temp. Range	-40?F to 225?F (-40?C to 107?C)
Clearance Dia.	1.281 in
Item	Shaft Collar,3/8" Hex Bore,Aluminum
Style	Hex
Screw Seating Torque	49 lb-in
Weight	0.0337 lbs
Country of Origin (subject to change)	United States
