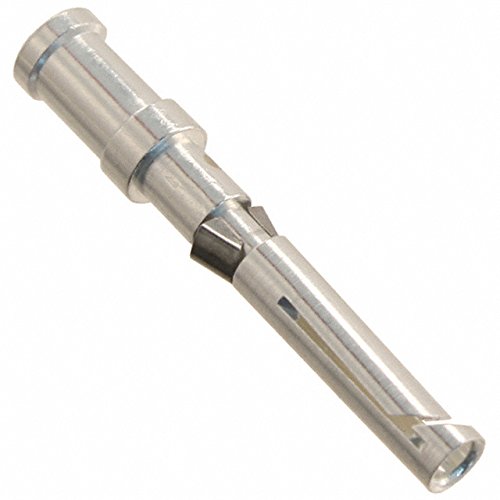

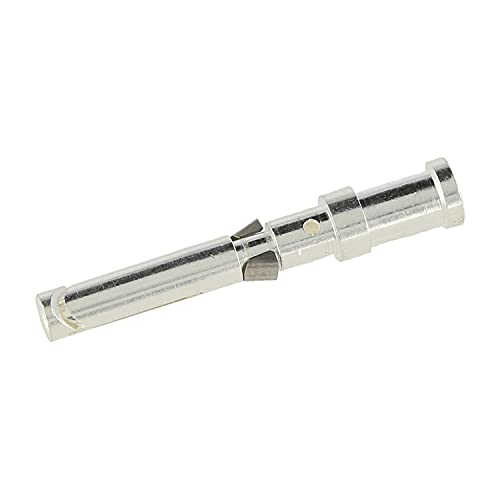

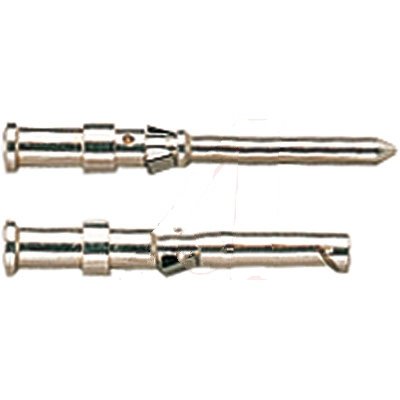

Connector Contact - Han D Female Crimp Contact Silver Plated

Condition: New
Brand: HARTING
MPN: 09150006201
MPN Xref:09150006201, 1195-1576-ND, 79K0460, 70104230, 1704240, 617-09-15-000-6201, HART-0008860, 78950691461, 70104599

This connector contact is designed for easy crimping and is silver plated for optimal performance. It has a current rating of 10A and is part of the Han-Modular Series.

Type of connector	HDC
Connector	contact
Kind of connector	female
Contact material	copper alloy
Contact plating	silver plated
Wire cross-section	1.5mm
Connector series	Han? D
Electrical mounting	crimped
Current rating	10A
Plating thickness	3?m
Engineering PN	Han D F Crimp Contact Ag AWG 16
Min. Single Wire Size	1.5 sq mm
Series	Bulk
Item	Connector Contact
Connection Material	Copper Alloy
Connector Type	Contacts
Standards	EN 60664-1; IEC 61984
Sub-Category	Contacts
Wire Range	16 AWG
Finish	Silver Plated
Contact Type	Standard
Contact Finish	118.1?in (3.00?m)

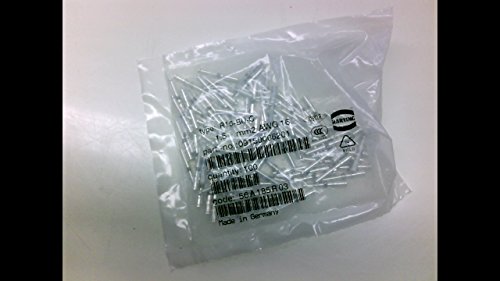

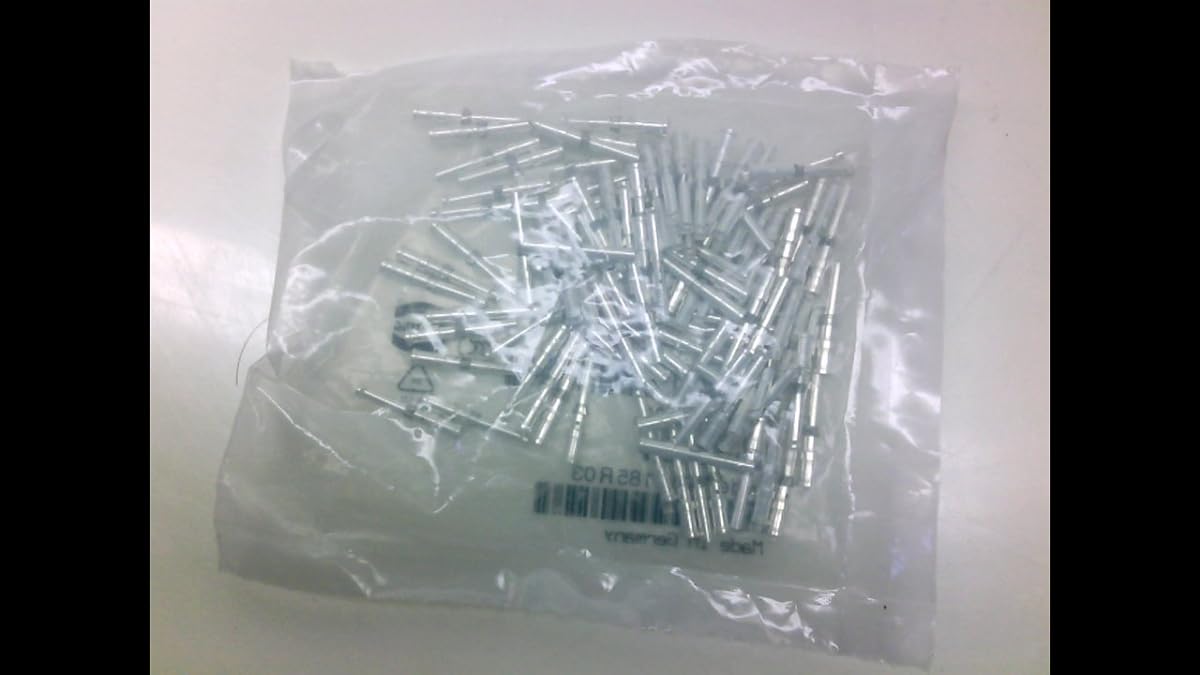

Package Quantity	100
Gross Weight	0.005 lbs
Maximum Contact Resistance	3 megaohm
Pole Finish	Silver Plated
Connection Type	Crimp
Pole Material	Copper Alloy
Minimum Mating Cycles	500
Connector Gender	Female
Contact Material	Silver Plated
Wire Stripping Length	8 mm
Current Rating	10 A
Wire Size	16 AWG
Country of Origin (subject to change)	Germany
Contact Plating	Silver
Family Name	Han-Modular Family
Gender	Female
Stripping Length	8 mm
Termination	Crimp
Type	Socket
Amperage	10 A
Plating Material	Silver
Supply Voltage	250 V
Specification	Han D
Contact Style	Female
Termination Method	Crimp contact
Amperage Rating	?? 10 A
Export Class	EAR / EAR99
RoHS	Yes
Weight (lbs)	0.00150
Weight (g)	0.68000
Category	Connectors, Interconnects
Package	-
Part Status	-
Pin or Socket	Crimp
Contact Termination	16 AWG
Wire Gauge	Silver
