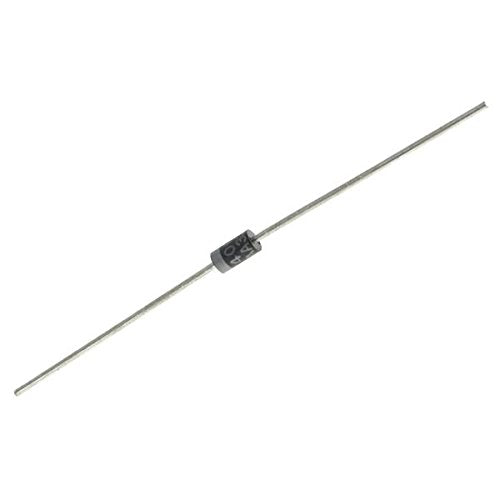

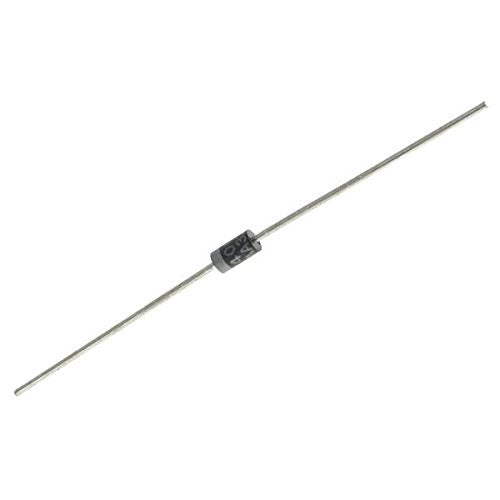

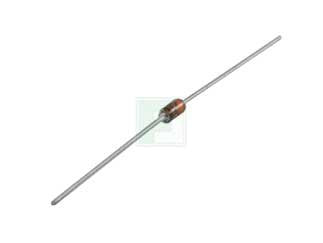

Rectifying Diode - 1kV, 1A, Single Diode, DO41
Rectifying Diode - 1kV, 1A, Single Diode, DO41
Regular price
$0.05 USD
Regular price
Sale price
$0.05 USD
Unit price
/
per
745 in stock
Condition: New
Brand: ON Semiconductor
MPN: UF4007
MPN Xref:UF4007, 70016188, 2458664, 13T8751, FAIR-0052407, UF4007/1, UF4007-DIO, UF4007**MULT1, DIOT-0000224
This product is a rectifying diode with a maximum off-state voltage of 1kV and a load current of 1A. It features fast switching and has a capacitance of 17pF. The diode is mounted through hole and has a case of DO41. It has a maximum forward impulse current of 30A and a leakage current of 75?A. The power dissipation is 2.08W and the reverse recovery time is 75ns.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: ON Semiconductor
MPN: UF4007
MPN Xref:UF4007, 70016188, 2458664, 13T8751, FAIR-0052407, UF4007/1, UF4007-DIO, UF4007**MULT1, DIOT-0000224
This product is a rectifying diode with a maximum off-state voltage of 1kV and a load current of 1A. It features fast switching and has a capacitance of 17pF. The diode is mounted through hole and has a case of DO41. It has a maximum forward impulse current of 30A and a leakage current of 75?A. The power dissipation is 2.08W and the reverse recovery time is 75ns.
Manufacturer | ONSEMI |
Type of diode | rectifying |
Mounting | THT |
Max. off-state voltage | 1kV |
Load current | 1A |
Semiconductor structure | single diode |
Features of semiconductor devices | fast switching |
Capacitance | 17pF |
Kind of package | reel, |
Max. forward impulse current | 30A |
Case | DO41 |
Max. forward voltage | 1.7V |
Leakage current | 75?A |
Power dissipation | 2.08W |
Reverse recovery time | 75ns |
Package/Case | DO-41 |
Product Categories | Rectifiers |
RoHs Status | Green |
In-stock | 107000 |
Recovery Time | 75 ns |
Forward Continuous Current | 1 A |
Max Surge Current | 30 A |
Reverse Current IR | 10 uA |
Mounting Style | Through Hole |
Package / Case | DO-204AL, DO-41, Axial |
Packaging | Reel |
Maximum Operating Temperature | + 150 C |
Minimum Operating Temperature | - 65 C |
Power Dissipation | 2.08 W |
Factory Pack Quantity | 5000 |
Part # Aliases | UF4007_NL |
EAN | 5052406864774 |
Type | Silicon Diode |
Ir @ Diff. Temp (A) | 150u |
Mat. | Silicon Logic |
VRRM | 1.0k |
t(rr) (S) | 50n |
@Temp (test) (?C) | 100 |
Vf Max. | 1.4 |
Ir @25?C | 10u |
I(out) (If AVG) Max. | 1.0 |
@Volts (test) (V) | 1.0k |
@If (test) | 1.0 |
Oper. Temp (?C) Max. | 150 |
@Ir (A) | 1.0 |
Surface Mounted Yes/No | NO |
Category | Uncategorized |
Mfr | Fairchild Semiconductor |
Series | - |
Package | Tape & Reel (TR) |
Part Status | Active |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 1 V |
Current - Average Rectified (Io) | 1A |
Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 1 A |
Speed | Fast Recovery =< 500ns, > 200mA (Io) |
Reverse Recovery Time (trr) | 75 ns |
Current - Reverse Leakage @ Vr | 10 ?A @ 1000 V |
Capacitance @ Vr, F | - |
Mounting Type | Through Hole |
Supplier Device Package | DO-41 |
Operating Temperature - Junction | -65?C ~ 150?C |
Base Product Number | UF400 |
Manufacturer Part No. | UF4007 |
Reverse Voltage | 1000 V |
Unit Weight | 245 mg |
Product Category | Rectifiers |
Alternate Part No. | 512-UF4007 |
Forward Voltage Drop | 1.7 V |
Configuration | Single |
Product | Ultra Fast Recovery Rectifiers |
Brand | Fairchild Semiconductor |
