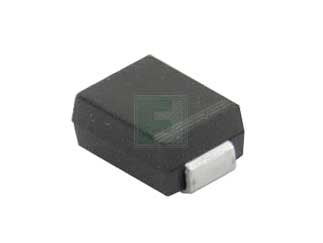

Rectifying Diode GP 100V 1A DO214AC SMA
Rectifying Diode GP 100V 1A DO214AC SMA
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Unit price
/
per
Shipping calculated at checkout.
89 in stock
Couldn't load pickup availability
Condition: New
Brand: ON Semiconductor
MPN: S1B
MPN Xref:S1B, 2136324, 633-S1B, 10X9362, S1B/BKN, 1072575, 821-S1B, S1B**MULT1, FAIR-0058629
DIODE GP 100V 1A DO214AC SMA - Diode 100 V 1A Surface Mount DO-214AC, SMA for rectifying applications with glass passivated semiconductor structure.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: ON Semiconductor
MPN: S1B
MPN Xref:S1B, 2136324, 633-S1B, 10X9362, S1B/BKN, 1072575, 821-S1B, S1B**MULT1, FAIR-0058629
DIODE GP 100V 1A DO214AC SMA - Diode 100 V 1A Surface Mount DO-214AC, SMA for rectifying applications with glass passivated semiconductor structure.
| Manufacturer | ONSEMI |
| Type of diode | rectifying |
| Mounting | SMD |
| Max. off-state voltage | 100V |
| Load current | 1A |
| Reverse recovery time | 1.8?s |
| Semiconductor structure | single diode |
| Features of semiconductor devices | glass passivated |
| Capacitance | 6.6pF |
| Case | SMA |
| Max. forward voltage | 1.1V |
| Max. forward impulse current | 30A |
| Power dissipation | 1.4W |
| Kind of package | reel, |
| Manufacturer Product Number | S1B |
| Description | DIODE GP 100V 1A DO214AC SMA |
| Detailed Description | Diode 100 V 1A Surface Mount DO-214AC, SMA |
| Category | Discrete Semiconductor Products |
| Mfr | Fairchild Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.8 ?s |
| Current - Reverse Leakage @ Vr | 5 ?A @ 100 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA (DO-214AC) |
| Operating Temperature - Junction | -50?C ~ 150?C |
| Diode Type | Standard |
| Base Product Number | S1B |
| Part Status | Active |
| Product Category | Rectifiers |
| Forward Continuous Current | 1 A |
| Configuration | Single |
| Forward Voltage Drop | 1.1 V |
| Reverse Voltage | 100 V |
| Reverse Current IR | 1 uA |
| Mounting Style | SMD/SMT |
| Minimum Operating Temperature | - 55 C |
| Manufacturer Part No. | S1B |
| Max Surge Current | 40 A |
| Packaging | Reel |
| Power Dissipation | 1.4 W |
| Brand | Fairchild Semiconductor |
| Part # Aliases | S1B_NL |
| Maximum Operating Temperature | + 150 C |
| Package/Case | SMA |
| Unit Weight | 106 mg |
| Recovery Time | 1800 ns |
| Alternate Part No. | 512-S1B |
| Product | Standard Recovery Rectifiers |
