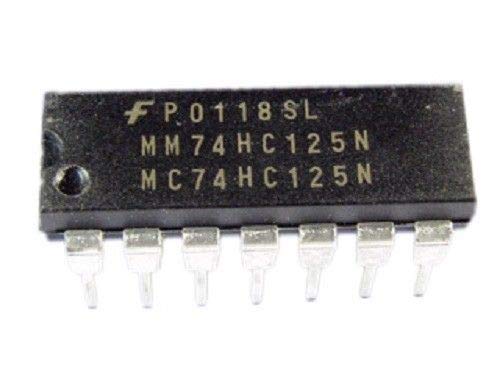

CMOS Buffer with 3-State Output - PDIP-14

Condition: New
Brand: Fairchild Semiconductor
MPN: MM74HC125N
MPN Xref:MM74HC125N

This product is a CMOS buffer with 3-state output and non-inverting logic type. It has a minimum operating temperature of -40 C and a maximum operating temperature of +85 C. The package type is PDIP-14 and it is through-hole mounted. The supply voltage ranges from 2V to 6V and it has a maximum power dissipation of 600 mW. It comes in a tube packaging with a factory pack quantity of 25.

Package/Case	PDIP-14
Product Categories	Buffers & Line Drivers
RoHs Status	Rohs
In-stock	132
Supply Voltage Min	2 V
Maximum Operating Temperature	+ 85 C
Mounting Style	Through Hole
Package / Case	PDIP-14
Packaging	Tube
High Level Output Current	- 7.8 mA
Logic Family	HC
Logic Type	CMOS
Low Level Output Current	7.8 mA
Maximum Power Dissipation	600 mW
Minimum Operating Temperature	- 40 C
Number of Channels per Chip	4
Output Type	3-State
Propagation Delay Time	130 ns at 2 V, 26 ns at 4.5 V, 22 ns at 6 V
Factory Pack Quantity	25
Part # Aliases	MM74HC125N_NL
Category	Integrated Circuits (ICs)
Mfr	ON Semiconductor
Series	Tube
Package	Tube
Part Status	Buffer, Non-Inverting
Number of Elements	4
Number of Bits per Element	1
Input Type	3-State
Current - Output High, Low	2V ~ 6V
Voltage - Supply	2V ~ 6V
Operating Temperature	Through Hole
Mounting Type	Through Hole
Supplier Device Package	14-DIP
Base Product Number	74HC125
