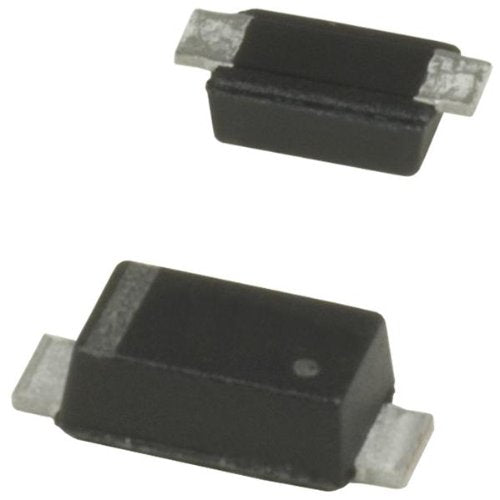

12V Zener Diode SOD-523F

Condition: New
Brand: ON Semiconductor
MPN: MM5Z12V
MPN Xref:MM5Z12V, 2454002, MM5Z12V**MULT1, FAIR-0045197, MM5Z12VDKR-ND, 2454002RL, FAIR-0062906, 31Y2939, MM5Z12VTR-ND

This product is a zener diode with a nominal voltage of 12V and a maximum power dissipation of 200mW. It has a single diode configuration and is surface mountable. The package/case is SOD-523F and it is available in reel packaging.

Category	Discrete Semiconductor Products
Mfr	Fairchild Semiconductor
Series	-
Package	Tape & Reel (TR)
Part Status	Active
Voltage - Zener (Nom) (Vz)	12 V
Tolerance	?5%
Power - Max	200 mW
Impedance (Max) (Zzt)	25 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 8 V
Operating Temperature	-55?C ~ 150?C
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523F
Supplier Device Package	SOD-523F
Product Status	Obsolete
Base Product Number	MM5Z1
Package/Case	SOD-523F
Product Categories	Zener Diodes
RoHs Status	Rohs
Life Cycle	Obsoleted
Marking Code	Q8
In-stock	150000
Mounting Style	SMD/SMT
Packaging	Reel
Configuration	Single
Minimum Operating Temperature	-55 °C
Factory Pack Quantity	8000
Diode Configuration	Single
Maximum Operating Temperature	+150 °C
Zener Type	General Purpose
Number of Elements per Chip	1
Length	1.3mm
Zener Voltage Tolerance	6%
Brand	Fairchild Semiconductor
Package Type	SOD-523F
Maximum Power Dissipation	200 mW
Width	0.9mm
Test Current	5mA
Maximum Reverse Leakage Current	100nA
Height	0.7mm
Pin Count	Pin Count
Dimensions	Dimensions
Nominal Zener Voltage	Nominal Zener Voltage
Maximum Zener Impedance	Maximum Zener Impedance
Stock	Stock
