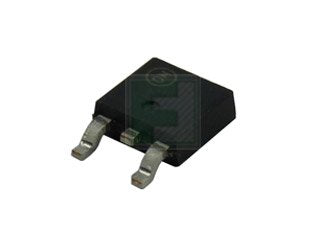

Linear Voltage Regulator IC
Linear Voltage Regulator IC
Regular price
$0.14 USD
Regular price
Sale price
$0.14 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 10 left
Couldn't load pickup availability
Condition: New
Brand: ON SEMICONDUCTOR
MPN: MC78M12CDTG
MPN Xref:MC78M12CDTG, 70099970, 464114, 647327, ONSM-0016814, ONSM-0040294, MC78M12CDTGOS-ND, 17328678, 45J1432
IC REG LINEAR 12V 500MA DPAK
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: ON SEMICONDUCTOR
MPN: MC78M12CDTG
MPN Xref:MC78M12CDTG, 70099970, 464114, 647327, ONSM-0016814, ONSM-0040294, MC78M12CDTGOS-ND, 17328678, 45J1432
IC REG LINEAR 12V 500MA DPAK
| Manufacturer | ONSEMI |
| Type of integrated circuit | voltage regulator |
| Kind of voltage regulator | fixed, |
| Voltage drop | 2V |
| Output voltage | 12V |
| Output current | 0.5A |
| Case | DPAK |
| Mounting | SMD |
| Kind of package | tube |
| Operating temperature | 0...125?C |
| Tolerance | ?4% |
| Number of channels | 1 |
| Input voltage | 14.5...27V |
| Manufacturer series | MC78M00 |
| Manufacturer Product Number | MC78M12CDTG |
| Description | IC REG LINEAR 12V 500MA DPAK |
| Manufacturer Standard Lead Time | 15 Weeks |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DPAK |
| Category | Integrated Circuits (ICs) |
| Mfr | onsemi |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 500mA |
| PSRR | 80dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0?C ~ 125?C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3 (DPAK) |
| Supplier Device Package | DPAK |
| Base Product Number | MC78M12 |
| Package/Case | TO-252-3 |
| Product Categories | Linear Regulators - Standard |
| RoHs Status | Rohs |
| Marking Code | 78M12 |
| In-stock | 22024 |
| Input Voltage MAX | 35 V |
| Line Regulation | 50 mV |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Input Voltage MIN | 14 V |
| Minimum Operating Temperature | 0 C |
| Number of Outputs | 1 |
| Packaging | Tube |
| PSRR / Ripple Rejection (Typ) | 80 dB |
| Factory Pack Quantity | 75 |
