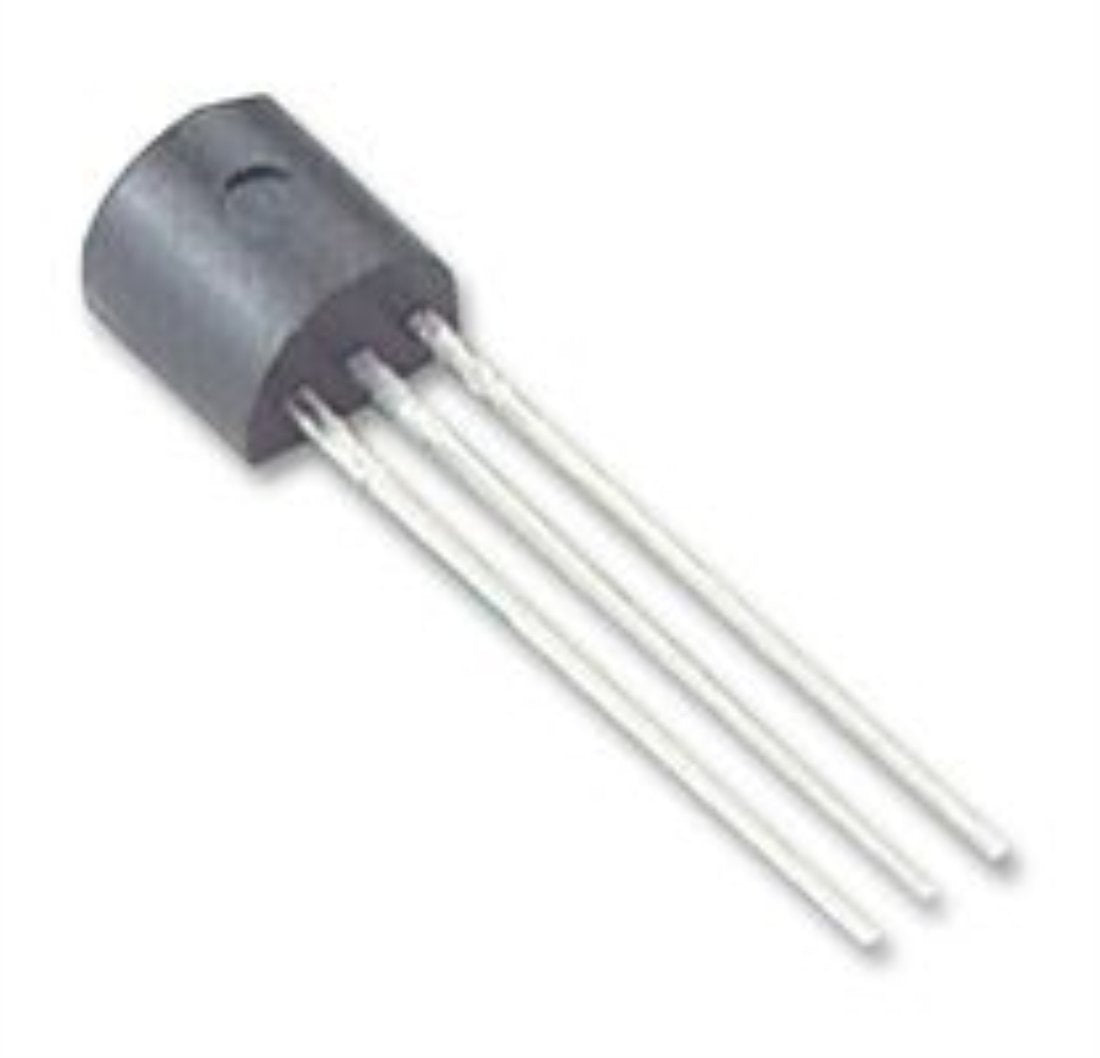

Fixed Voltage Regulator TO92 5V 0.1A

Condition: New
Brand: ONSEMI
MPN: MC78L05ACPG
MPN Xref:MC78L05ACPG, 863-MC78L05ACPG, MC78L05ACPGOS-ND, 123-MC78L05ACPG, 17328669, 88H4748, ONSM-0042443, 644623, ONSM-0008766

This integrated circuit is a fixed voltage regulator with a voltage drop of 1.7V and an output voltage of 5V. It has a TO92 case and THT mounting. The operating temperature range is 0 to 125°C. It has a tolerance of ?4% and is a single channel regulator. The input voltage range is 7 to 20V. The manufacturer series is MC78L00A. The package type is TO-92 and it is RoHs compliant.

Type of integrated circuit	voltage regulator
Kind of voltage regulator	fixed,
Voltage drop	1.7V
Output voltage	5V
Output current	0.1A
Case	TO92
Mounting	THT
Kind of package	bulk
Operating temperature	0...125?C
Tolerance	?4%
Number of channels	1
Input voltage	7...20V
Manufacturer series	MC78L00A
Package/Case	TO-92-3 (TO-226)
Product Categories	Linear Regulators - Standard
RoHs Status	Rohs
In-stock	10729
Load Regulation	60 mV
Input Voltage MAX	30 V
Line Regulation	150 mV
Maximum Operating Temperature	+ 125 C
Mounting Style	Through Hole
Package / Case	TO-92-3 (TO-226)
Input Voltage MIN	7 V
Minimum Operating Temperature	0 °C
Number of Outputs	1
Packaging	Bulk
PSRR / Ripple Rejection (Typ)	49 dB
Factory Pack Quantity	2000
Alternate Mfr Part Number	5165758
Dimensions	5.20 x 4.19 x 5.33 mm
Dropout Voltage	1.7 V
Height	5.33mm
Input Bias Current	3.8 mA
Input Voltage Range	Maximum of 30 V
Length	5.2mm
Mounting Type	Through Hole
Noise Voltage	40 μV
Number of Pins	3
Output Current	0.1 A
Output Type	Fixed
Output Voltage	5 V
Package Type	TO-92
Polarity	Positive
Product Header	Positive Voltage Regulators
Regulator Function	Standard
Regulator Type	Positive Voltage Out
Series	Series
Supply Voltage	30 V
Temperature Operating Range	0 to +125 °C
Type	Voltage Regulator
Voltage, Input, High Level	30 V
Width	4.19mm
Category	Integrated Circuits (ICs)
Package	Bulk
Part Status	Active
Output Configuration	Positive
Number of Regulators	1
Voltage - Input (Max)	30V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	100mA
Current - Quiescent (Iq)	6 mA
PSRR	49dB (120Hz)
Control Features	-
Protection Features	Over Temperature, Short Circuit
Operating Temperature	0?C ~ 125?C
Supplier Device Package	TO-92 (TO-226)
Base Product Number	MC78L05
Mfr	ON Semiconductor
Maximum Input Voltage	30 V
Brand	ON Semiconductor
Pin Count	Pin Count
Typical Dropout Voltage @ Current	Typical Dropout Voltage @ Current
Maximum Output Current	Maximum Output Current
Stock	Stock
Product Category	Linear Voltage Regulators
Manufacturer	ON Semiconductor
PSRR / Ripple Rejection - Typ	49 dB
Alternate Part No.	863-MC78L05ACPG
Manufacturer Part No.	MC78L05ACPG
