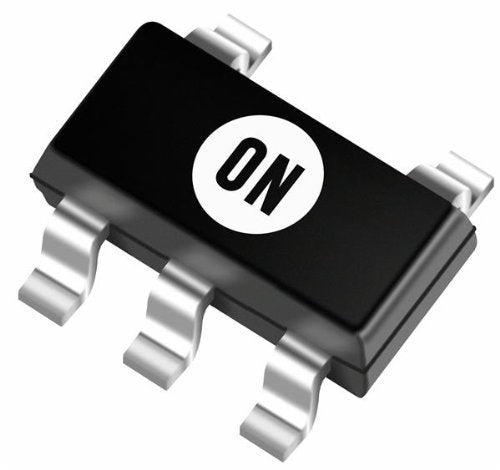

IC GATE NAND 1CH 2IN 5TSOP

IC GATE NAND 1CH 2IN 5TSOP

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

255 in stock

Condition: New
Brand: ONSEMI
MPN: M74VHC1G132DTT1G
MPN Xref:M74VHC1G132DTT1G, 61K1063, 70466163, 8051501, 2101846, M74VHC1G132DTT1GOSTR-ND, 863-M74VHC1G132DTT1G, M74VHC1G132DTT1GOSCT-ND, 74VHC1G132DTT1G

IC GATE NAND 1CH 2IN 5TSOP - NAND Gate IC 1 Channel Schmitt Trigger 5-TSOP
Manufacturer Product Number M74VHC1G132DTT1G
Description IC GATE NAND 1CH 2IN 5TSOP
Manufacturer Standard Lead Time 15 Weeks
Detailed Description NAND Gate IC 1 Channel Schmitt Trigger 5-TSOP
Category Integrated Circuits (ICs)
Series 74VHC
Package Tape & Reel (TR)
Product Status Active
Logic Type NAND Gate
Number of Circuits 1
Number of Inputs 2
Features Schmitt Trigger
Voltage - Supply 2V ~ 5.5V
Current - Quiescent (Max) 1 ?A
Current - Output High, Low 8mA, 8mA
Input Logic Level - Low 0.65V ~ 1.45V
Input Logic Level - High 2.25V ~ 3.7V
Max Propagation Delay @ V, Max CL 9.7ns @ 5V, 50pF
Operating Temperature -55?C ~ 125?C
Mounting Type Surface Mount
Supplier Device Package 5-TSOP
Package / Case TSOT
Base Product Number 74VHC1G132
Propagation Delay Time 15.4 ns
Low Level Output Current 8 mA
Manufacturer ON Semiconductor
Brand ON Semiconductor
Number of Input Lines 2
Product Category Logic Gates
Mounting Style SMD/SMT
Package/Case SOT23-5
Packaging Reel
Product NAND
Supply Voltage - Max 5.5 V
Manufacturer Part No. M74VHC1G132DTT1G
High Level Output Current - 8 mA
Number of Output Lines 1
Logic Family 74VHC
Number of Lines In/Out 2 / 1
Maximum Operating Temperature + 125 C
Number of Gates 1 Gate
Supply Voltage - Min 2 V
Alternate Part No. 863-M74VHC1G132DTT1G
Minimum Operating Temperature - 55 C
Type of integrated circuit digital
Kind of gate NAND
Number of channels single,
Number of inputs 2
Mounting SMD
Case TSOP5
Manufacturer series VHC
Operating temperature -55...125?C
Kind of package reel,
Quiescent current 40?A
Kind of input with Schmitt trigger
Product Categories Logic Gates
RoHs Status Rohs
Marking Code VDx
In-stock 22840
Supply Voltage Max 5.5 V
Supply Voltage Min 2 V
Factory Pack Quantity 3000
Logic Level - Low 0.65V ~ 1.45V
Logic Level - High 2.25V ~ 3.7V
