Condition: New
Brand: ON Semiconductor
MPN: BC807-16LT1G
MPN Xref:BC807-16LT1G, 6900060, 1861269, 863-BC807-16LT1G, BC80716LT1G, BC807-16LT1GOSTR-ND, ONSM-0016471, 77M8895, 2317822

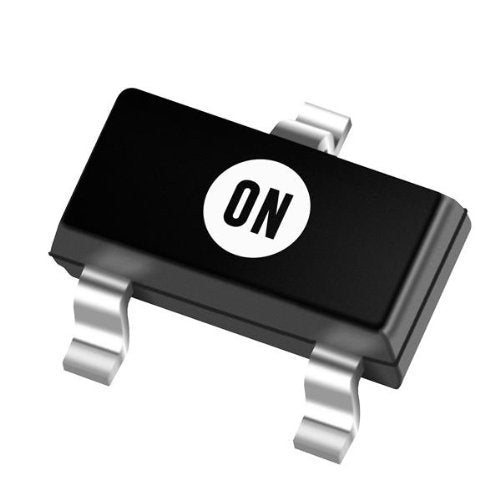

This PNP transistor has a collector current of 0.5A and a power dissipation of 0.225W in a SOT23 package. It operates at a maximum temperature of 150C and has a gain bandwidth product of 100MHz.
Category
Discrete Semiconductor Products
Series
-
Package
Tape & Reel (TR)
Part Status
Active
Transistor Type
PNP
Vce Saturation (Max) @ Ib, Ic
700mV @ 50mA, 500mA
Current - Collector Cutoff (Max)
100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
100 @ 100mA, 1V
Frequency - Transition
100MHz
Operating Temperature
-55?C ~ 150?C (TJ)
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Supplier Device Package
SOT-23-3 (TO-236)
Current - Collector (Ic) (Max)
500 mA
Voltage - Collector Emitter Breakdown (Max)
45V
Power - Max
300mW
Base Product Number
BC807
Package/Case
SOT-23-3
Product Categories
Bipolar Transistors
RoHs Status
Rohs
In-stock
2059049
Emitter Base Voltage VEBO
5 V
Collector Emitter Saturation Voltage
- 0.7 V
Maximum DC Collector Current
0.5 A
Gain Bandwidth Product fT
100 MHz
DC Collector/Base Gain hfe Min
100 at 100 mA at 1 V
Maximum Operating Temperature
+ 150 C
Mounting Style
SMD/SMT
Continuous Collector Current
- 0.5 A
Maximum Power Dissipation
225 mW
Minimum Operating Temperature
- 55 C
Packaging
Reel
Factory Pack Quantity
3000
Mfr
onsemi
Manufacturer
ONSEMI
Type of transistor
PNP
Polarisation
bipolar
Collector-emitter voltage
45V
Collector current
0.5A
Power dissipation
0.225W
Case
SOT23
Mounting
SMD
Kind of package
reel,
