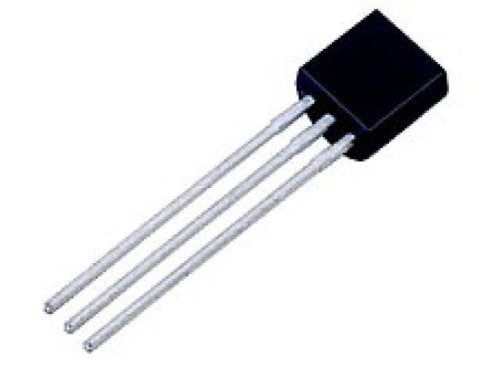

Obsolete NPN Darlington Transistor TO-92-3, BC517

Obsolete NPN Darlington Transistor TO-92-3, BC517

Regular price $0.08 USD
Regular price Sale price $0.08 USD
Sale Sold out
Shipping calculated at checkout.

519 in stock

Condition: New
Brand: ON Semiconductor
MPN Xref:BC517ZL1G, 863-BC517ZL1G, BC517ZL1G-ND

This product is an obsolete NPN Darlington Transistor with a maximum collector current of 1A and a collector-emitter voltage breakdown of 30V. It has a package type of TO-92-3 and operates in a temperature range of -55°C to 150°C.
Category Discrete Semiconductor Products
Series BC517
Package Tape & Box (TB)
Part Status Obsolete
Transistor Type NPN - Darlington
Vce Saturation (Max) @ Ib, Ic 1V @ 100?A, 100mA
Current - Collector Cutoff (Max) 500nA
DC Current Gain (hFE) (Min) @ Ic, Vce 30000 @ 20mA, 2V
Frequency - Transition 200MHz
Operating Temperature -55?C ~ 150?C (TJ)
Mounting Type Through Hole
Package / Case TO-226-3, TO-92-3 Long Body (Formed Leads)
Supplier Device Package TO-92 (TO-226)
Current - Collector (Ic) (Max) 1 A
Voltage - Collector Emitter Breakdown (Max) 30 V
Power - Max 625 mW
Mfr onsemi
Product Status Obsolete
Base Product Number BC517
Maximum DC Collector Current 1 A
Collector- Emitter Voltage VCEO Max 30 V
Collector- Base Voltage VCBO 40 V
DC Collector/Base Gain hFE Min 30
Maximum Operating Temperature + 150 C
Minimum Operating Temperature - 55 C
Transistor Polarity NPN
Alternate Part No. 863-BC517ZL1G
Package/Case TO-92-3 (TO-226)
Maximum Collector Cut-off Current 0.1 uA
Mounting Style Through Hole
Manufacturer Part No. BC517ZL1G
Configuration Single
Product Category Transistors Darlington
Emitter- Base Voltage VEBO 10 V
Packaging Ammo Pack
