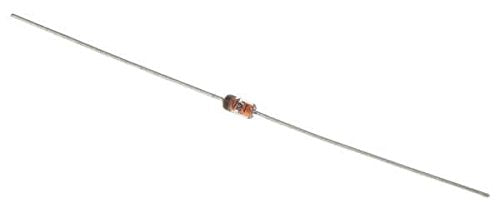

Rectifier Diode BAV21
Rectifier Diode BAV21
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Unit price
/
per
913 in stock
Condition: New
Brand: ON SEMI
MPN: BAV21
MPN Xref:BAV21, BAV21FS-ND, 1097303, 23766990, 05M3905, 568-7922-1-ND, BAV21133, 107-BAV21, BAV21,133
RECTIFIER DIODE, 0.2A, 250V, DO-35 Package
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: ON SEMI
MPN: BAV21
MPN Xref:BAV21, BAV21FS-ND, 1097303, 23766990, 05M3905, 568-7922-1-ND, BAV21133, 107-BAV21, BAV21,133
RECTIFIER DIODE, 0.2A, 250V, DO-35 Package
Category | Discrete Semiconductor Products |
Mfr | Fairchild Semiconductor |
Series | - |
Package | Bulk |
Part Status | Active |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 250 V |
Current - Average Rectified (Io) | 250mA |
Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
Speed | Small Signal =< 200mA (Io), Any Speed |
Reverse Recovery Time (trr) | 50 ns |
Current - Reverse Leakage @ Vr | 100 nA @ 200 V |
Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
Mounting Type | Through Hole |
Package / Case | DO-204AH, DO-35, Axial |
Supplier Device Package | DO-35 |
Operating Temperature - Junction | -50?C ~ 200?C |
Base Product Number | BAV21 |
EAN | 5052406866952 |
Type | Silicon Diode |
Manufacturer | Fairchild Semiconductor |
Case | DO35 |
Ir @ Diff. Temp (A) | 15u |
Mat. | Silicon Logic |
VRRM | 250 |
t(rr) (S) | 50n |
@Temp (test) (?C) | 100 |
Vf Max. | 1.0 |
Ir @25?C | 100n |
I(out) (If AVG) Max. | 250m |
@Volts (test) (V) | 200 |
@If (test) | 100m |
Oper. Temp (?C) Max. | 175 |
@Ir (A) | 30m |
Surface Mounted Yes/No | NO |
Package/Case | DO35 |
Product Categories | Rectifiers |
RoHs Status | Lead free/RoHS Compliant |
Life Cycle | Obsoleted |
Marking Code | BAV21PH |
In-stock | 336722 |
Max Surge Current | 4 A |
Reverse Current IR | 0.1 uA at 200 V |
Mounting Style | Through Hole |
Packaging | Bulk |
Maximum Operating Temperature | + 175 C |
Minimum Operating Temperature | - 65 C |
Power Dissipation | 0.5 W |
Factory Pack Quantity | 2000 |
Manufacturer Product Number | BAV21 |
Description | RECTIFIER DIODE, 0.2A, 250V, DO- |
Detailed Description | Diode |
Product Status | Obsolete |
Technology | Standard |
