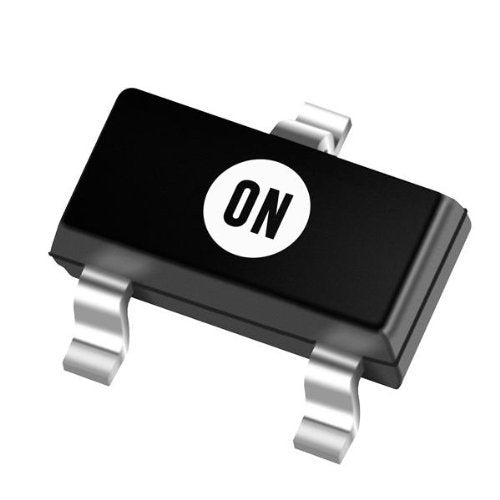

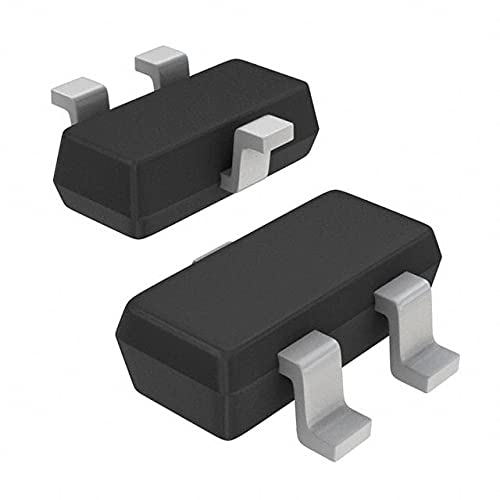

Diode Array Schottky 40V SOT23-3

Diode Array Schottky 40V SOT23-3

Regular price $0.03 USD
Regular price Sale price $0.03 USD
Sale Sold out
Shipping calculated at checkout.

90 in stock

Condition: New
MPN Xref:BAS40-04LT1G, 2370804, BAS40-04LT1GOSDKR-ND, BAS40-04LT1G**MULT1, 67R1279, ONSM-0041751, ONSM-0049062, 863-BAS40-04LT1G, 464283

Category Discrete Semiconductor Products
Mfr ON Semiconductor
Series -
Package Tape & Reel (TR)
Part Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Current - Average Rectified (Io) (per Diode) 120mA (DC)
Speed Small Signal =< 200mA (Io), Any Speed
Operating Temperature - Junction -55?C ~ 150?C
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Voltage - DC Reverse (Vr) (Max) 40 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 40 mA
Current - Reverse Leakage @ Vr 1 ?A @ 25 V
Base Product Number BAS40
Manufacturer Product Number BAS40-04LT1G
Manufacturer Standard Lead Time 11 Weeks
Detailed Description Diode Array 1 Pair Series Connection 40 V 120mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Product Status Active
Technology Schottky
Package/Case SOT-23
Product Categories Schottky Diodes
RoHs Status Rohs
In-stock 312384
Configuration Dual Series
Forward Voltage Drop 1 V at 0.04 A
Maximum Reverse Leakage Current 1 uA
Operating Temperature Range - 55 C to + 150 C
Mounting Style SMD/SMT
Packaging Reel
Factory Pack Quantity 3000
Type of diode Schottky switching
Mounting SMD
Max. off-state voltage 40V
Load current 0.12A
Semiconductor structure double series
Capacitance 5pF
Case SOT23
Kind of package reel,
Power dissipation 0.225W
