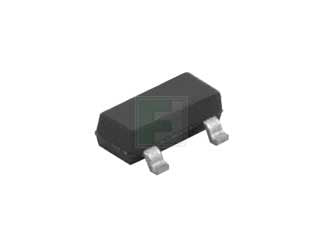

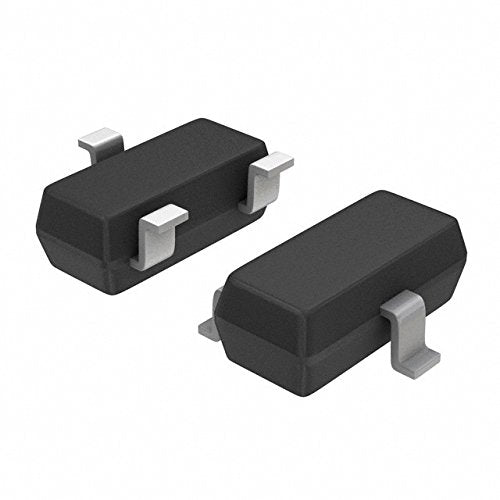

MOSFET N-CH 60V 320MA SOT23-3
MOSFET N-CH 60V 320MA SOT23-3
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Unit price
/
per
195 in stock
Condition: New
Brand: ON SEMICONDUCTOR
MPN: 2N7002KT1G
MPN Xref:2N7002KT1G, ONSM-0122887, 2317894, 2N7002KT1GOSDKR-ND, ONSM-0048977, 50M6388, 863-2N7002KT1G, 2N7002KT1GOSCT-ND, ONSM-0039401
MOSFET N-CH 60V 320MA SOT23-3
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: ON SEMICONDUCTOR
MPN: 2N7002KT1G
MPN Xref:2N7002KT1G, ONSM-0122887, 2317894, 2N7002KT1GOSDKR-ND, ONSM-0048977, 50M6388, 863-2N7002KT1G, 2N7002KT1GOSCT-ND, ONSM-0039401
MOSFET N-CH 60V 320MA SOT23-3
Manufacturer | ONSEMI |
Type of transistor | N-MOSFET |
Polarisation | unipolar |
Drain-source voltage | 60V |
Drain current | 0.38A |
Power dissipation | 0.42W |
Case | SOT23 |
Gate-source voltage | ?20V |
On-state resistance | 2.5? |
Mounting | SMD |
Gate charge | 0.7nC |
Kind of package | reel, |
Kind of channel | enhanced |
Package/Case | SOT-23-3 |
Product Categories | MOSFET |
RoHs Status | Rohs |
Marking Code | 704x |
In-stock | 81000 |
Configuration | Single |
Maximum Operating Temperature | + 150 C |
Mounting Style | SMD/SMT |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Packaging | Reel |
Fall Time | 9 ns |
Minimum Operating Temperature | - 55 C |
Power Dissipation | 300 mW |
Rise Time | 9 ns |
Factory Pack Quantity | 3000 |
Typical Turn Off Delay Time | 55.8 ns |
Manufacturer Product Number | 2N7002KT1G |
Description | MOSFET N-CH 60V 320MA SOT23-3 |
Manufacturer Standard Lead Time | 25 Weeks |
Detailed Description | N-Channel 60 V 320mA (Ta) 300mW (Ta) Surface Mount SOT-23-3 (TO-236) |
Category | Discrete Semiconductor Products |
Mfr | onsemi |
Series | - |
Package | Tape & Reel (TR) |
Product Status | Active |
FET Type | N-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 60 V |
Current - Continuous Drain (Id) @ 25?C | 320mA (Ta) |
Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
Rds On (Max) @ Id, Vgs | 1.6Ohm @ 500mA, 10V |
Vgs(th) (Max) @ Id | 2.3V @ 250?A |
Gate Charge (Qg) (Max) @ Vgs | 0.7 nC @ 4.5 V |
Vgs (Max) | ?20V |
Input Capacitance (Ciss) (Max) @ Vds | 24.5 pF @ 20 V |
FET Feature | - |
Power Dissipation (Max) | 300mW (Ta) |
Operating Temperature | -55?C ~ 150?C (TJ) |
Mounting Type | Surface Mount |
Supplier Device Package | SOT-23-3 (TO-236) |
Base Product Number | 2N7002 |
Part Status | Active |
