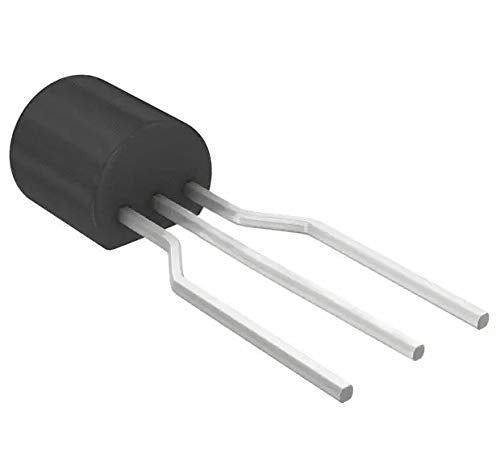

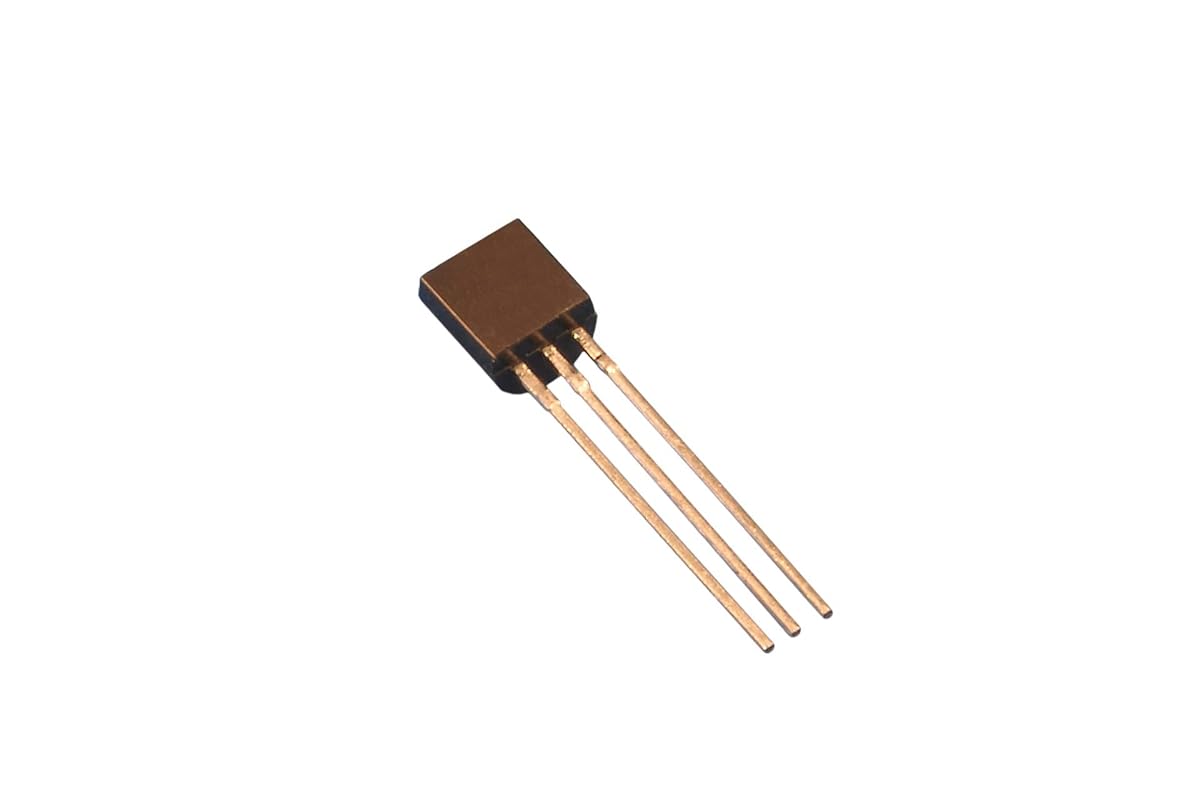

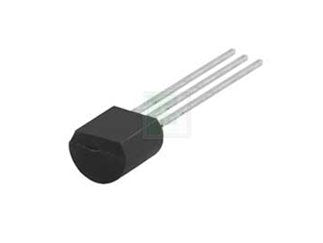

TRANS NPN 40V 0.2A TO92-3

TRANS NPN 40V 0.2A TO92-3

Regular price $0.06 USD
Regular price Sale price $0.06 USD
Sale Sold out
Shipping calculated at checkout.

464 in stock

Condition: New
MPN: 2N3904TF
MPN Xref:2N3904TF, 2N3904TFCT-ND, 107-2N3904TF, 512-2N3904TF, FAIR-0053791, 8051047, 05R0381, 83C3123, 2N3904TF/BKN

TRANS NPN 40V 0.2A TO92-3
Category Discrete Semiconductor Products
Series -
Package Tape & Reel (TR)
Part Status Active
Transistor Type NPN
Vce Saturation (Max) @ Ib, Ic 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) -
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 10mA, 1V
Frequency - Transition 300MHz
Operating Temperature -55?C ~ 150?C (TJ)
Mounting Type Through Hole
Package / Case TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package TO-92-3
Current - Collector (Ic) (Max) 200 mA
Voltage - Collector Emitter Breakdown (Max) 40 V
Power - Max 625 mW
Base Product Number 2N3904
Mfr onsemi
Product Status Active
Manufacturer Fairchild Semiconductor
Manufacturer Product Number 2N3904TF
Description TRANS NPN 40V 0.2A TO92-3
Manufacturer Standard Lead Time 13 Weeks
Detailed Description Bipolar (BJT) Transistor NPN 40 V 200 mA 300MHz 625 mW Through Hole TO-92-3
Package/Case TO-92-3 Kinked Lead
Product Categories Bipolar Transistors
RoHs Status Rohs
In-stock 9600
Emitter Base Voltage VEBO 6 V
Collector Emitter Saturation Voltage 0.3 V
Maximum DC Collector Current 200 mA
Gain Bandwidth Product fT 300 MHz
DC Collector/Base Gain hfe Min 100
Maximum Operating Temperature +150 °C
Mounting Style Through Hole
Continuous Collector Current 0.2 A
DC Current Gain hFE Max 300
Maximum Power Dissipation 625 mW
Minimum Operating Temperature - 55 C
Packaging Reel
Factory Pack Quantity 2000
Part # Aliases 2N3904TF_NL
Maximum Collector Emitter Saturation Voltage 0.3 V
Maximum Operating Frequency 300 MHz
Number of Elements per Chip 1
Maximum Base Emitter Saturation Voltage 0.95 V
Maximum Collector Base Voltage 60 V
Transistor Configuration Single
Maximum Collector Emitter Voltage 40 V
Package Type TO-92
Pin Count 3
Maximum Emitter Base Voltage Maximum Emitter Base Voltage
Dimensions Dimensions
Stock Stock
Brand Fairchild Semiconductor
Configuration Single
Emitter- Base Voltage VEBO 6 V
DC Collector/Base Gain hFE Min 100
Product Category Transistors Bipolar - BJT
Collector- Base Voltage VCBO 60 V
Collector- Emitter Voltage VCEO Max 40 V
Alternate Part No. 512-2N3904TF
Collector-Emitter Saturation Voltage 0.3 V
Unit Weight 240 mg
Manufacturer Part No. 2N3904TF
Transistor Polarity NPN
