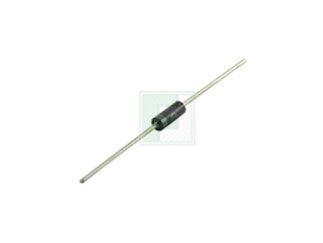

Standard Recovery Rectifier Diode
Standard Recovery Rectifier Diode
Regular price
$0.12 USD
Regular price
Sale price
$0.12 USD
Unit price
/
per
Shipping calculated at checkout.
41 in stock
Couldn't load pickup availability
Condition: New
Brand: ON Semiconductor
MPN: 1N5402RLG
MPN Xref:1N5402RLG, 1889172, 123-1N5402RLG, 42K2934, 70339242, 2440583, ONSM-0033694, 863-1N5402RLG, 6255183P
This is a standard recovery rectifier diode with a max. off-state voltage of 200V and a load current of 3A. It has a single diode semiconductor structure and comes in a DO-27 package. The diode has a max forward impulse current of 200A and a max forward voltage of 1V. It is a switching diode that is mounted through-hole. It is RoHs compliant and currently in stock. The diode has a maximum operating temperature of +150C and a minimum operating temperature of -65C.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: ON Semiconductor
MPN: 1N5402RLG
MPN Xref:1N5402RLG, 1889172, 123-1N5402RLG, 42K2934, 70339242, 2440583, ONSM-0033694, 863-1N5402RLG, 6255183P
This is a standard recovery rectifier diode with a max. off-state voltage of 200V and a load current of 3A. It has a single diode semiconductor structure and comes in a DO-27 package. The diode has a max forward impulse current of 200A and a max forward voltage of 1V. It is a switching diode that is mounted through-hole. It is RoHs compliant and currently in stock. The diode has a maximum operating temperature of +150C and a minimum operating temperature of -65C.
| Manufacturer | ONSEMI |
| Type of diode | switching |
| Mounting | THT |
| Max. off-state voltage | 200V |
| Load current | 3A |
| Semiconductor structure | single diode |
| Kind of package | reel, |
| Max. forward impulse current | 200A |
| Case | DO27 |
| Max. forward voltage | 1V |
| Leakage current | 50?A |
| Package/Case | DO-201AD |
| Product Categories | Rectifiers |
| RoHs Status | Rohs |
| In-stock | 114114 |
| Forward Continuous Current | 3 A |
| Max Surge Current | 200 A |
| Reverse Current IR | 10 uA |
| Mounting Style | Through Hole |
| Package / Case | DO-201AD |
| Packaging | Reel |
| Maximum Operating Temperature | + 150 C |
| Minimum Operating Temperature | - 65 C |
| Factory Pack Quantity | 1200 |
| Category | Discrete Semiconductor Products |
| Series | 1N5402 |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Diode Type | Standard |
| Current - Average Rectified (Io) | 3A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -65?C ~ 150?C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 ?A @ 200 V |
| Base Product Number | 1N5402 |
| Alternate Part No. | 863-1N5402RLG |
| Forward Voltage Drop | 1 V |
| Manufacturer Part No. | 1N5402RLG |
| Product | Standard Recovery Rectifiers |
| Product Category | Rectifiers |
| Configuration | Single |
| Reverse Voltage | 200 V |
