CF Resistor 91 Ohms, ?5% Tolerance, 0.125W

Condition: New
Brand: Stackpole Electronics Inc
MPN: CF18JT91R0
MPN Xref:CF18JT91R0, SEI1-0015427, CF 1/8 91R 5 TR, CF18JT91R0TR-ND, CF18JT91R0CT-ND

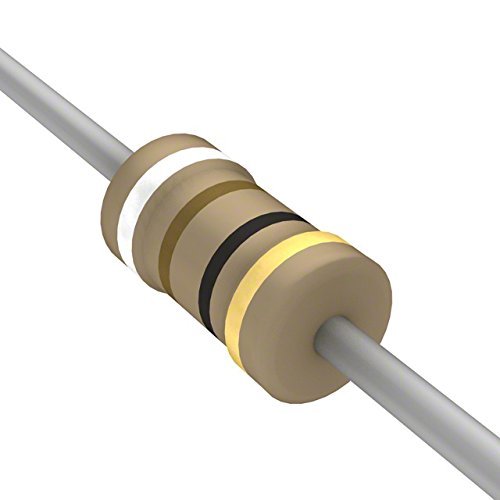

This carbon film resistor has a resistance of 91 Ohms with a tolerance of ?5%. It is a flame retardant resistor with a power rating of 0.125W. The resistor is available in an axial package and operates in a wide temperature range from -55?C to 155?C.

Category	Resistors
Series	CF

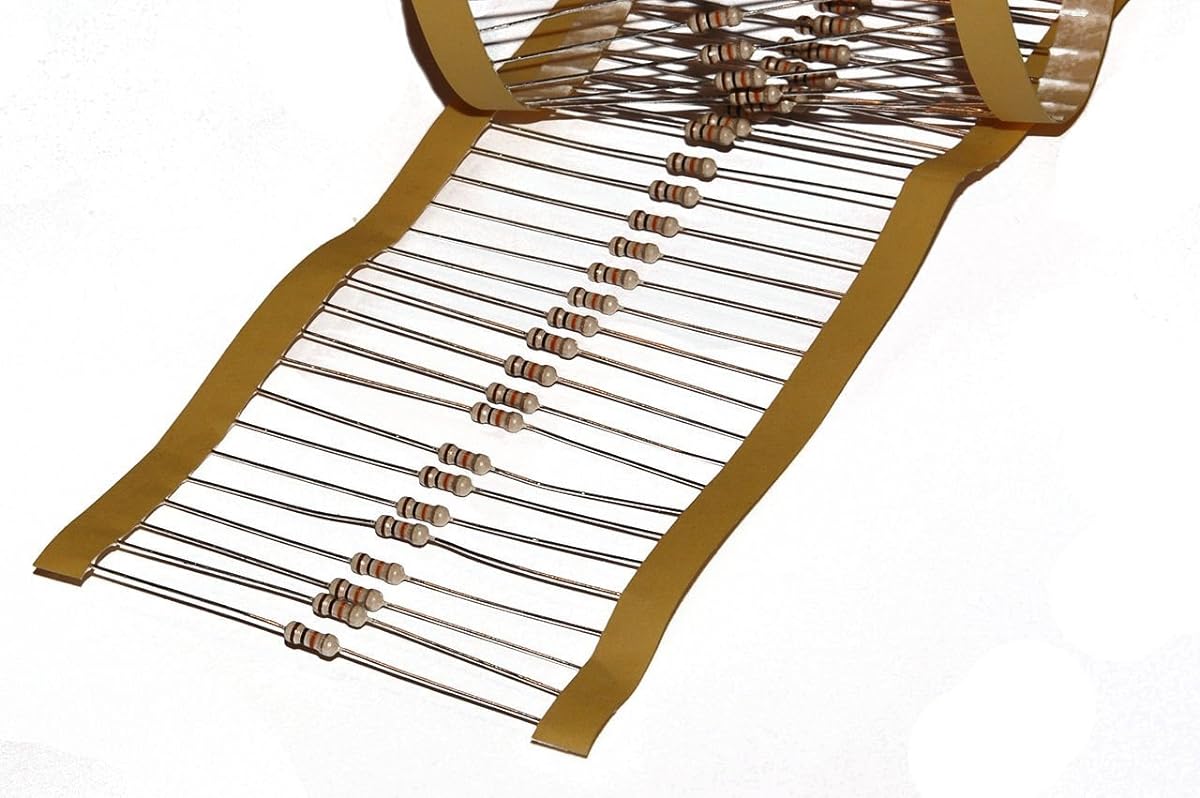

Package	Tape & Reel (TR)
Product Status	Active
Resistance	91 Ohms
Tolerance	?5%
Power (Watts)	0.125W, 1/8W
Composition	Carbon Film
Features	Flame Retardant Coating, Safety
Temperature Coefficient	0/ -400ppm/?C
Operating Temperature	-55?C ~ 155?C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.067" Dia x 0.130" L (1.70mm x 3.30mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
