ABS/PC Blend Box with Hinged Door and Lid - Gray
ABS/PC Blend Box with Hinged Door and Lid - Gray
Regular price
$37.62 USD
Regular price
Sale price
$37.62 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
Condition: New
Brand: BUD INDUSTRIES
MPN: NBB-10267
MPN Xref:NBB-10267

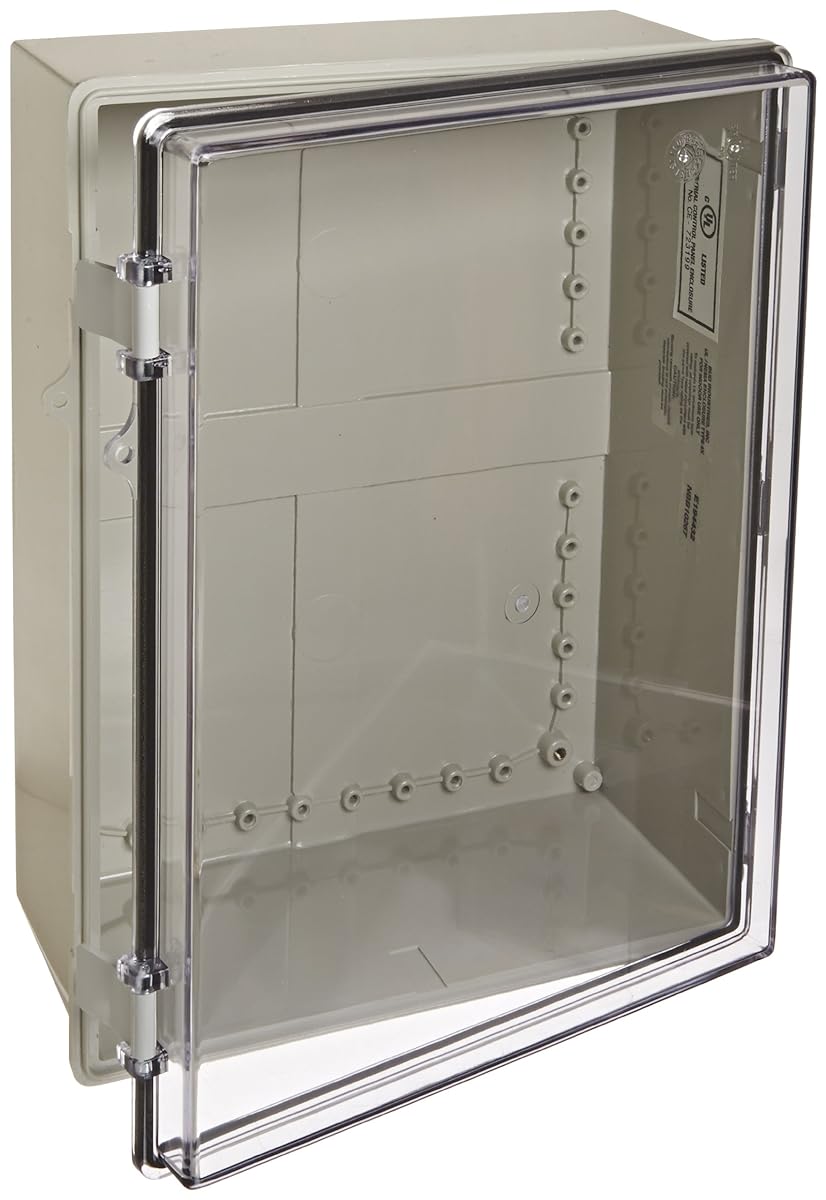

This is a plastic ABS/PC blend box with a hinged door and lid. It is gray in color with a clear cover. The dimensions are 15.68" L x 11.73" W x 6.30" H. It is IP66 rated and has a NEMA 4X rating. The box is wall mountable and has a latch locking mechanism. It is RoHS compliant and has UL listing. The box is suitable for junction box applications.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: BUD INDUSTRIES
MPN: NBB-10267
MPN Xref:NBB-10267
This is a plastic ABS/PC blend box with a hinged door and lid. It is gray in color with a clear cover. The dimensions are 15.68" L x 11.73" W x 6.30" H. It is IP66 rated and has a NEMA 4X rating. The box is wall mountable and has a latch locking mechanism. It is RoHS compliant and has UL listing. The box is suitable for junction box applications.
| Part Status | Active |
| Container Type | Box |
| Size / Dimension | 15.680" L x 11.727" W (398.27mm x 297.87mm) |
| Height | 6.295" (159.89mm) |
| Area (L x W) | 184in? (1187cm?) |
| Design | Hinged Door, Lid |
| Material | Blended plastic |
| Color | Gray |
| Thickness | 0.134" (3.40mm) |
| Features | Non-Metallic Hinges, PCB Supports |
| Ratings | IP66, NEMA 1,2,3,3R,4,4X,12,13 |
| Material Flammability Rating | UL94 5VB, UL94 V-0 |
| Weight | 4.2 lbs (1.9 kg) |
| Manufacturer Product Number | NBB-10267 |
| Description | BOX ABS/PC 15.68"L X 11.73"W |
| Manufacturer Standard Lead Time | 11 Weeks |
| Detailed Description | Box Plastic, ABS/PC Blend Gray, Clear Cover/Door Hinged Door, Lid 15.680" L x 11.727" W (398.27mm x 297.87mm) X 6.295" (159.89mm) |
| Category | Boxes, Enclosures, Racks |
| Series | NBB |
| Package | Bulk |
| Product Status | Active |
| Manufacturer Part Number | NBB-10267 |
| Item Number | NBB-10267 |
| Product Series | NBB Series |
| Composition | Non-Metallic |
| Cover Design | Hinged |
| Latching Mechanism | Latch |
| Nominal Height | 15 " |
| Nominal Width | 11 " |
| Nominal Depth | 6 " |
| RoHS | Yes |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
| Dimensions (H x W x D) | 15.68 x 11.73 x 6.3" |
| NEMA Type | 4, 4X, 12 and 13 |
| Inner Panel | Sold Separately |
| Door Design | Hinged (Single Door) |
| Locking Feature | Latch |
| Mounting | Wall |
| Finish | ANSI 65 Gray |
| Standards | UL Listed, IEC, NEMA |
| Approximate Depth | 6" (152mm) |
| Approximate Height | 16" (406mm) |
| Approximate Width | 12" (305mm) |
| Configuration | Without Knock-Outs |
| Cover Color | Clear |
| Cover Material | Polycarbonate |
| Depth | 6.30 in |
| Dimensions | 15.7 x 11.7 x 6.3 . ; 399 x 297 x 160 in ; mm |
| Enclosure Mounting | Wall Mount |
| IP Rating | IP66 |
| Length | 15.68 in |
| NEMA Rating | NEMA 4X |
| Size | Medium |
| Special Features | Hinged ; Clear Door |
| Type | Junction Box |
| Width | 0 in |
| Door | Clear |
| Body Color | Light Grey |
