NBB Series Junction Box with Hinged Cover and Latch Mechanism
NBB Series Junction Box with Hinged Cover and Latch Mechanism
Regular price
$15.45 USD
Regular price
Sale price
$15.45 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
Condition: New
Brand: Bud Industries
MPN: NBB-10260
MPN Xref:NBB-10260

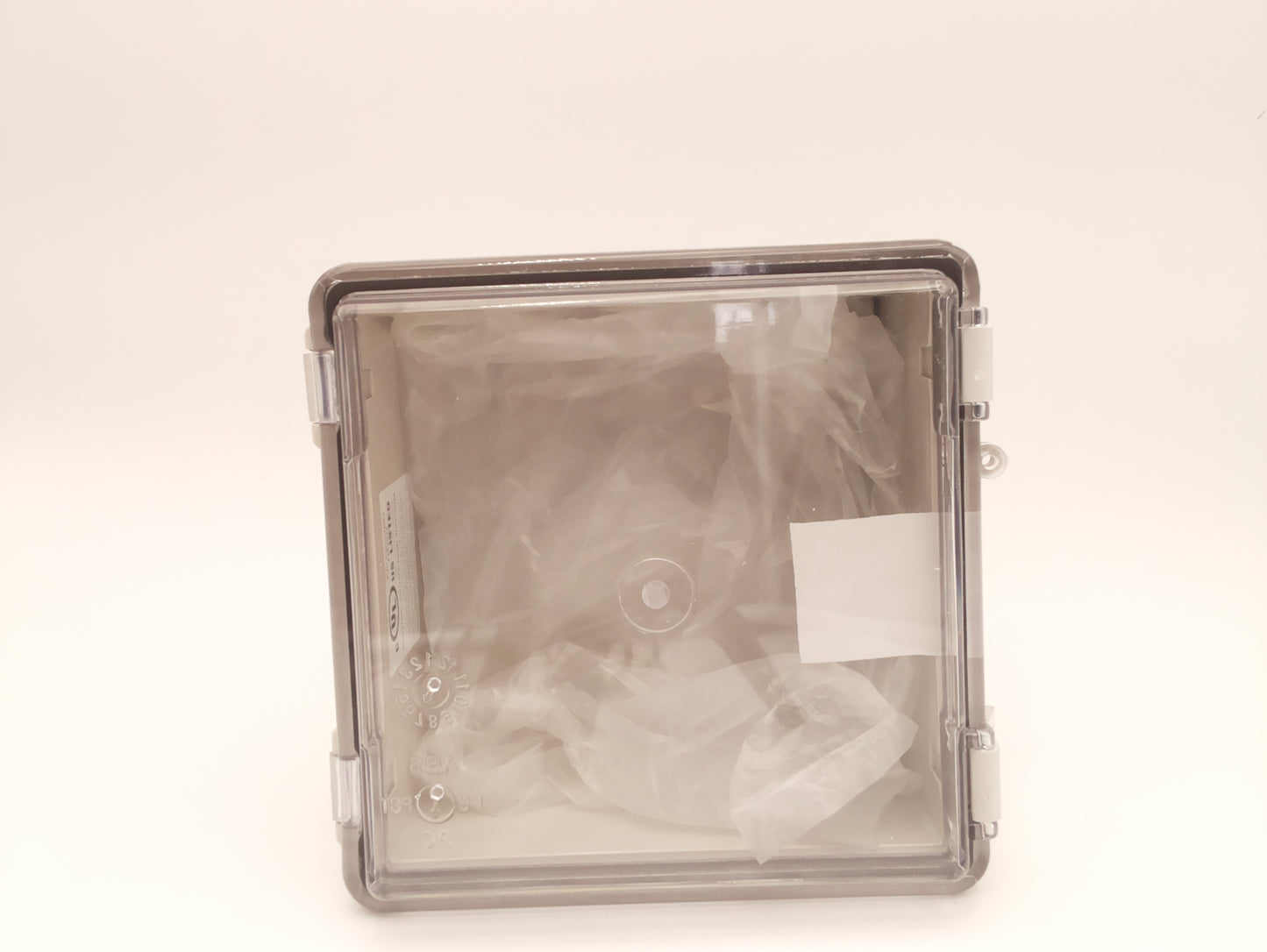

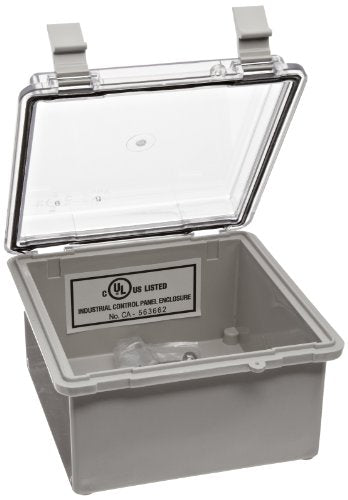

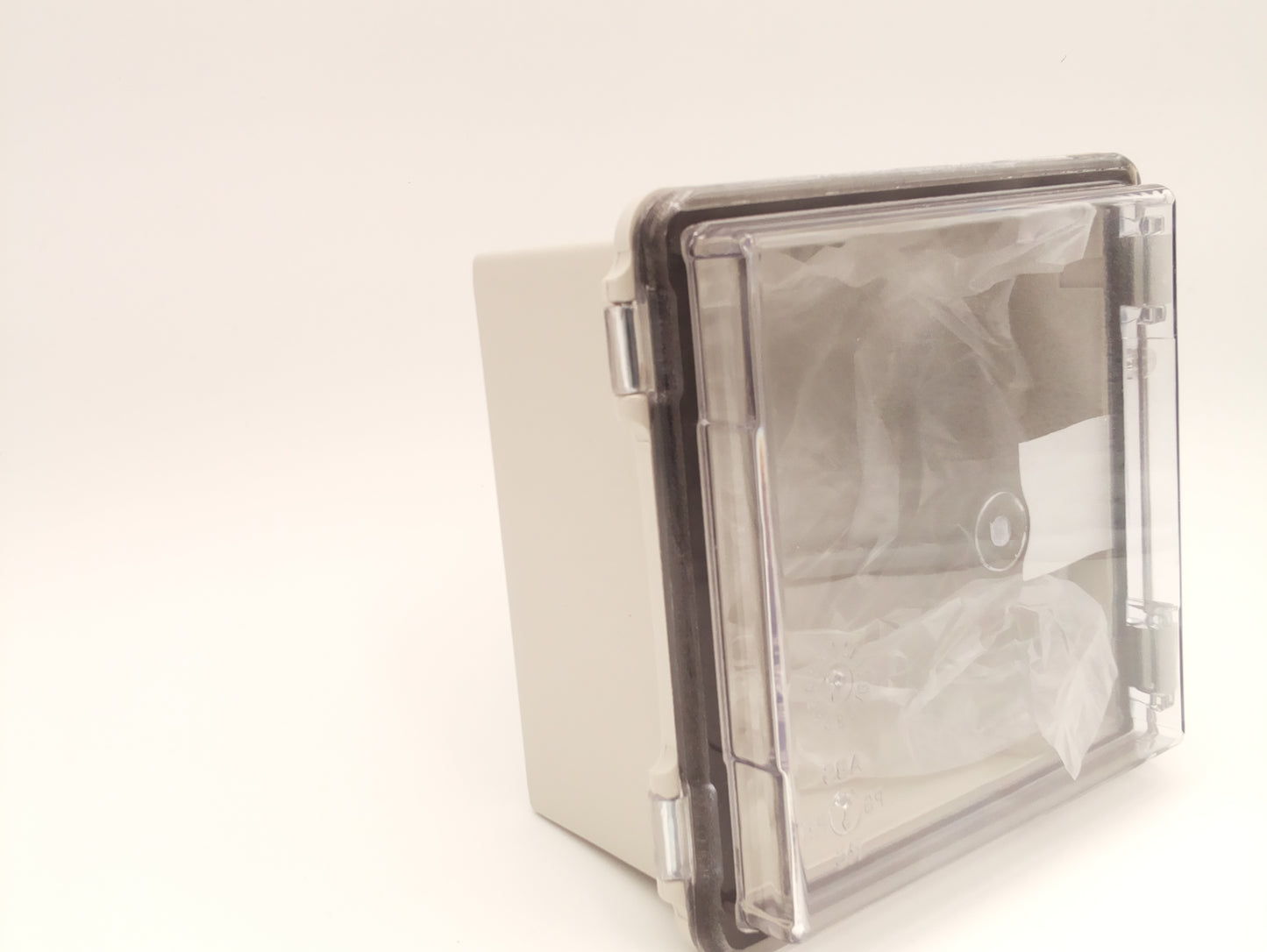

This Junction Box is part of the NBB Series and is made of a blended plastic material. It has a hinged cover design with a latch mechanism and is suitable for wall mounting. The dimensions are approximately 5.9 x 5.9 x 3.57 inches and it has a NEMA Type rating of 4, 4X, 12, and 13. The box has a clear door and a light grey body color. It is RoHS compliant and comes with a clear cover. The IP rating is IP66.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Bud Industries
MPN: NBB-10260
MPN Xref:NBB-10260
This Junction Box is part of the NBB Series and is made of a blended plastic material. It has a hinged cover design with a latch mechanism and is suitable for wall mounting. The dimensions are approximately 5.9 x 5.9 x 3.57 inches and it has a NEMA Type rating of 4, 4X, 12, and 13. The box has a clear door and a light grey body color. It is RoHS compliant and comes with a clear cover. The IP rating is IP66.
| Manufacturer Part Number | NBB-10260 |
| Item Number | NBB-10260 |
| Product Series | NBB Series |
| Material | Blended plastic |
| Composition | Non-Metallic |
| Cover Design | Hinged |
| Latching Mechanism | Latch |
| Nominal Height | 5 " |
| Nominal Width | 5 " |
| Nominal Depth | 3 " |
| RoHS | Yes |
| Net Weight | 1.09 lbs |
| Gross Weight | 1.09 lbs |
| Dimensions (H x W x D) | 5.9 x 5.9 x 3.57" |
| NEMA Type | 4, 4X, 12 and 13 |
| Inner Panel | Sold Separately |
| Door Design | Hinged (Single Door) |
| Locking Feature | Latch |
| Mounting | Wall |
| Finish | ANSI 65 Gray |
| Standards | UL, IEC and RoHS |
| Door | Clear |
| Body Color | Light Grey |
| Cover Color | Clear |
| Approximate Depth | 4" (102mm) |
| Approximate Height | 6" (152mm) |
| Approximate Width | 7" (178mm) |
| Color | Gray, Clear Cover/Door |
| Configuration | Without Knock-Outs |
| Cover Material | Polycarbonate |
| Depth | 3.57 in |
| Dimensions | 5.9 x 6.9 x 3.5 . ; 150 x 175 x 89 in ; mm |
| Enclosure Mounting | Wall Mount |
| IP Rating | IP66 |
| Length | 5.9 in |
| NEMA Rating | NEMA 4X |
| Series | NBB Series |
| Size | Small |
| Special Features | Hinged ; Clear Door |
| Type | Junction Box |
| Width | 0 in |
| Part Status | Active |
| Container Type | Box |
| Size / Dimension | 5.904" L x 5.904" W (149.96mm x 149.96mm) |
| Height | 3.568" (90.63mm) |
| Area (L x W) | 34.8in? (225cm?) |
| Design | Hinged Door, Lid |
| Thickness | 0.133" (3.38mm) |
| Features | Non-Metallic Hinges, PCB Supports |
| Ratings | IP66, NEMA 1,2,3,3R,4,4X,12,13 |
| Material Flammability Rating | UL94 5VB, UL94 V-0 |
| Weight | 1.2 lbs (544.3 g) |
